Engine Immobiliser System (w/o Smart Key System) (Except TMC Made): Notes

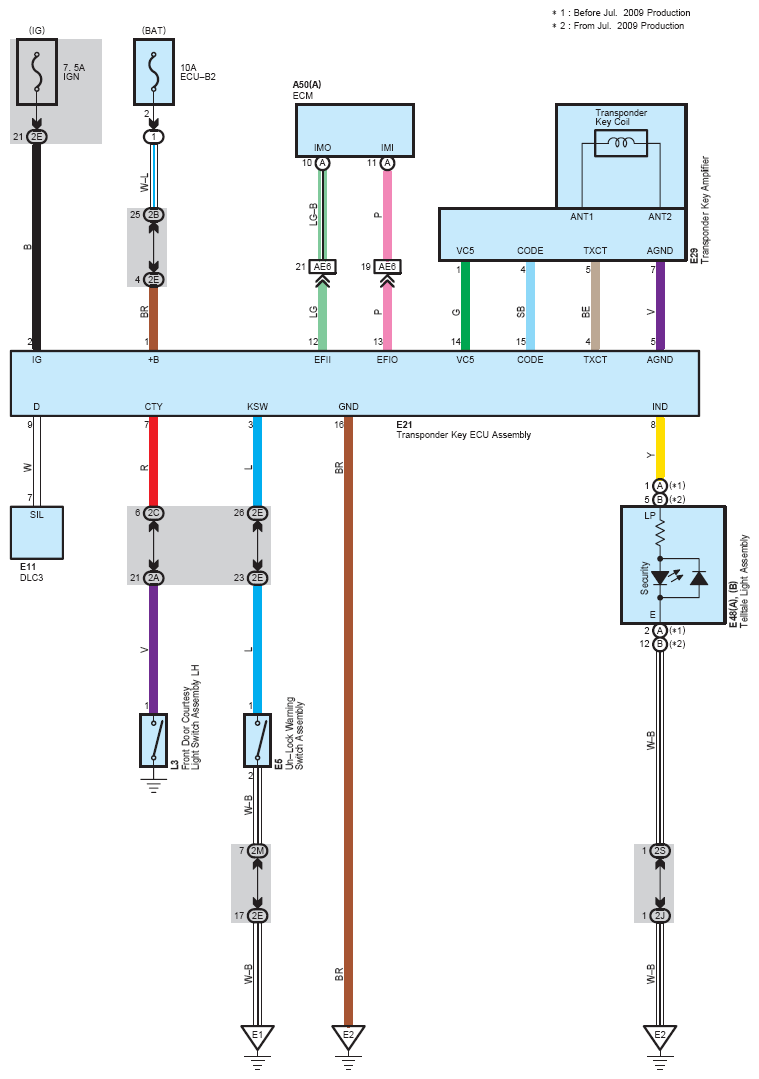

Fig 1: Engine Immobiliser System [W/O Smart Key System] (Except TMC Made) - Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
