Toyota
›
2010
›
Corolla XLE
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Shift Lock (TMC Made)
›
Notes
Shift Lock (TMC Made): Notes

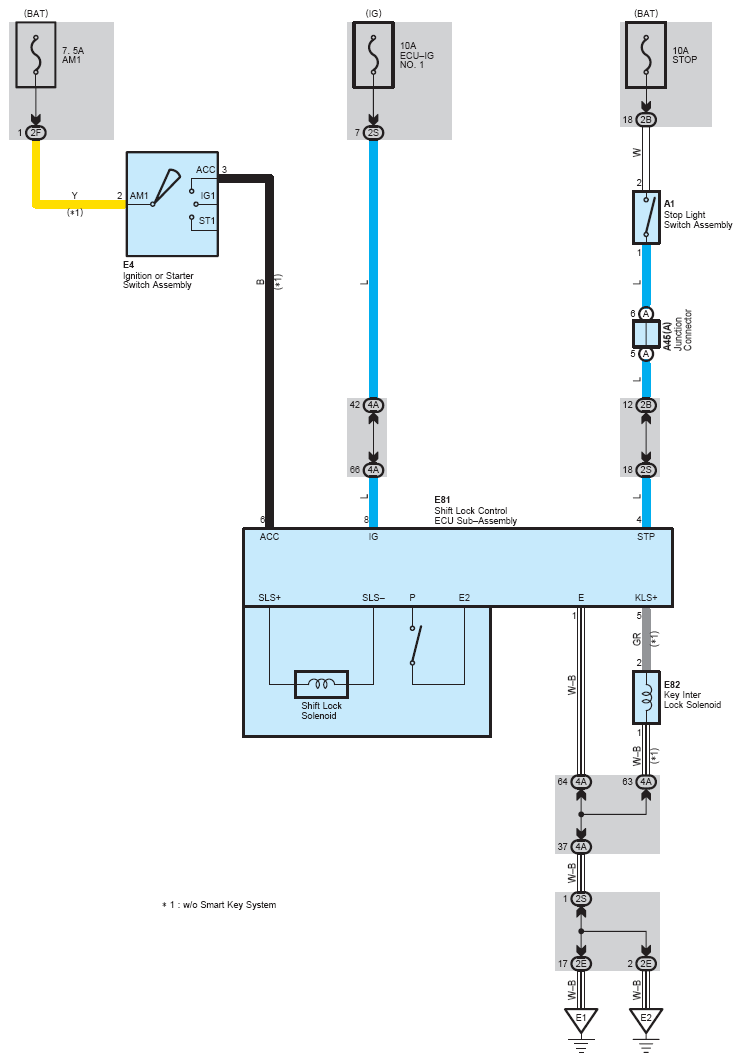

Fig 1: Shift Lock (TMC Made) - Circuit Diagram
