System Diagram

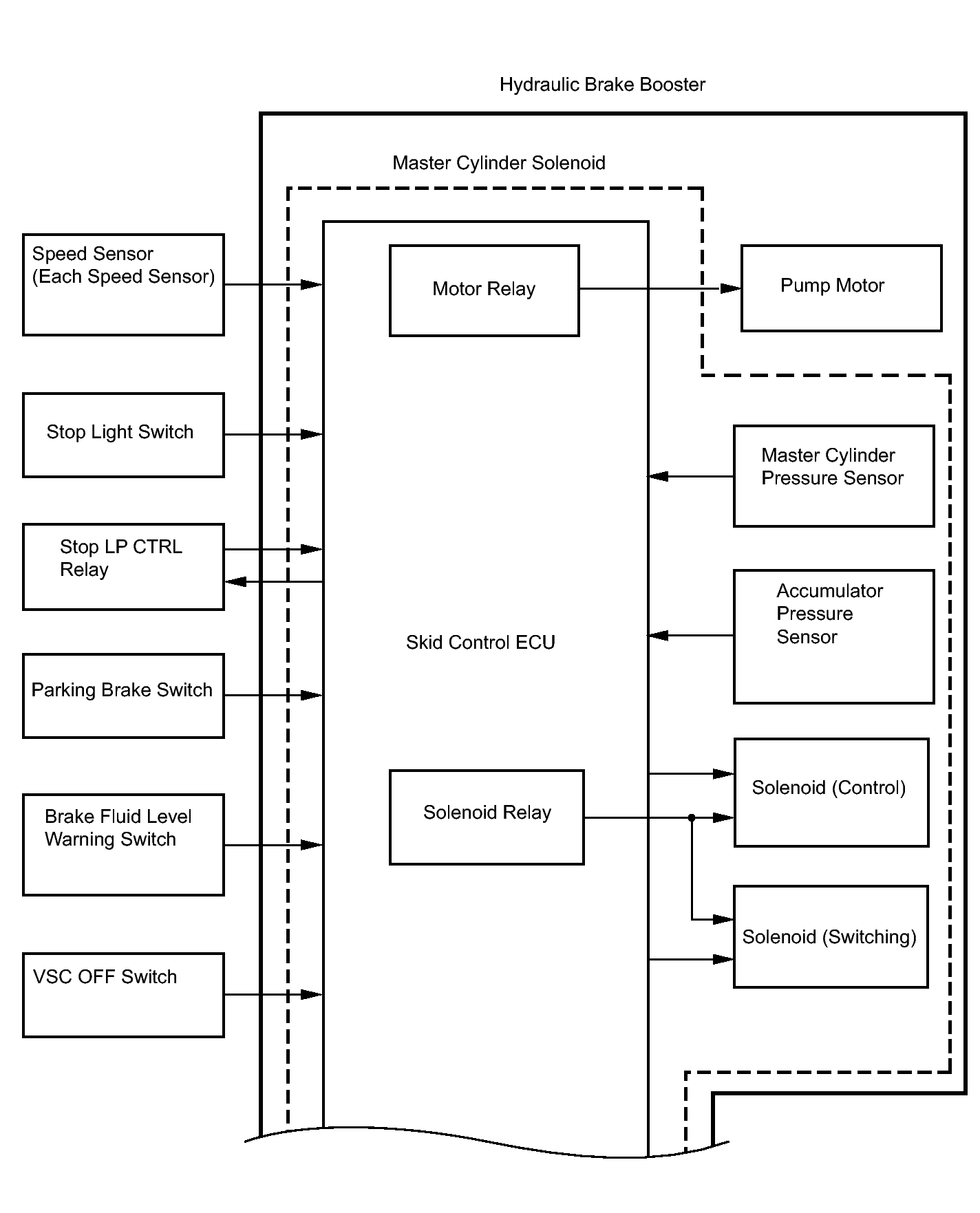

Fig 1: Skid Control ECU System Diagram (1 Of 3)

GTY183070

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

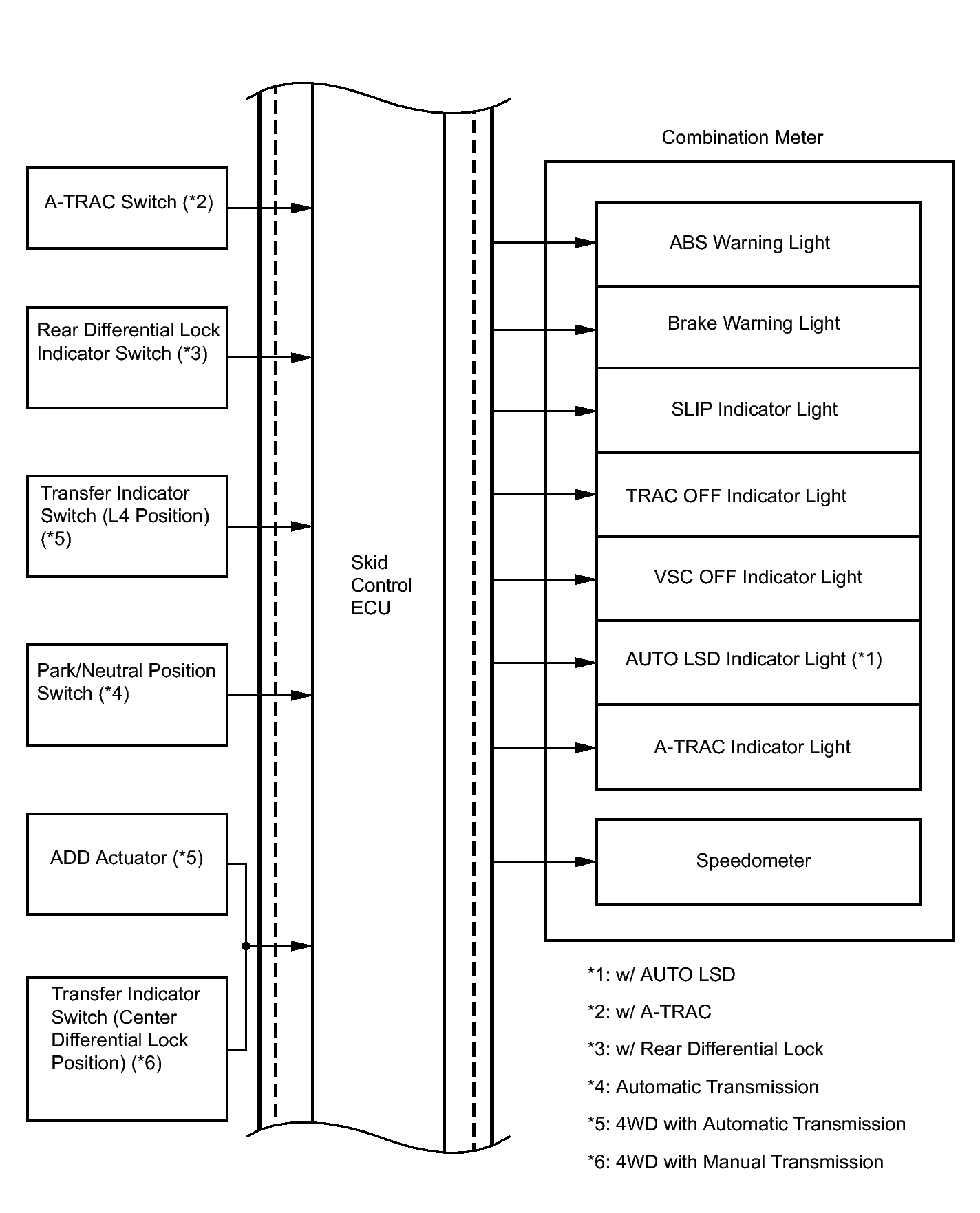

Fig 2: Skid Control ECU System Diagram (2 Of 3)

GTY168429

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

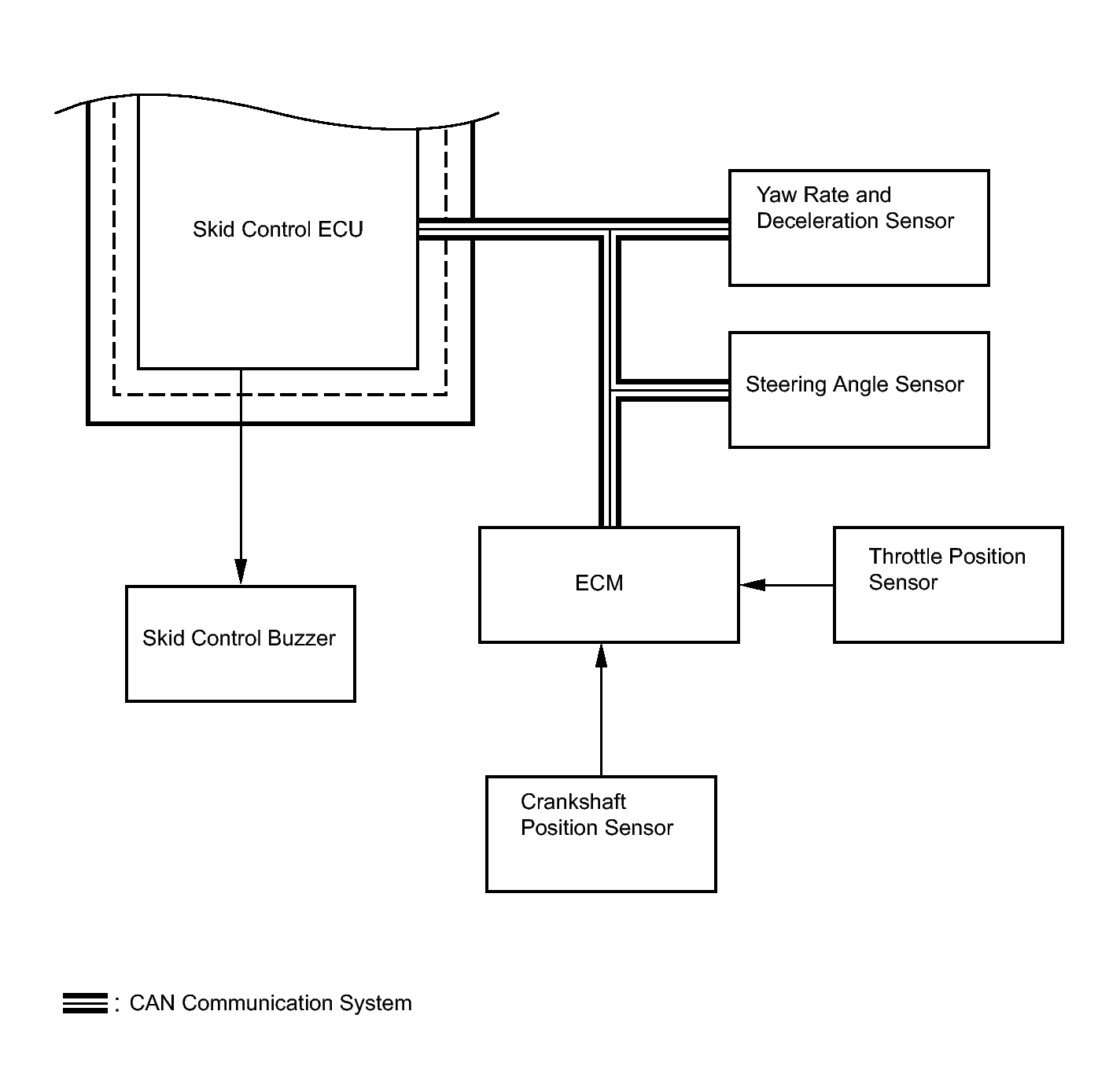

Fig 3: Skid Control ECU System Diagram (3 Of 3)

GTY202373

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Transmitting ECU (Transmitter)	Receiving ECU	Signals	Communication Method
ECM	Skid control ECU	Throttle position signal	CAN communication system
ECM	Skid control ECU	Engine speed signal	CAN communication system
ECM	Skid control ECU	Accelerator pedal position signal	CAN communication system
ECM	Skid control ECU	Intake temperature signal	CAN communication system
Yaw rate and deceleration sensor	Skid control ECU	Yaw rate and deceleration signal	CAN communication system
Steering angle sensor	Skid control ECU	Steering angle signal	CAN communication system
Skid control ECU	ECM	Throttle opening angle request signal	CAN communication system
