Parts Location: Illustration

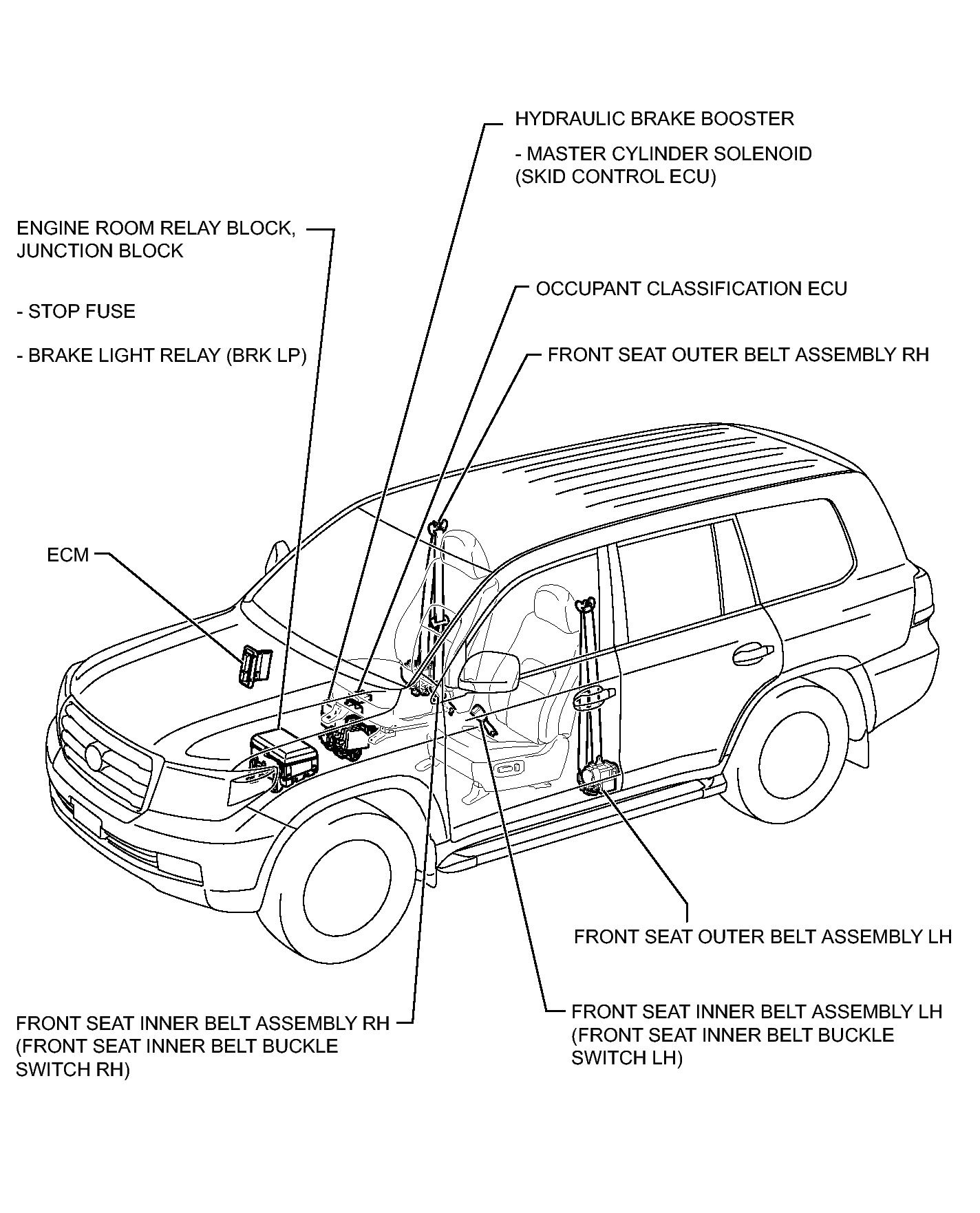

Fig 1: Identifying Pre-Collision System Components (1 Of 2)
GTY216902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

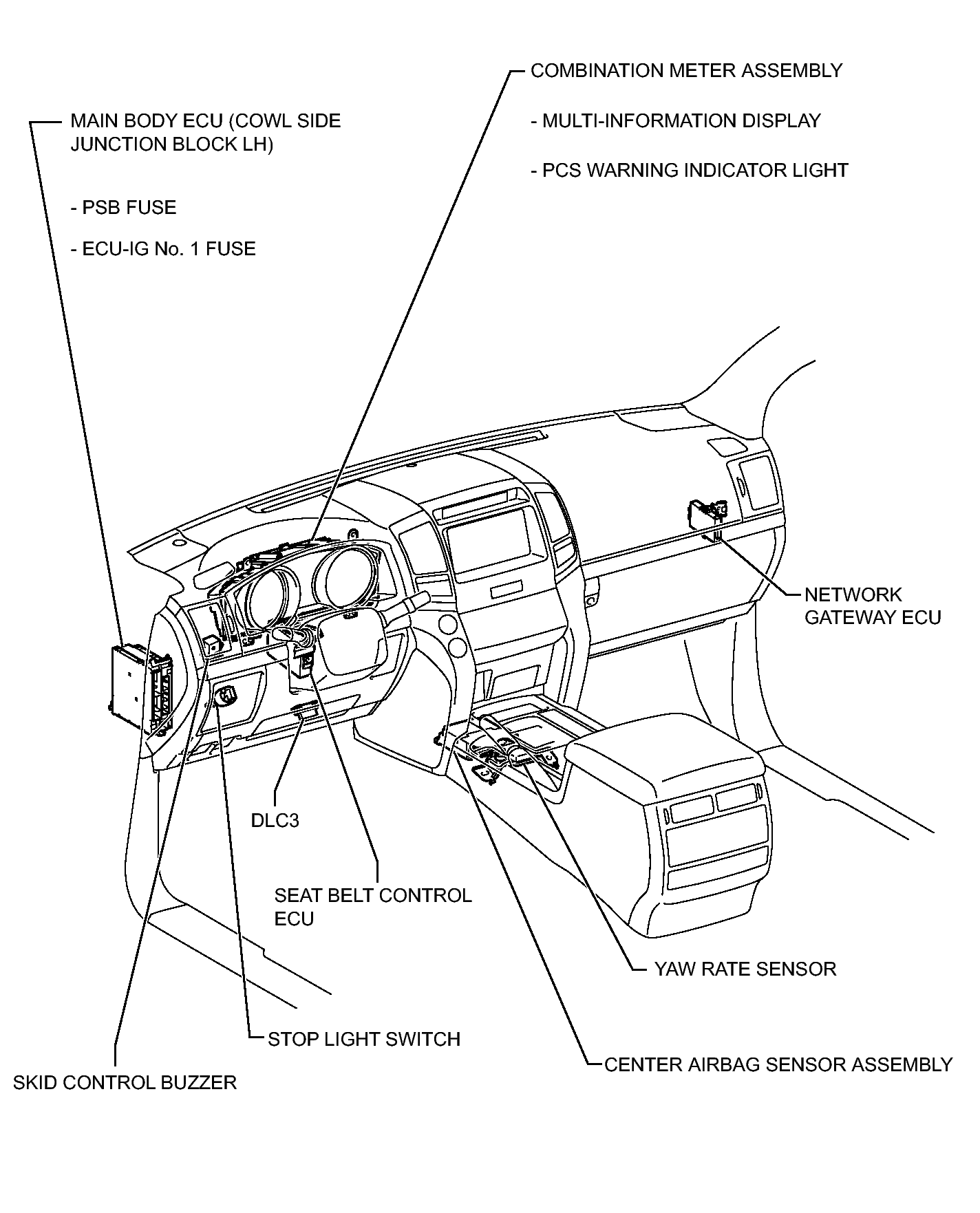

Fig 1: Identifying Pre-Collision System Components (2 Of 2)
GTY246756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
