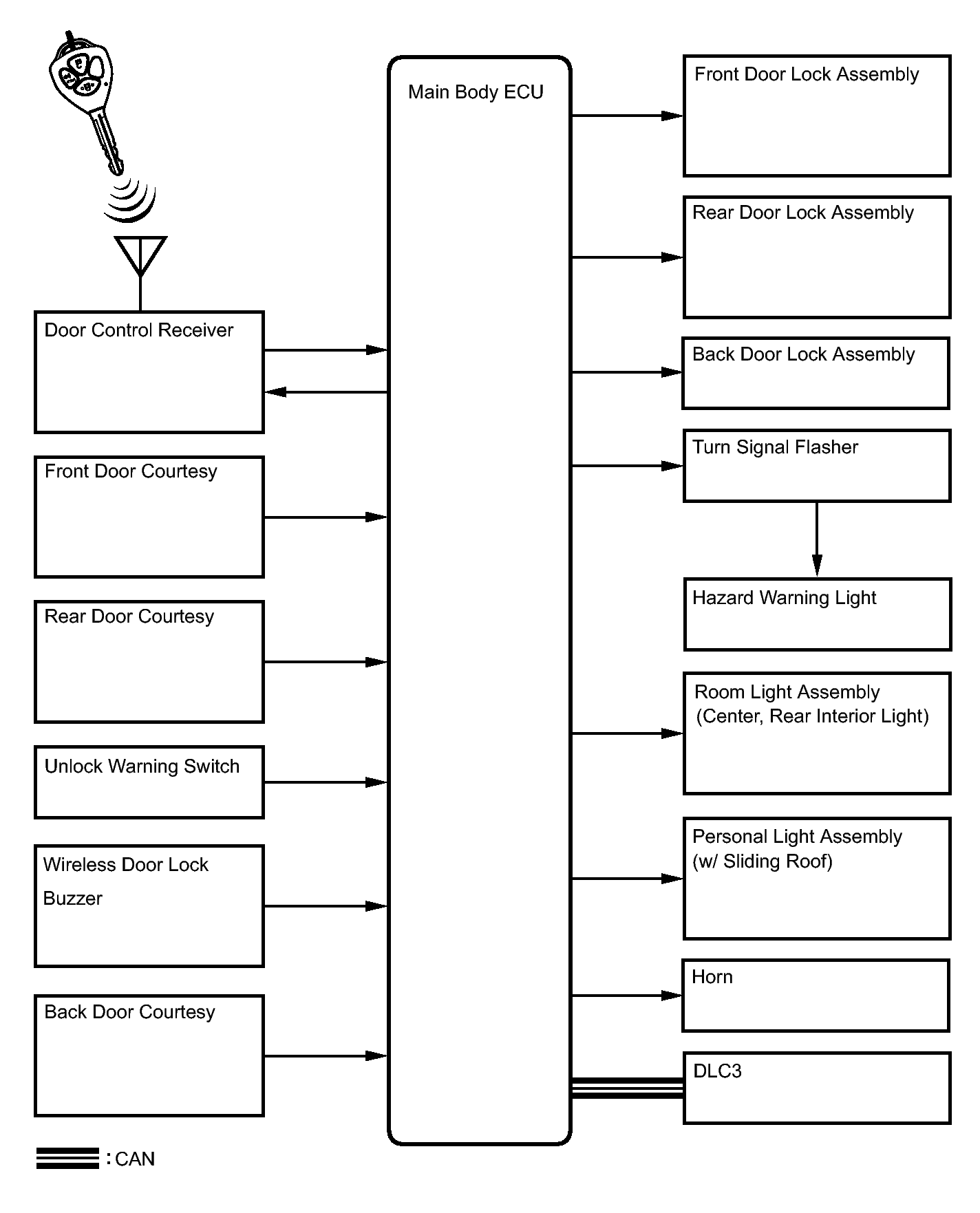

Home › Toyota › 2010 › Matrix Base, Automatic › Repair and Diagnosis › Body & Frame › Door Locks › Wireless Door Lock Control System (Diagnostics - Introduction) › Wireless Door Lock Control System › System Diagram › System Diagram
