Front Passenger Side Power Window Does Not Operate With Front Passenger Side Power Window Switch: Wiring Diagram

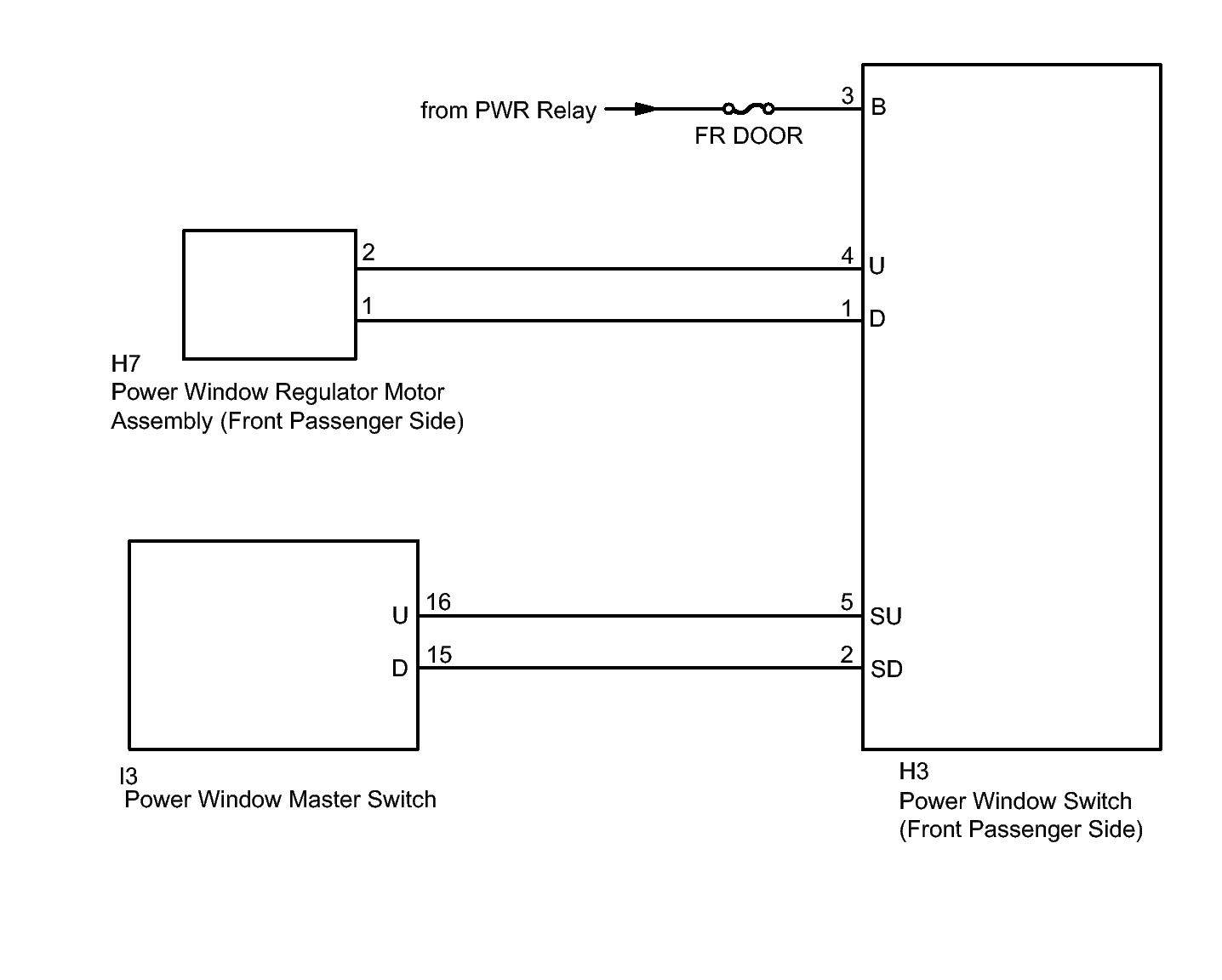

Fig 1: Power Window Switch (Front Passenger Side) - Wiring Diagram
GTY213575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
