Power Window Control System (Diagnostics - Introduction)
›
Power Window Control System
›
Symptom Tests
›
Remote Up/Down Function Does Not Operate
›
Wiring Diagram
Remote Up/Down Function Does Not Operate: Wiring Diagram

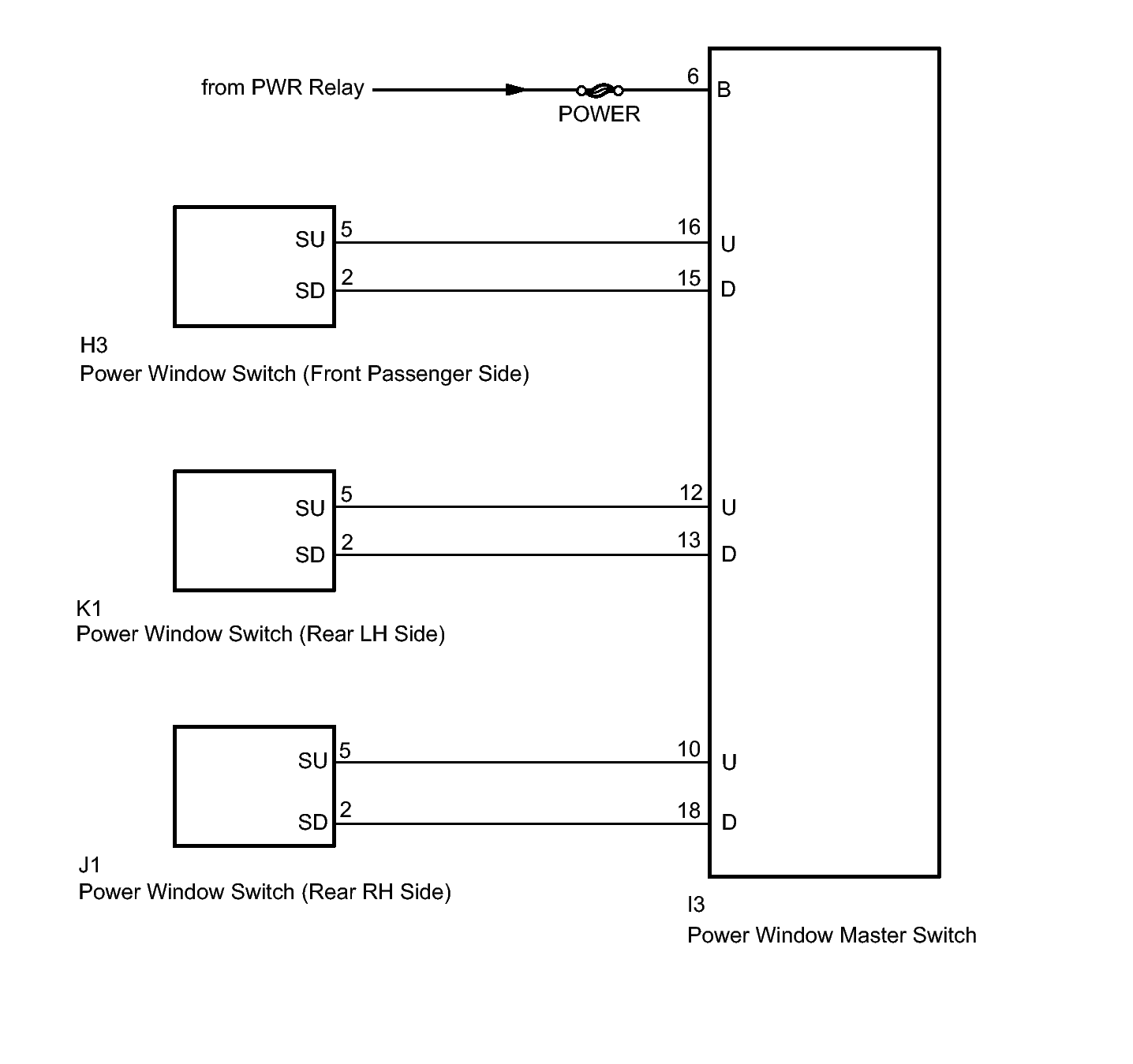

Fig 1: Remote Up/Down Function Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
