Toyota
›
2010
›
Matrix Base, Automatic
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Back-Up Light
›
Notes
Back-Up Light: Notes

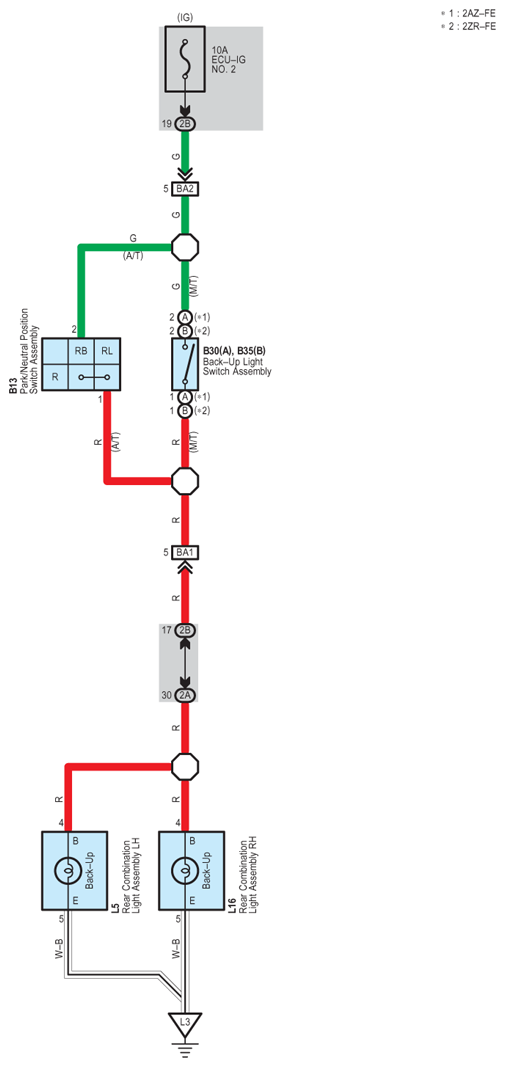

Fig 1: Back-Up Light - Circuit Diagram
