Cooling Fan (2ZR-FE)
›
Notes
Cooling Fan (2ZR-FE): Notes

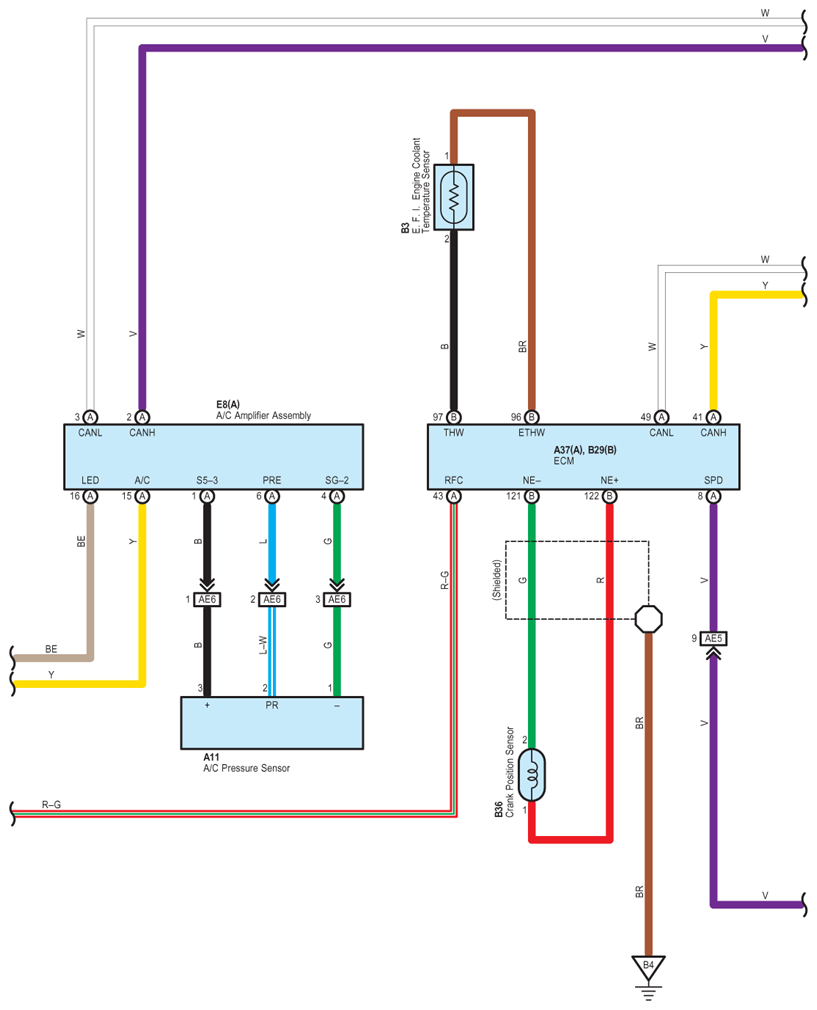

Fig 1: Cooling Fan (2ZR-FE) - Circuit Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

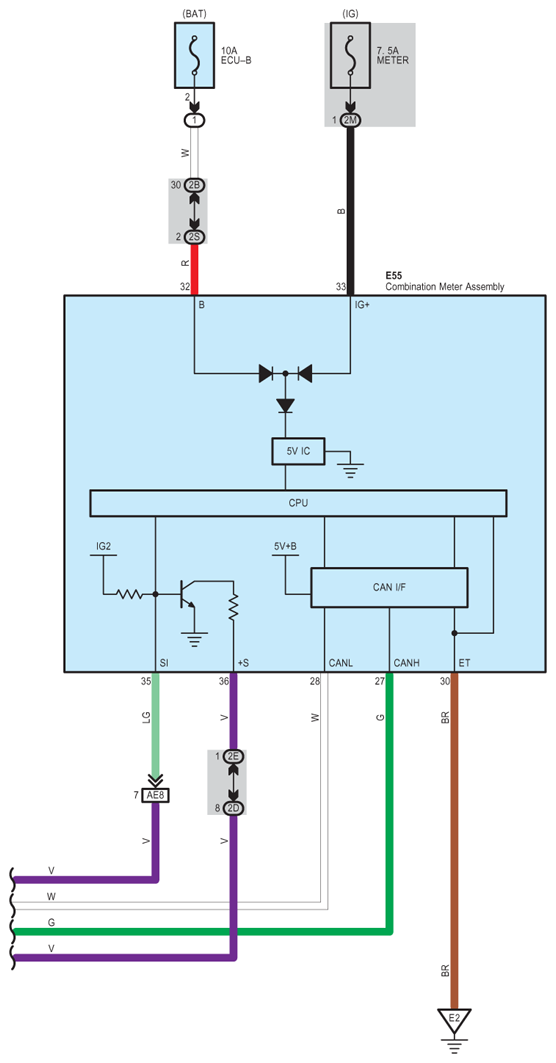

Fig 2: Cooling Fan (2ZR-FE) - Circuit Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

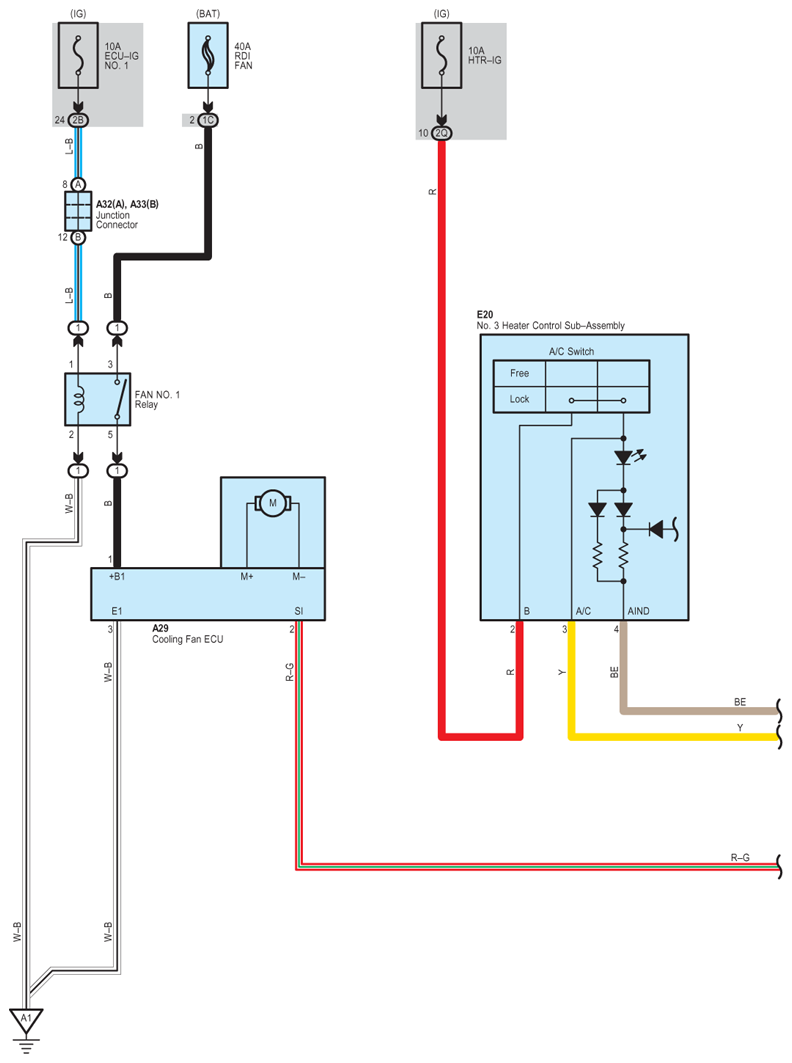

Fig 3: Cooling Fan (2ZR-FE) - Circuit Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

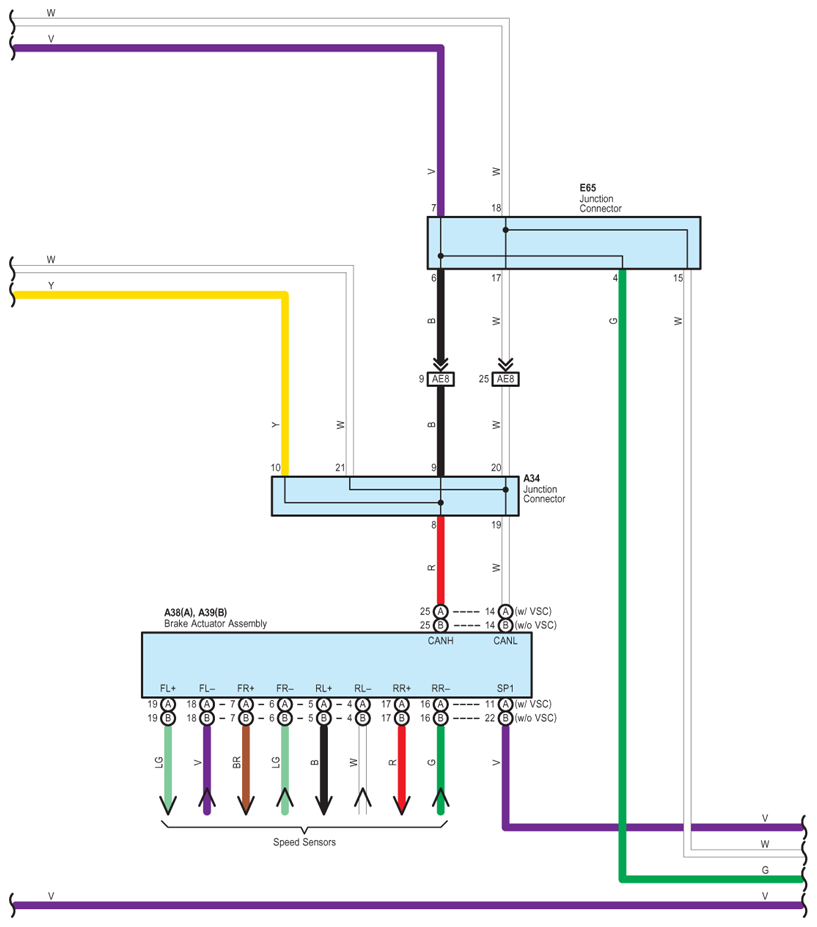

Fig 4: Cooling Fan (2ZR-FE) - Circuit Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
