System Diagram

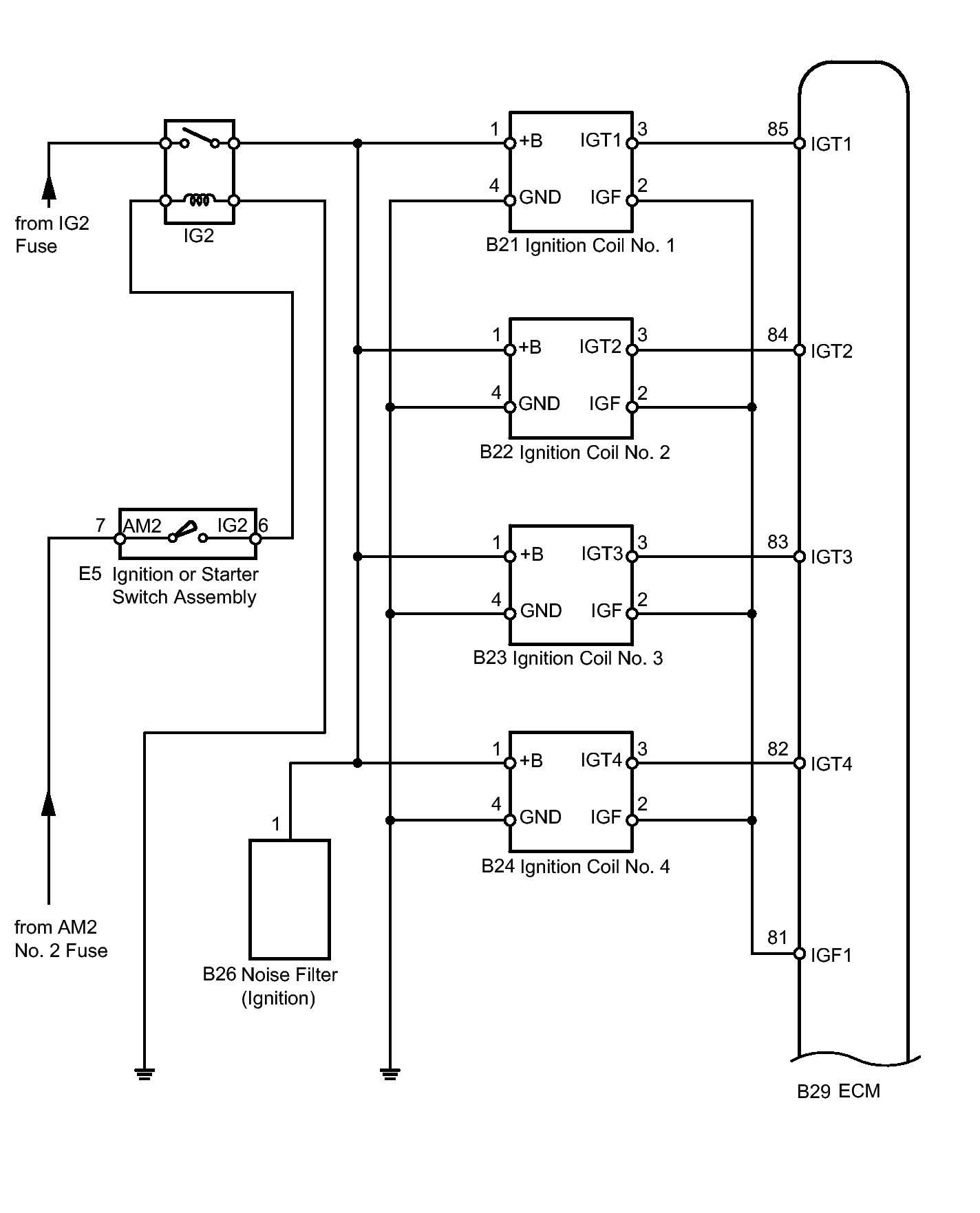

Fig 1: Ignition System - System Diagram (1 Of 2)
GTY225260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

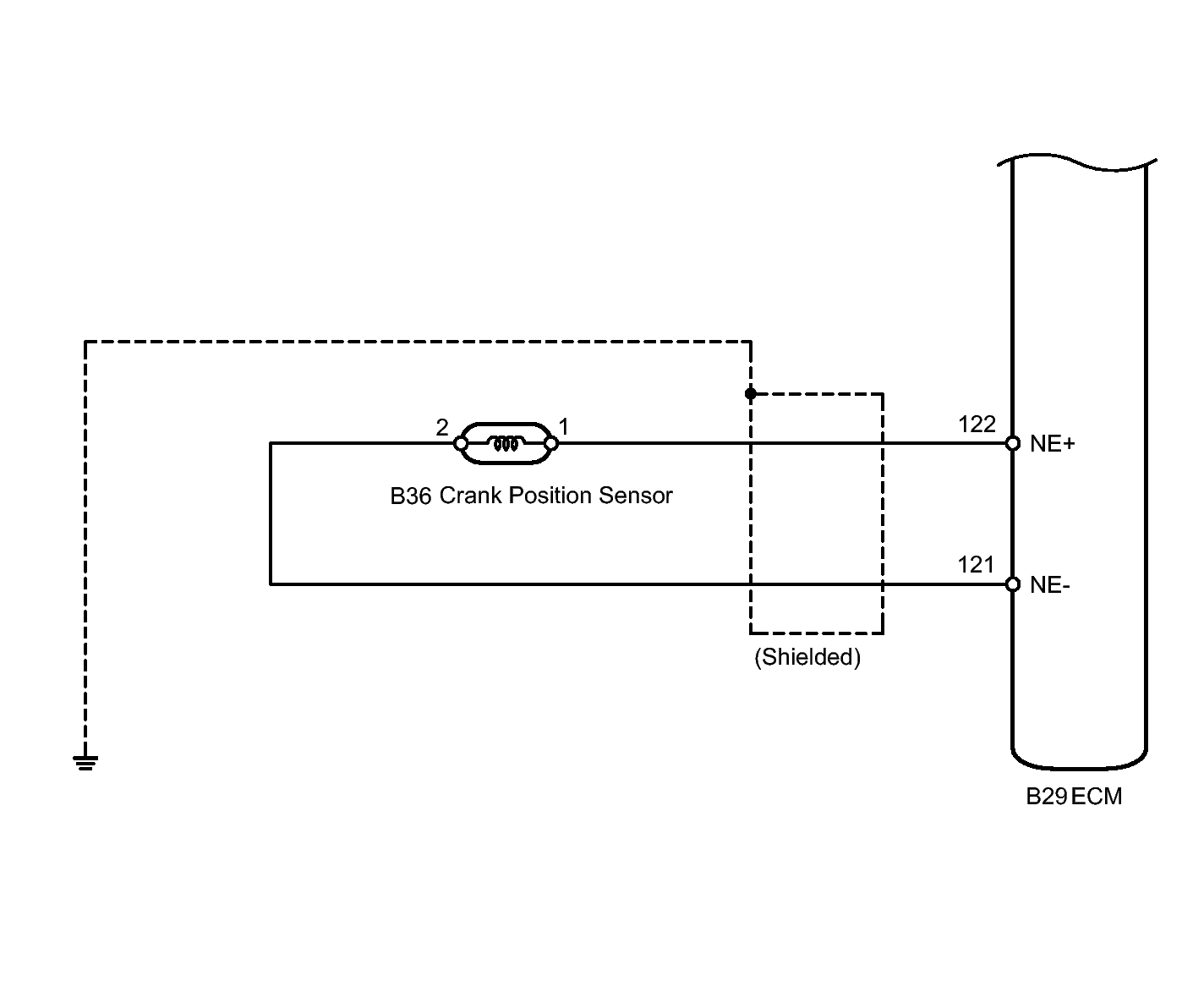

Fig 2: Ignition System - System Diagram (2 Of 2)
GTY238418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
