Power Seat: Notes

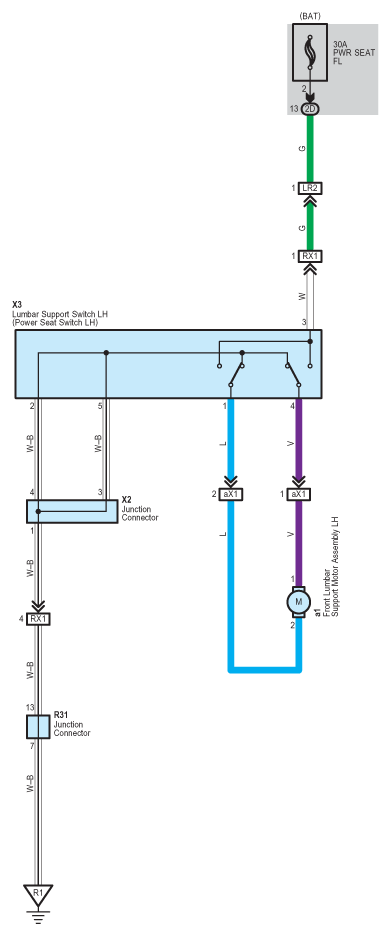

Fig 1: Power Seat - Circuit Diagram
G07570835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
