System Diagram

Fig 1: SFI System Diagram (1 Of 4)
GTY216225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

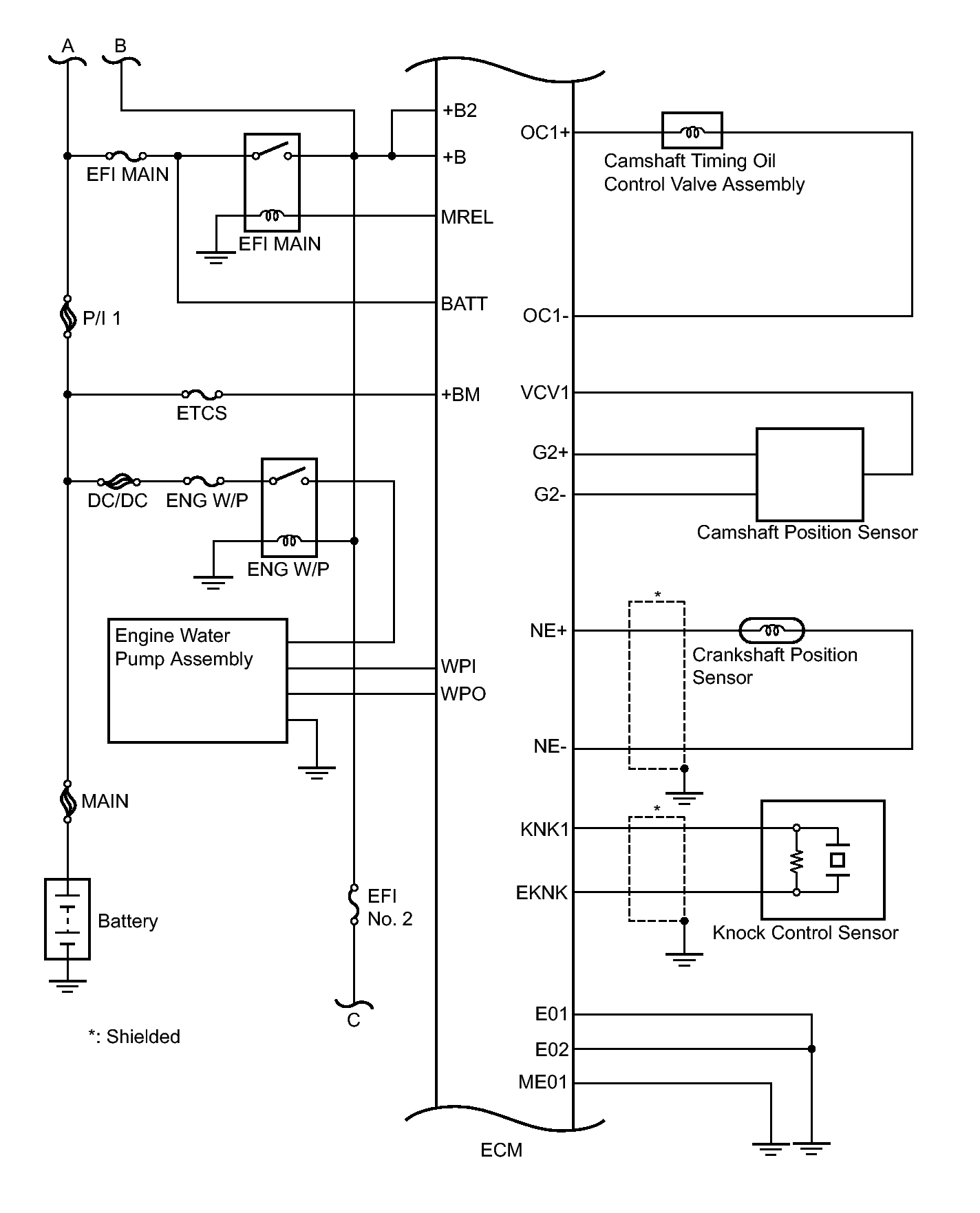

Fig 2: SFI System Diagram (2 Of 4)
GTY219008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

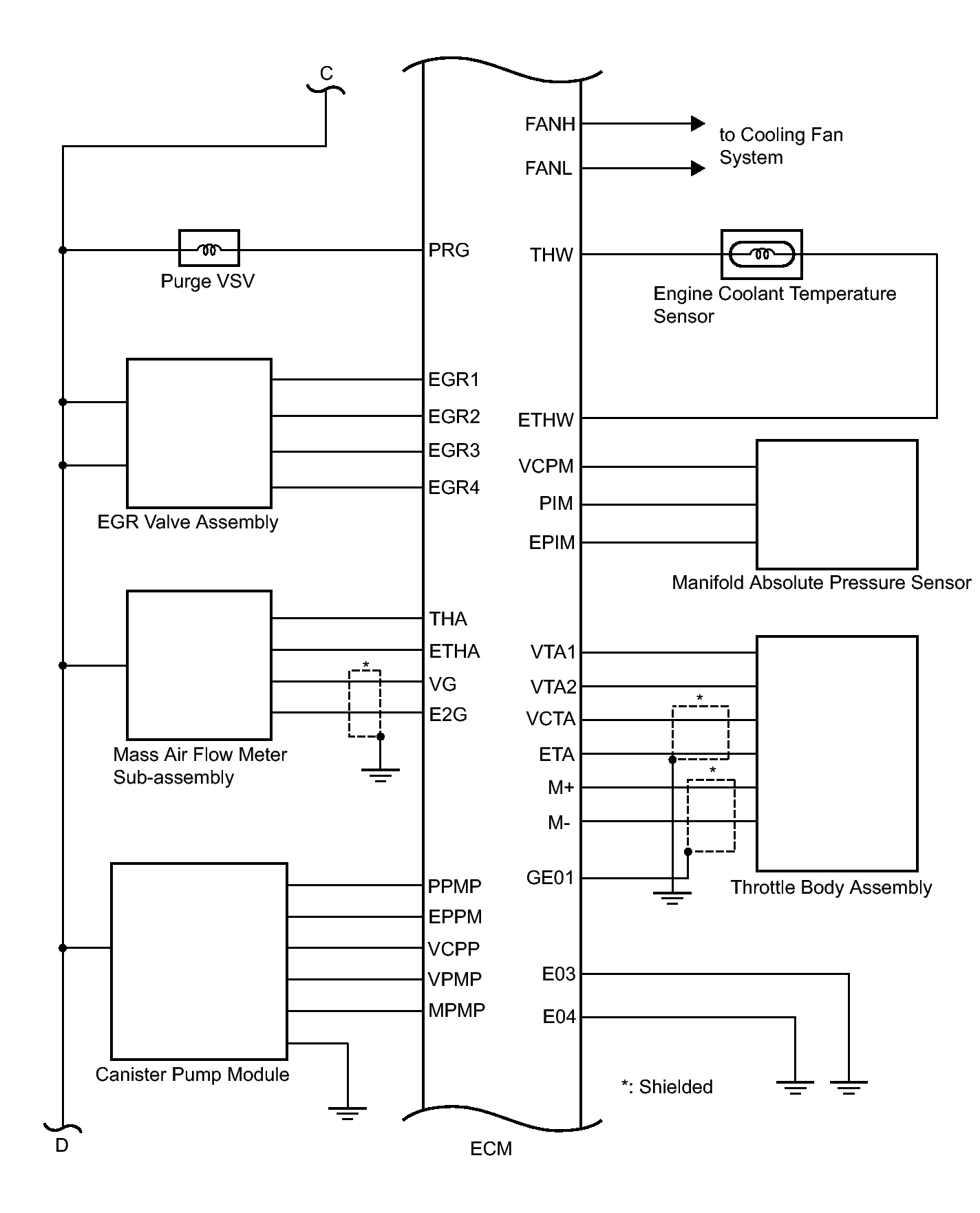

Fig 3: SFI System Diagram (3 Of 4)
GTY213480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

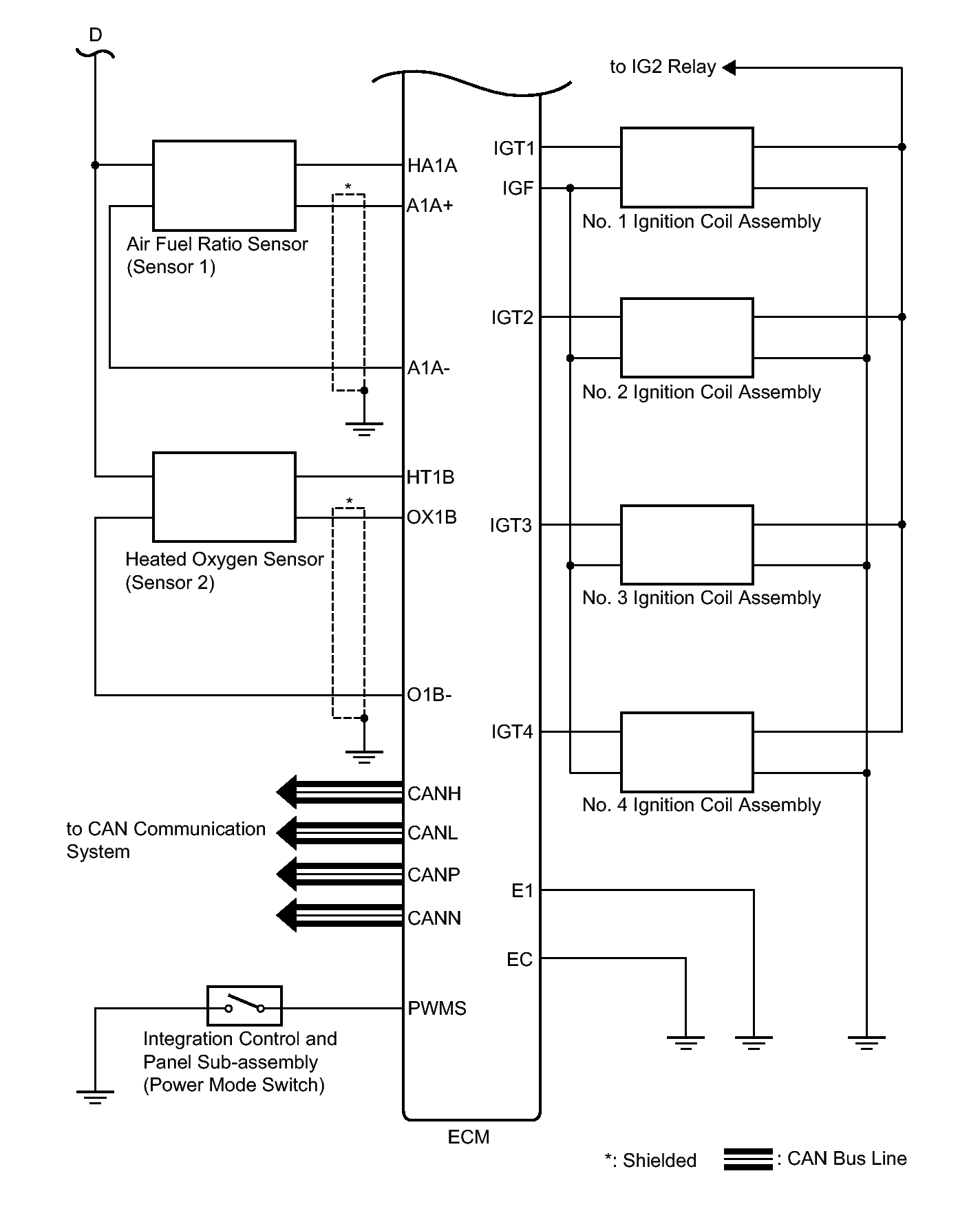

Fig 4: SFI System Diagram (4 Of 4)
GTY211216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
