OEM System Circuits (PHV): Horn: Notes

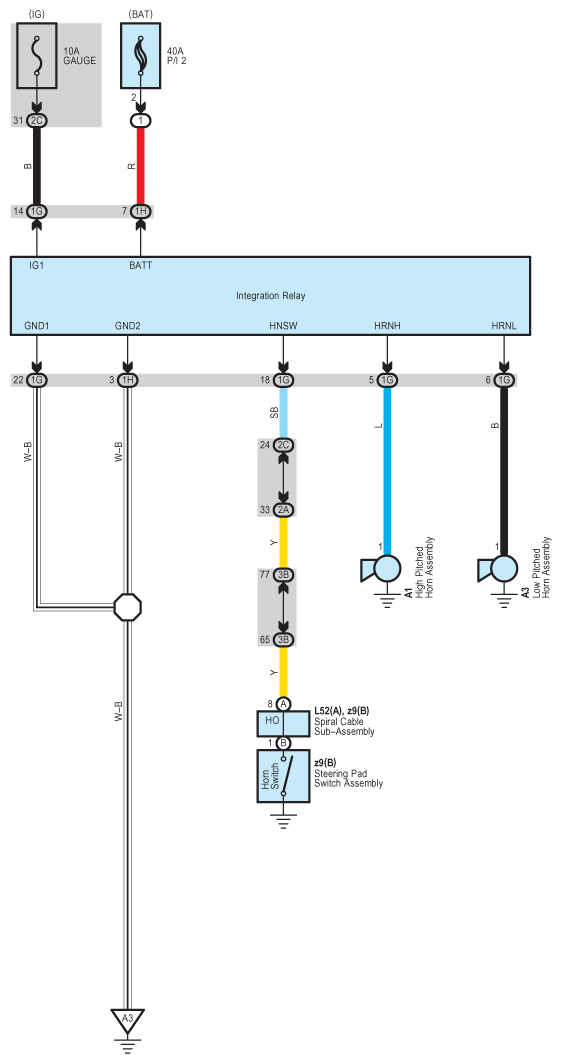

Fig 1: Horn - Circuit Diagram
G07624782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
