Sliding Roof: Notes

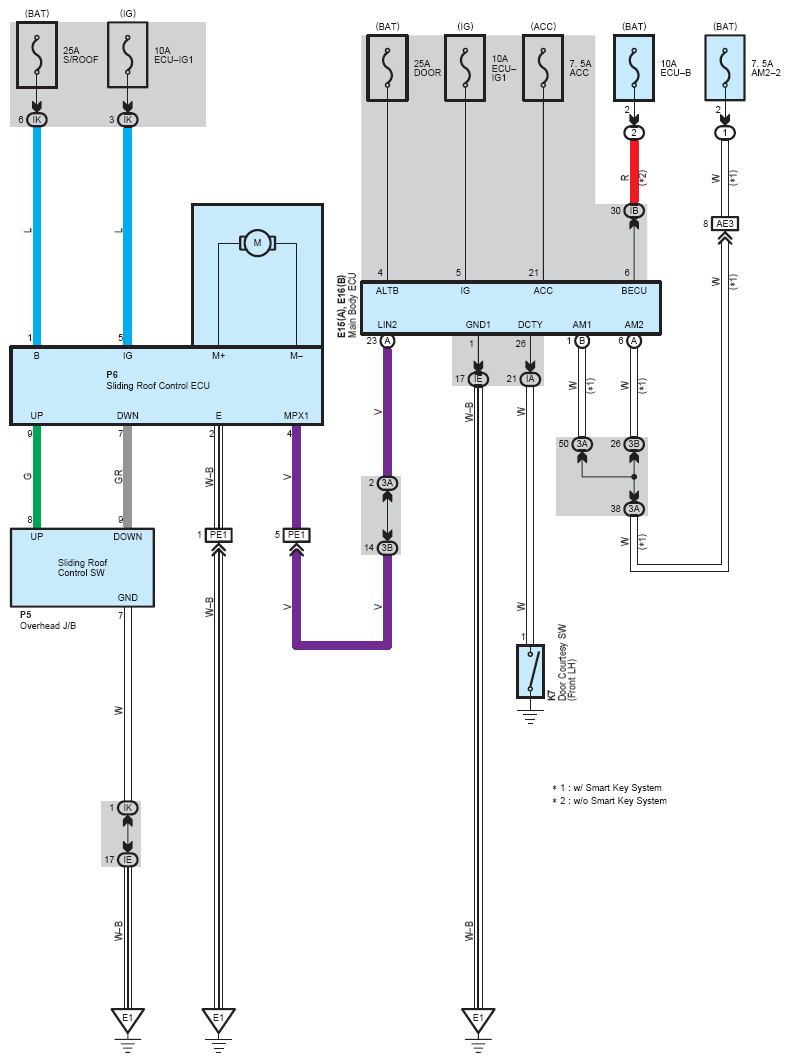

Fig 1: Sliding Roof - Circuit Diagram

G07557183

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
