Camshaft Oil Control Valve: Components: Illustration

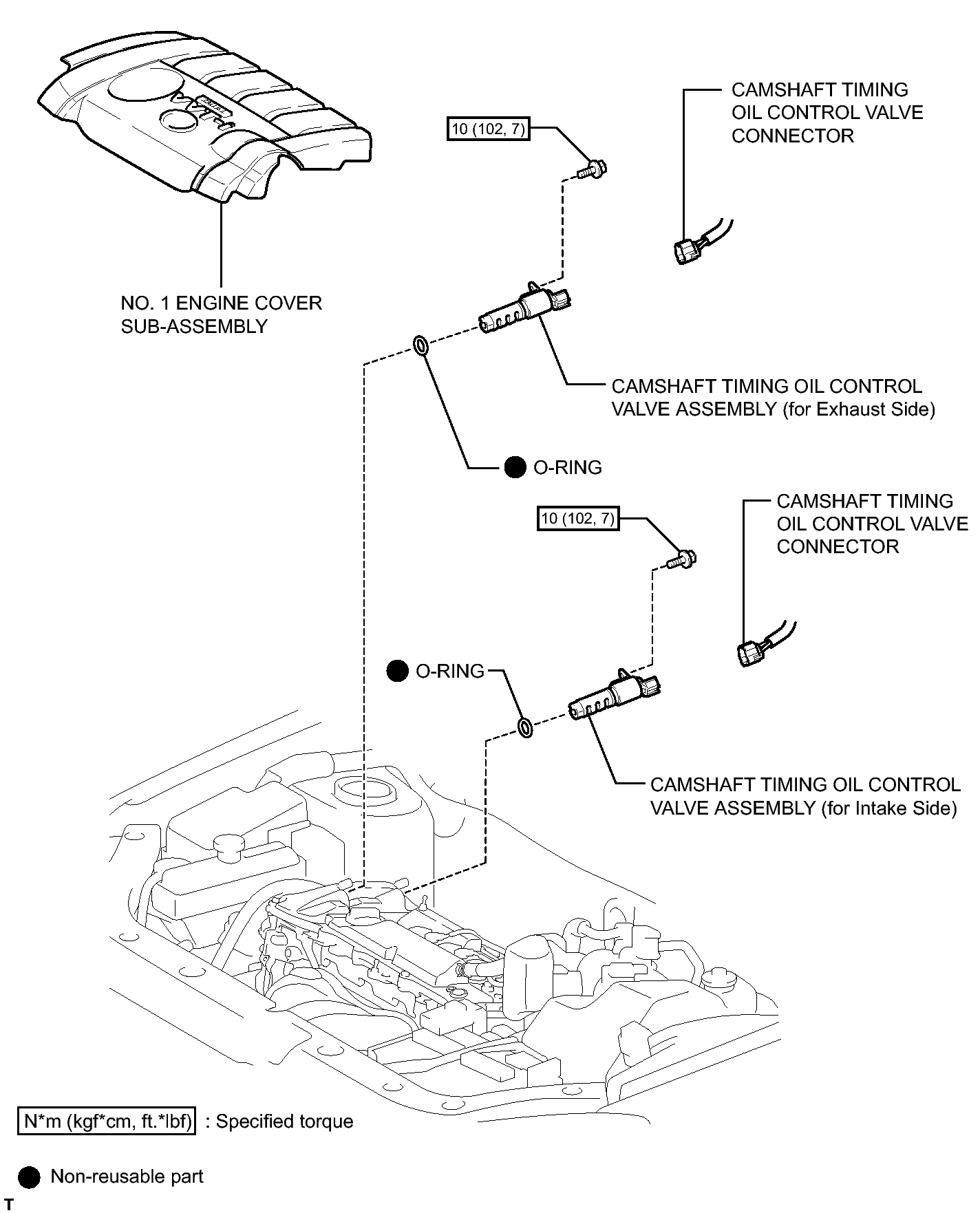

Fig 1: Identifying Camshaft Timing Oil Control Valve Assembly Replacement Components And Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
