Engine Control System (2AR-FE) (Service Information): ECM: Components: Illustration

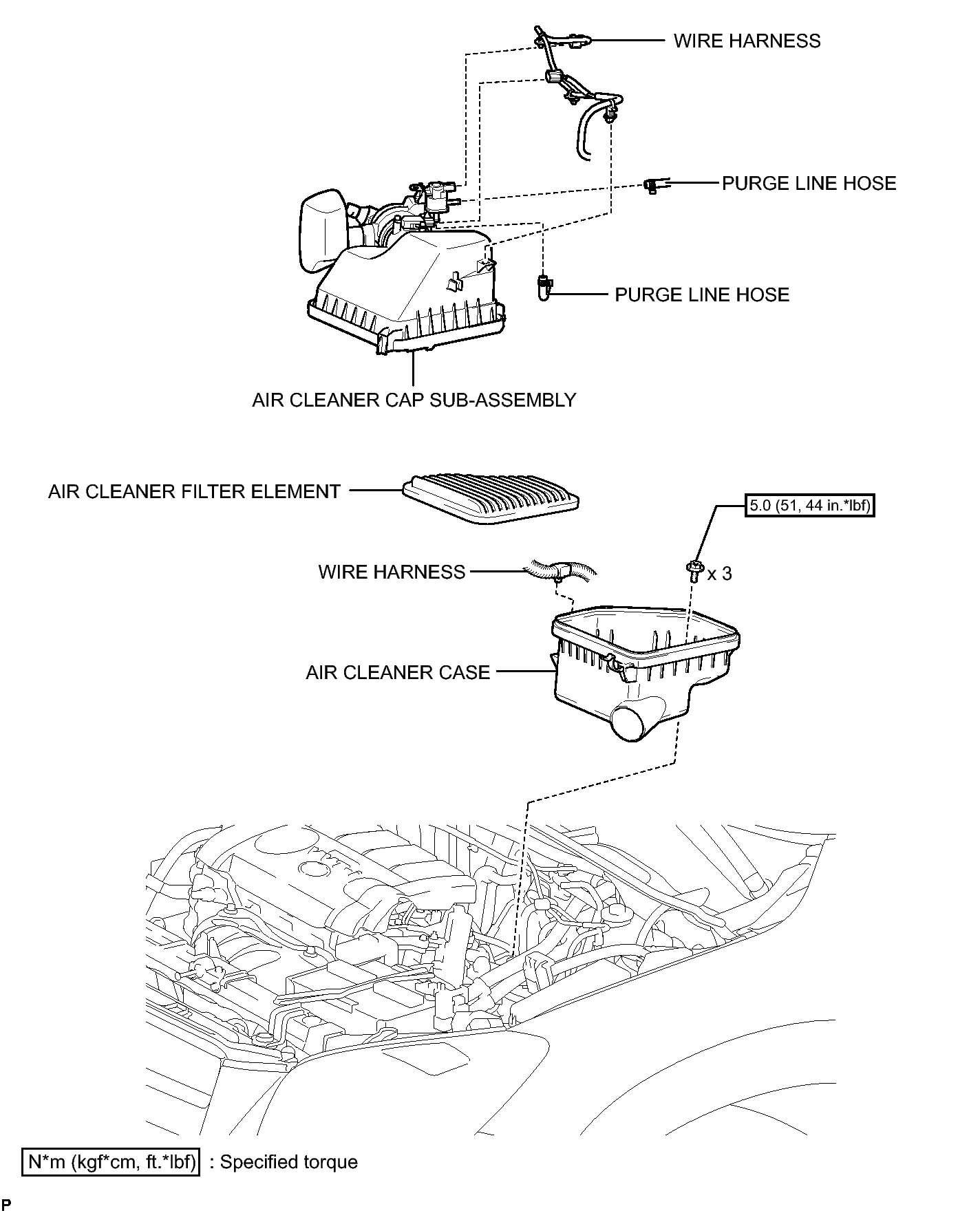

Fig 1: Identifying ECM Replacement Components And Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

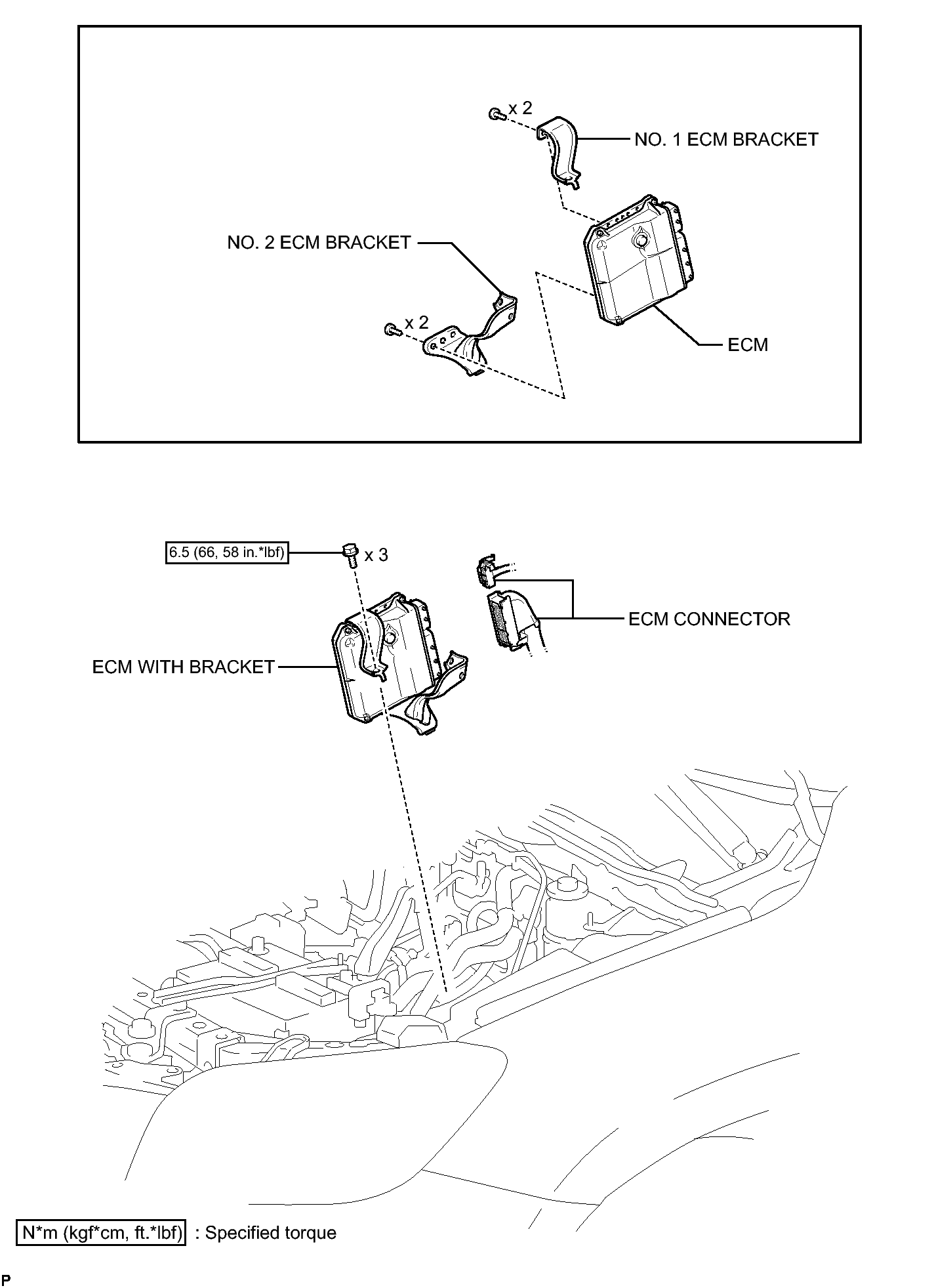

Fig 1: Identifying ECM Replacement Components And Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
