Engine Control System (3UR-FBE) (Service Information)
›
ECM
›
Components
›
Illustration
Engine Control System (3UR-FBE) (Service Information): ECM: Components: Illustration

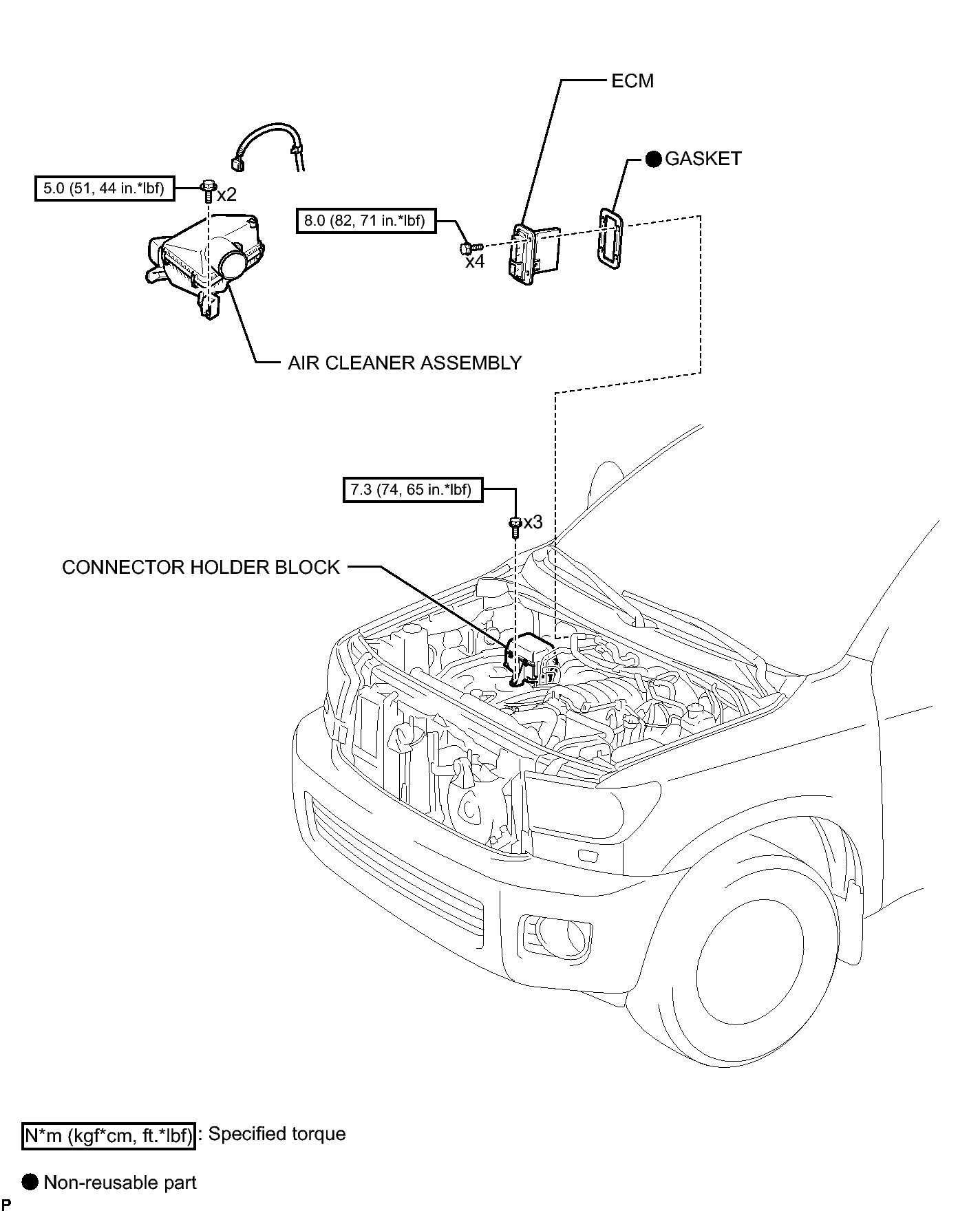

Fig 1: Identifying ECM Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
