Engine Control System (3UR-FBE) (Service Information)
›
Crankshaft Position Sensor
›
Components
›
Illustration
Crankshaft Position Sensor: Components: Illustration

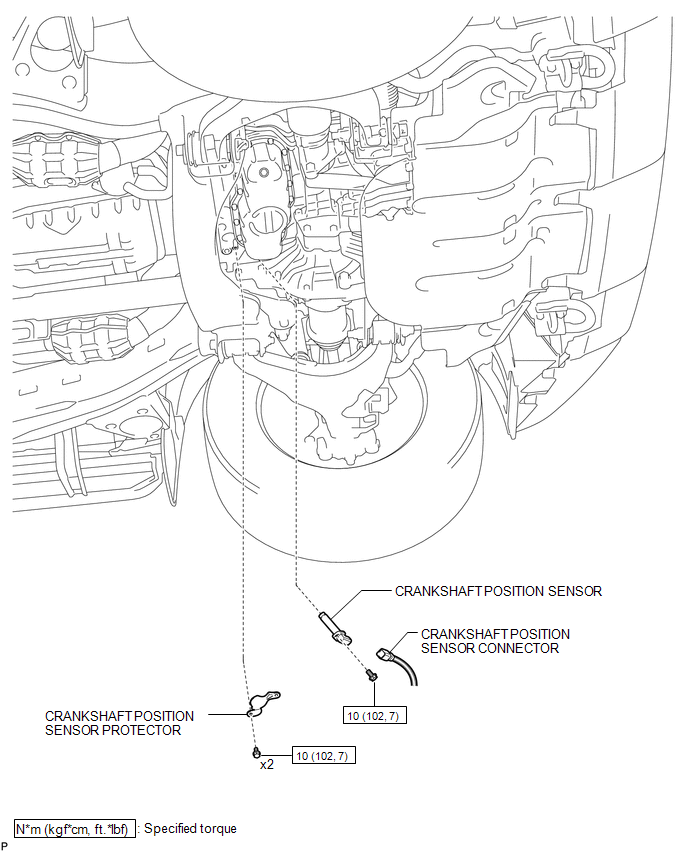

Fig 1: Identifying Crankshaft Position Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
