Mirror Heater: Notes

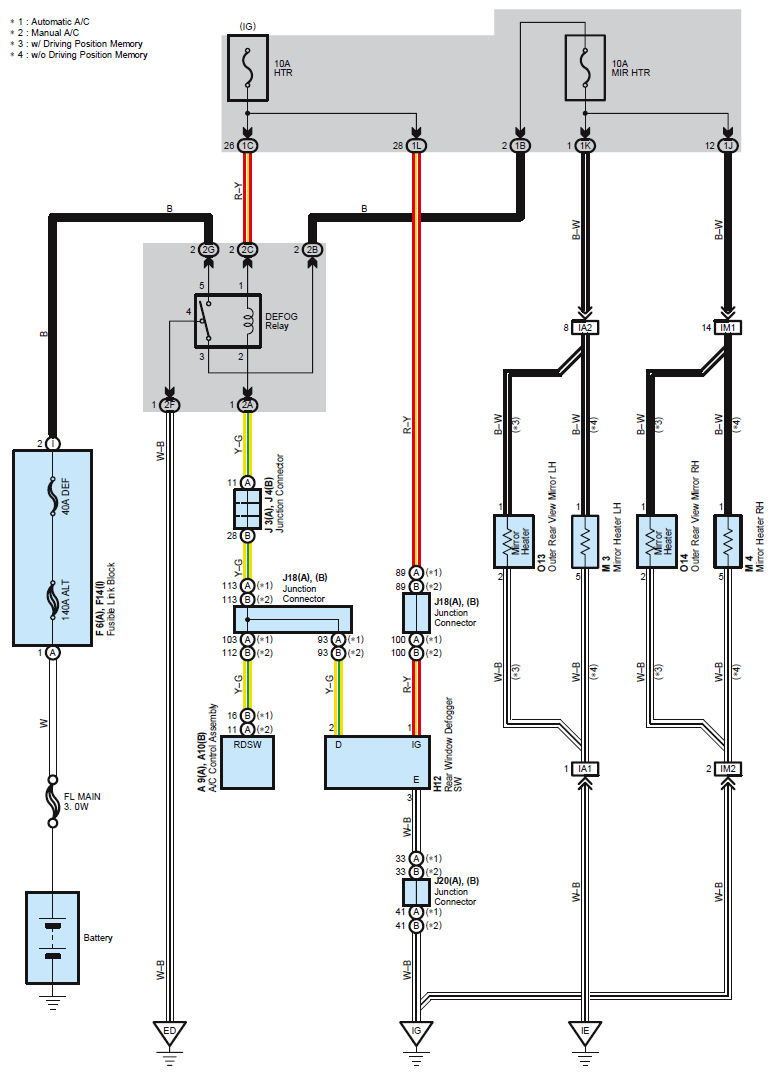

Fig 1: Mirror Heater - Circuit Diagram
G07596505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
