Power Window (w/ Jam Protection): Notes

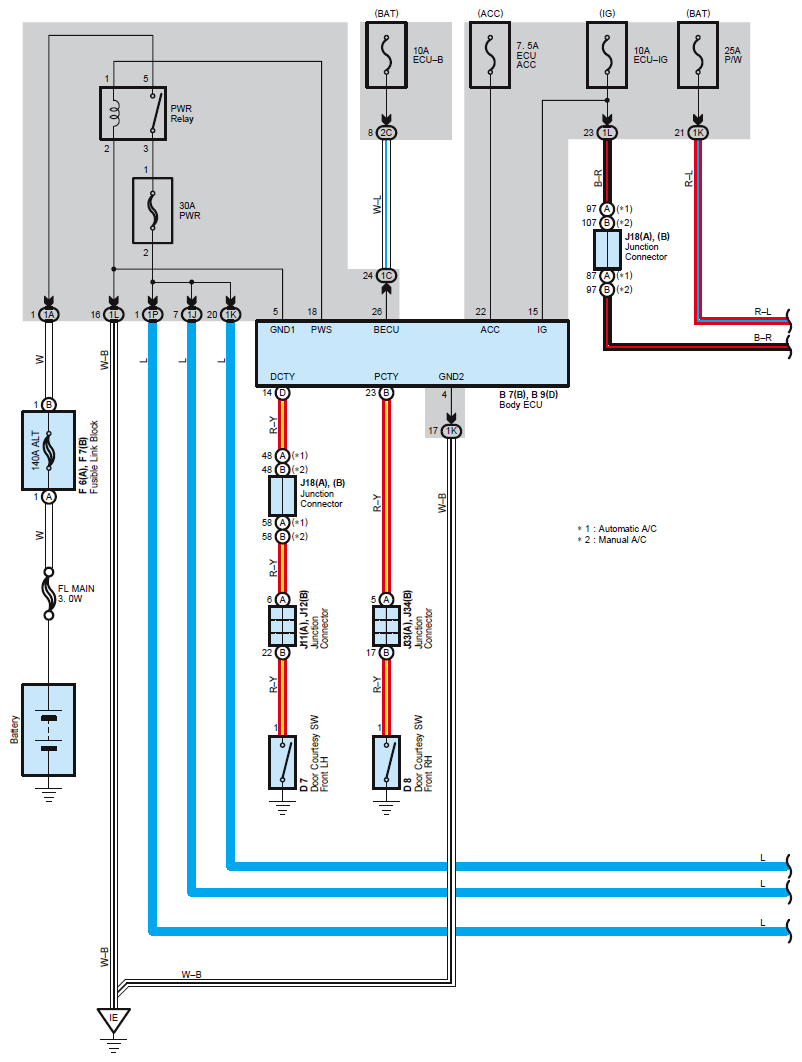

Fig 1: Power Window (W/ Jam Protection) - Circuit Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Power Window (W/ Jam Protection) - Circuit Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

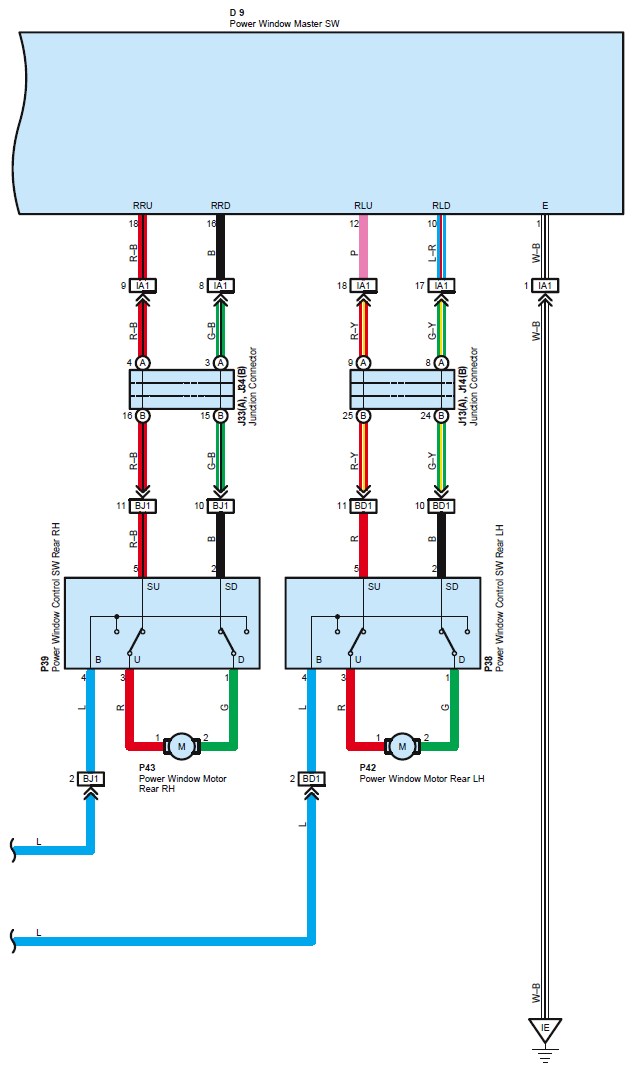

Fig 3: Power Window (W/ Jam Protection) - Circuit Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
