Knock Sensor, Intake Manifold: Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE ENGINE UNDER COVER SUB-ASSEMBLY (for 4WD and Pre-Runner)
  3. DRAIN ENGINE COOLANT  . Refer to REPLACEMENT - Step 1
  4. REMOVE INTAKE AIR CONNECTOR  See step  4
  5. REMOVE THROTTLE WITH MOTOR BODY ASSEMBLY  See step  5
  6. DISCONNECT FUEL HOSE  . Refer to REMOVAL - Step 7
  7. DISCONNECT FUEL HOSE NO. 2  . Refer to REMOVAL - Step 8
  8. REMOVE INTAKE MANIFOLD
    Fig 1: Locating Fuel Vapor Feed Hose To VSV
    GTY184702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the fuel vapor feed hose from the VSV.
    2. Disconnect the vacuum hose.
      Fig 2: Locating Vacuum Hose
      GTY209895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt, then remove the clamp bracket.
      Fig 3: Locating Clamp Bracket With Bolt
      GTY209896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the water by-pass hose No. 2.
      Fig 4: Locating Water By-Pass Hose
      GTY168293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the ventilation hose No. 3.
      Fig 5: Locating Ventilation Hose
      GTY177015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect the VSV connector.

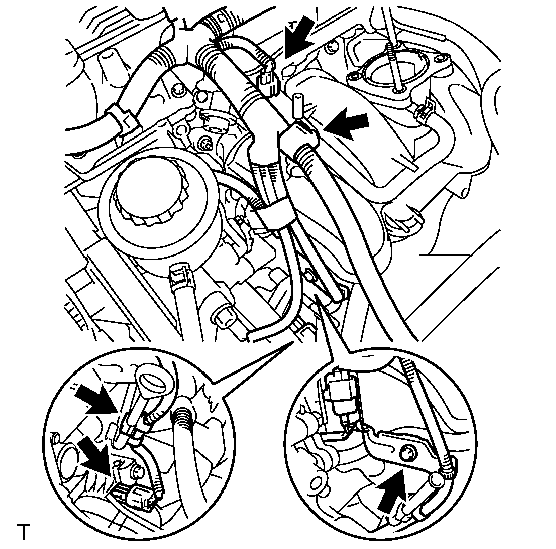

      Fig 6: Disengaging Engine Wire Harness Clamp
      GTY209897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Disengage the engine wire harness clamp.
    8. Disconnect the compressor magnetic clutch connector. (w/ AIR CONDITIONING)
    9. Disengage the wire harness clamp.
    10. Remove the bolt and harness clamp bracket.
    11. Disconnect the 3 connectors.
      Fig 7: Locating Engine Wire Harness To Relay Block
      GTY209898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Remove the nut shown in the illustration.
    13. Disconnect the engine wire harness from the relay block.
    14. Remove the 5 bolts and 2 nuts, then remove the intake manifold.

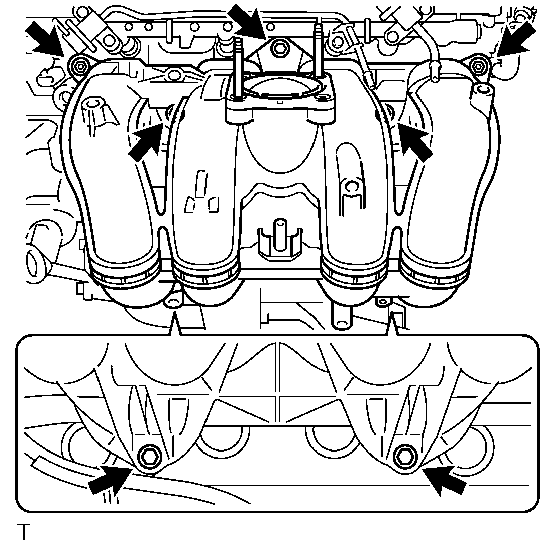

      Fig 8: Locating Intake Manifold Bolts And Nuts
      GTY209900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE KNOCK CONTROL SENSOR
    Fig 9: Removing Knock Control Sensor Bolt
    GTY180419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the knock control sensor connector.
    2. Remove the bolt, then remove the knock control sensor.
