Accessory Meter: Notes

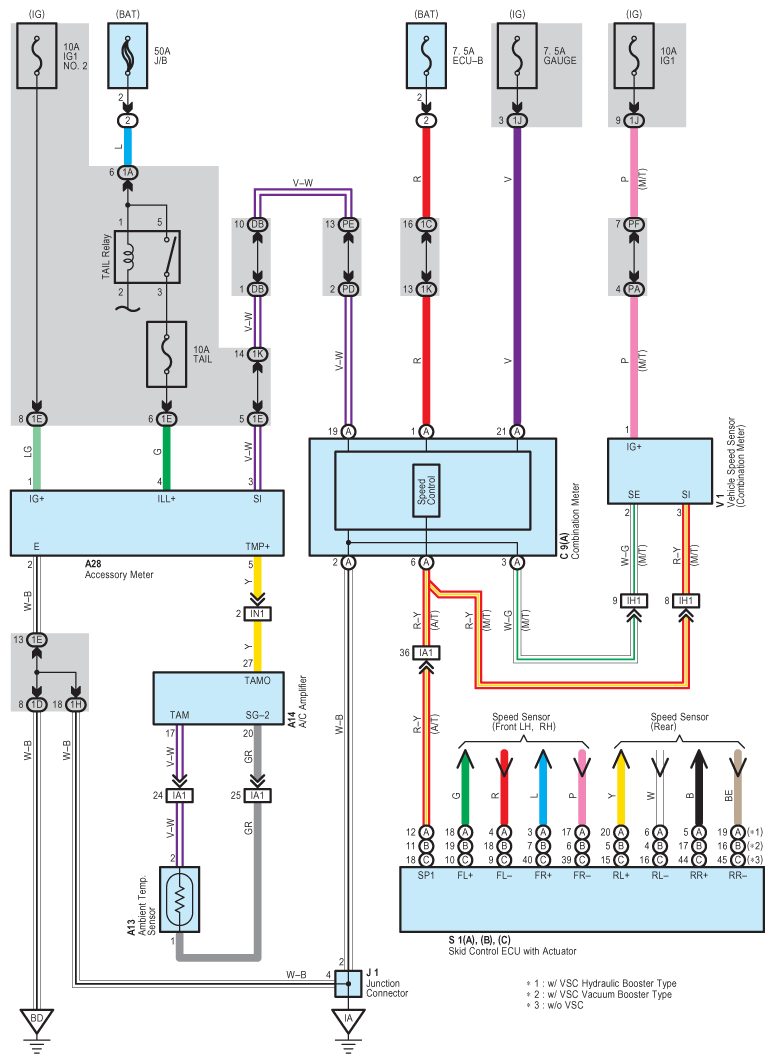

Fig 1: Accessory Meter - Circuit Diagram
G07618892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
