Ignition Coil And Spark Plug: Components: Illustration

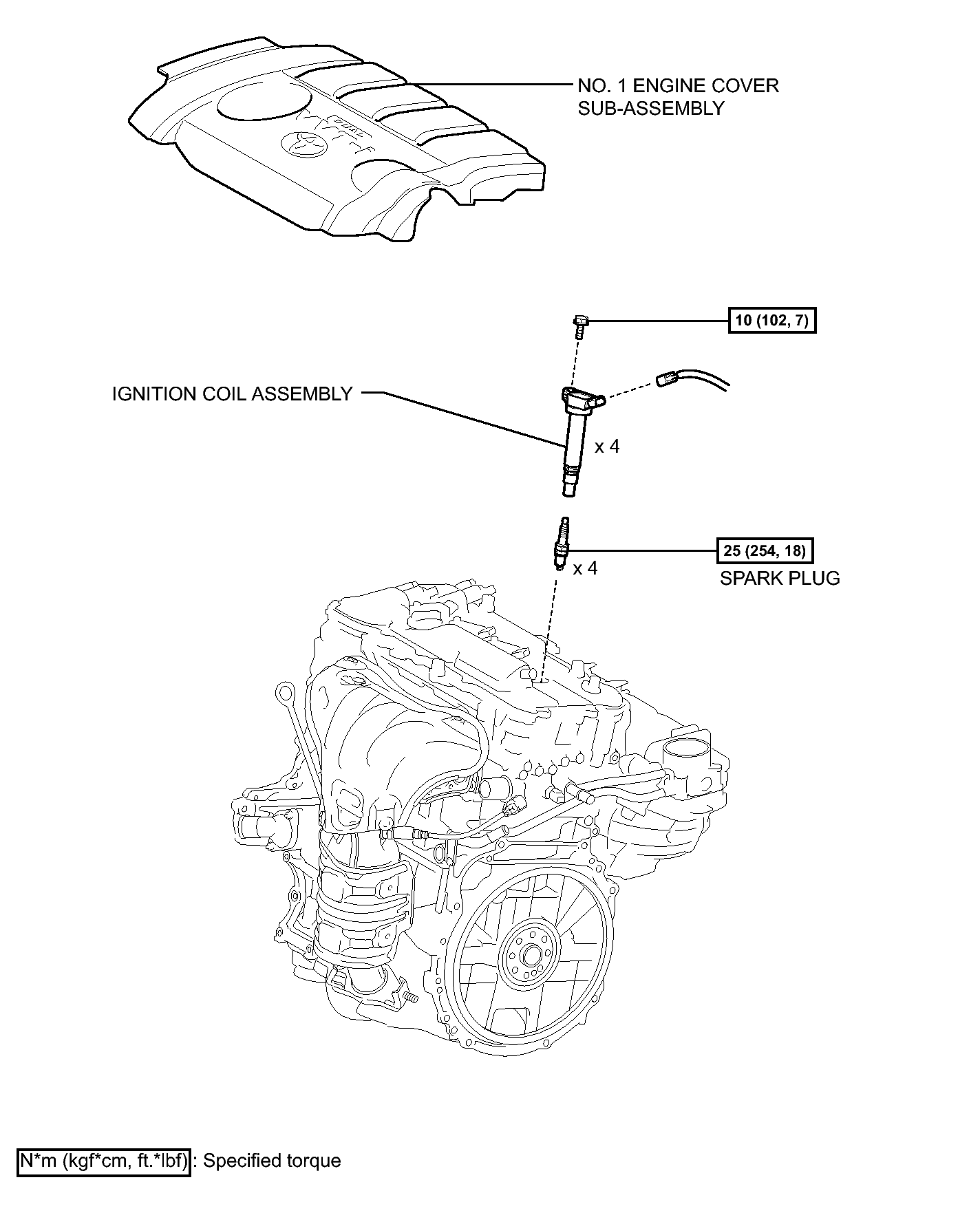

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components And Torque Specifications
GTY251511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
