Engine Control System (2GR-FE) (Service Information): ECM: Components: Illustration

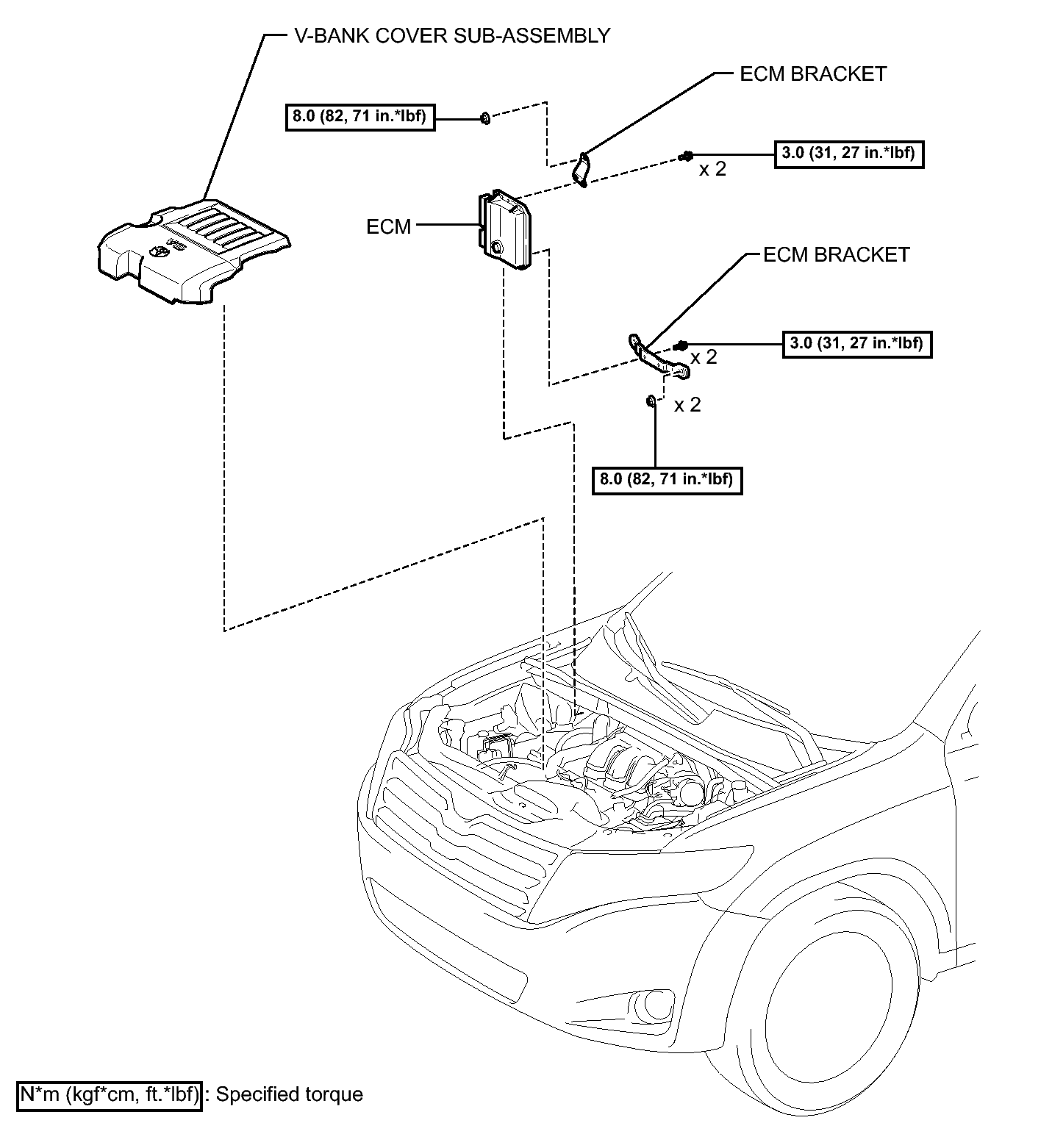

Fig 1: Identifying ECM Replacement Components With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
