Engine Control System (2GR-FE) (Service Information)
›
Crankshaft Position Sensor
›
Components
›
Illustration
Crankshaft Position Sensor: Components: Illustration

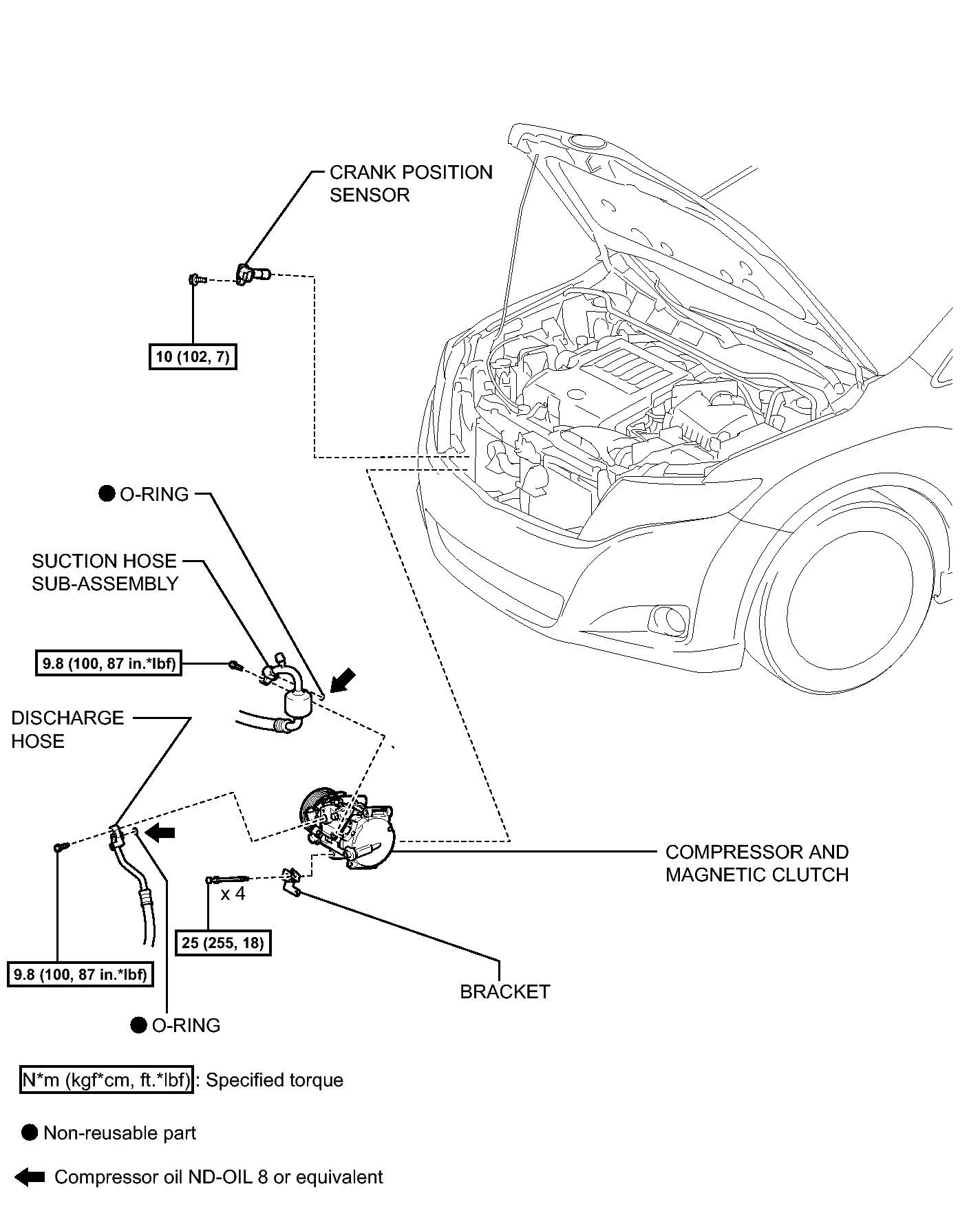

Fig 1: Identifying Crankshaft Position Sensor Replacement Components With Torque Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
