Yaris 2D Hatchback, Standard
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Headlight
›
Notes
OEM System Circuits: Headlight: Notes

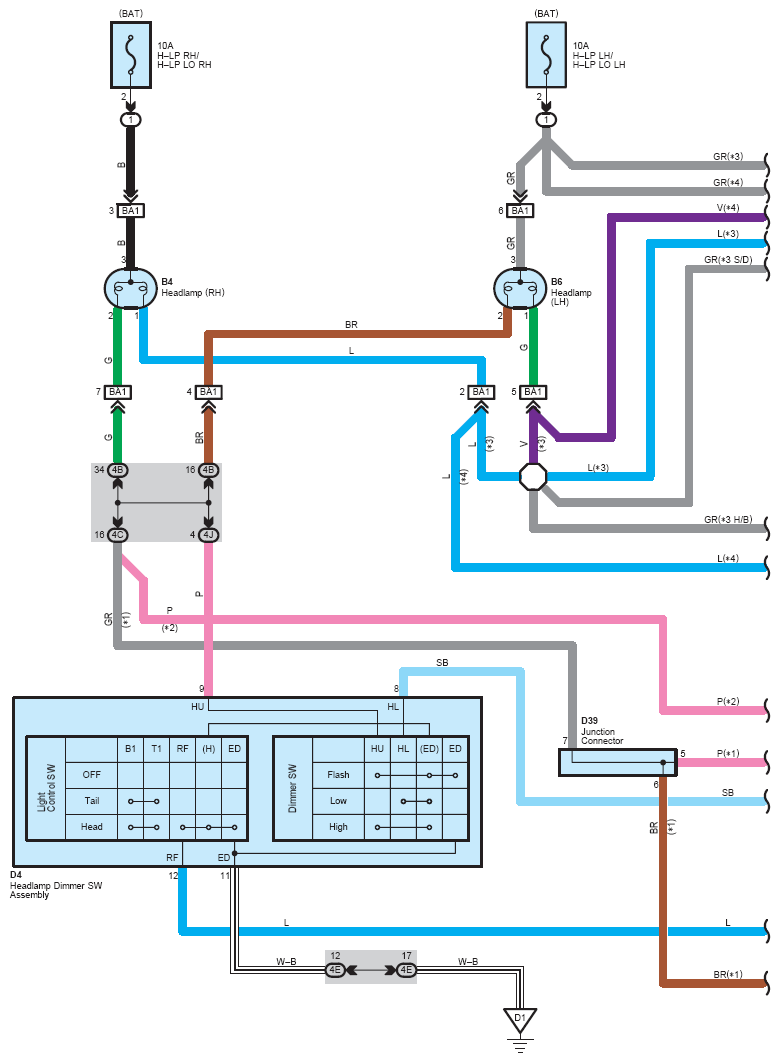

Fig 1: Headlight - Circuit Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

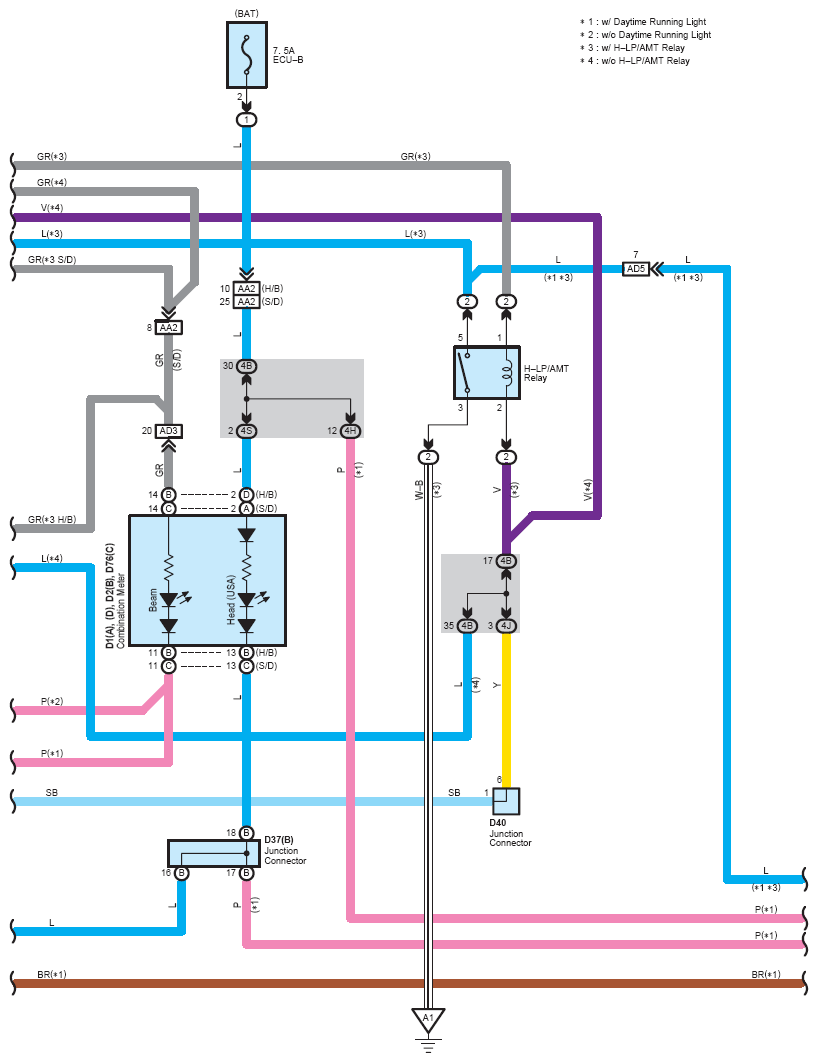

Fig 2: Headlight - Circuit Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

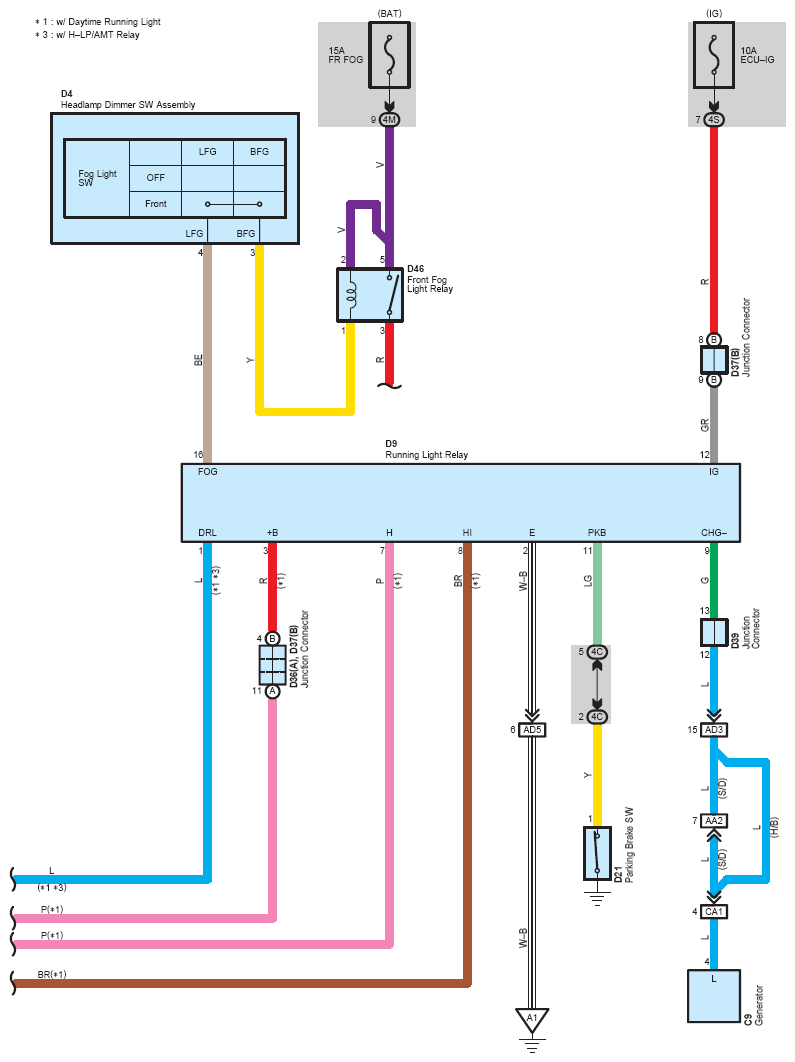

Fig 3: Headlight - Circuit Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
