Stop Light: Notes

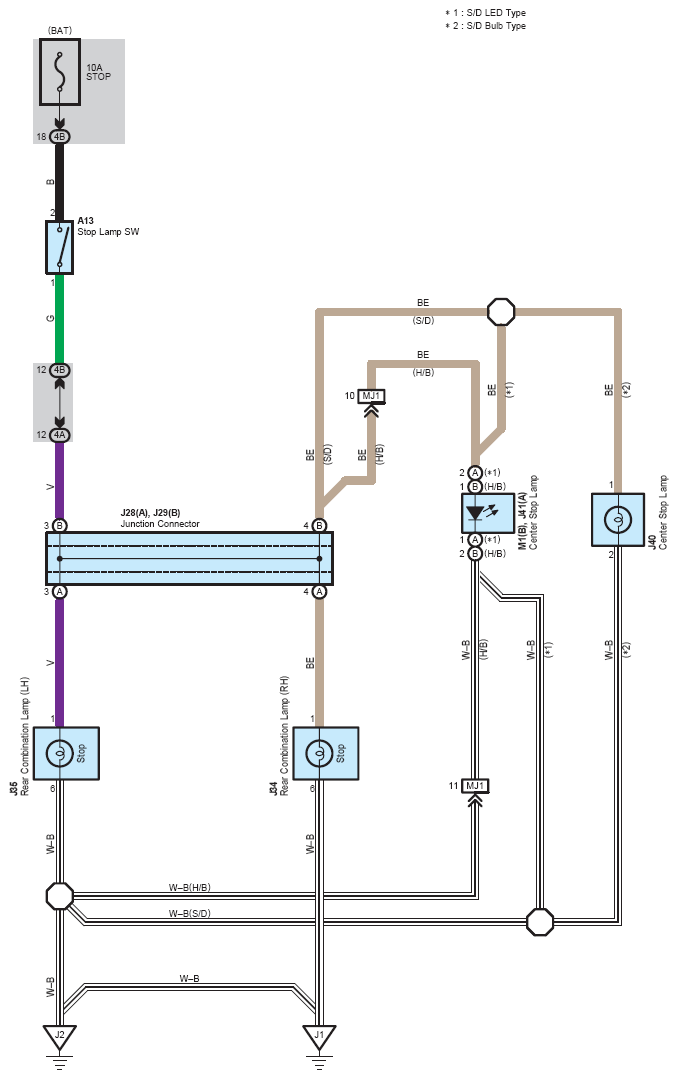

Fig 1: Stop Light - Circuit Diagram
G07557455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
