Back Door Opener: Notes

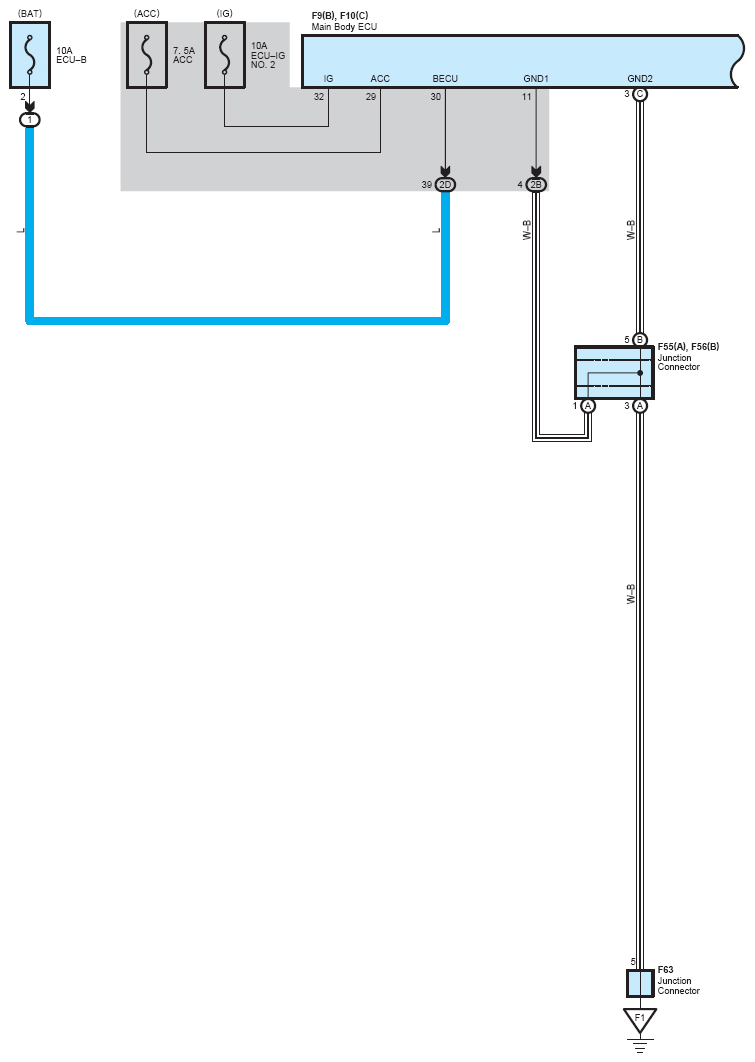

Fig 1: Back Door Opener System Wiring Diagram (1 Of 5)
G07111486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Back Door Opener System Wiring Diagram (2 Of 5)
G07111487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

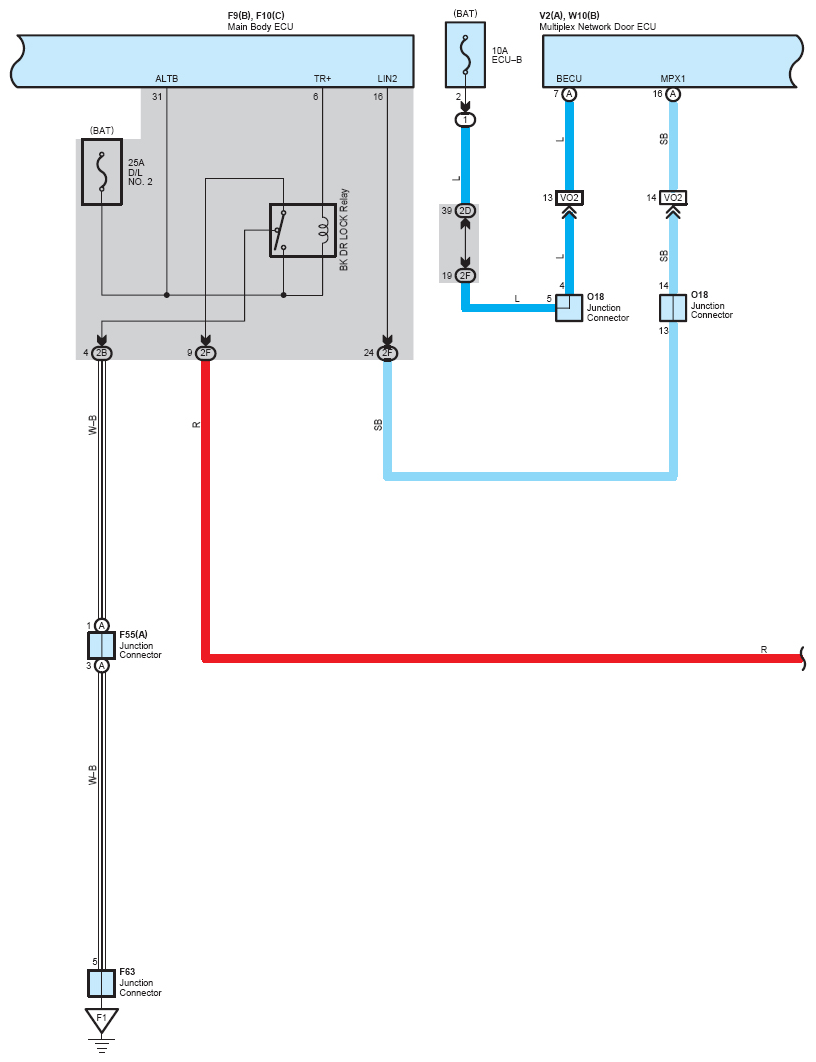

Fig 3: Back Door Opener System Wiring Diagram (3 Of 5)
G07111488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

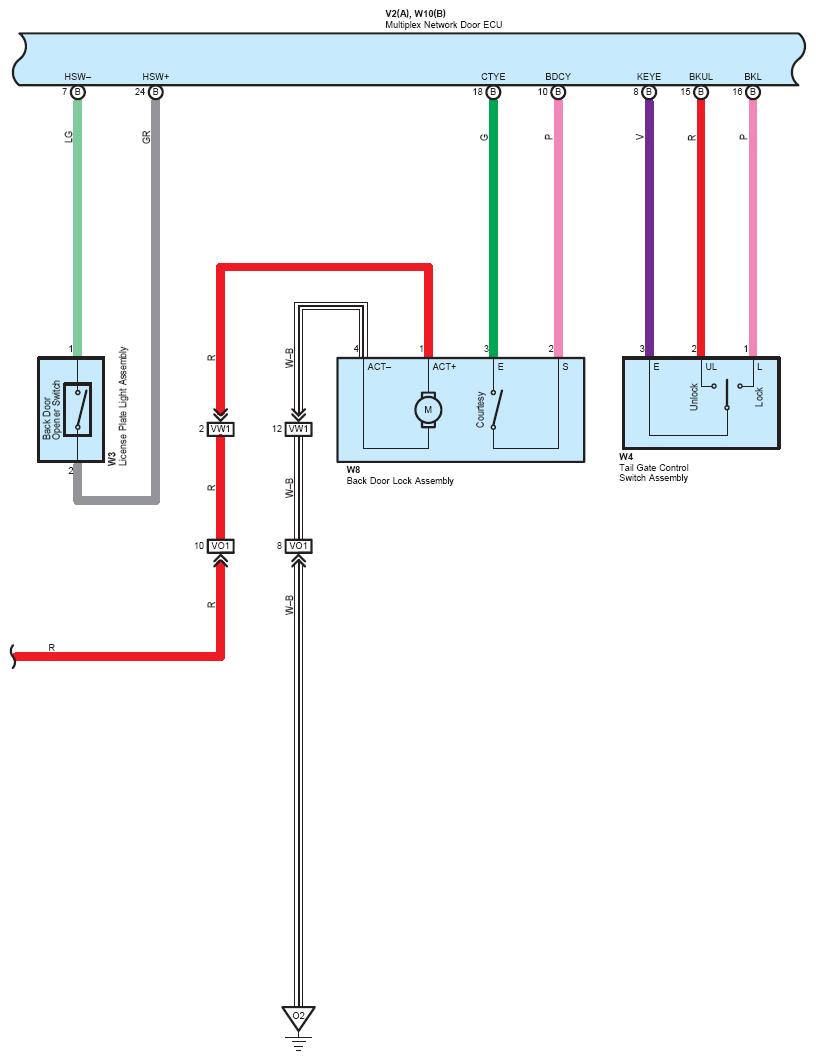

Fig 4: Back Door Opener System Wiring Diagram (4 Of 5)
G07111489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

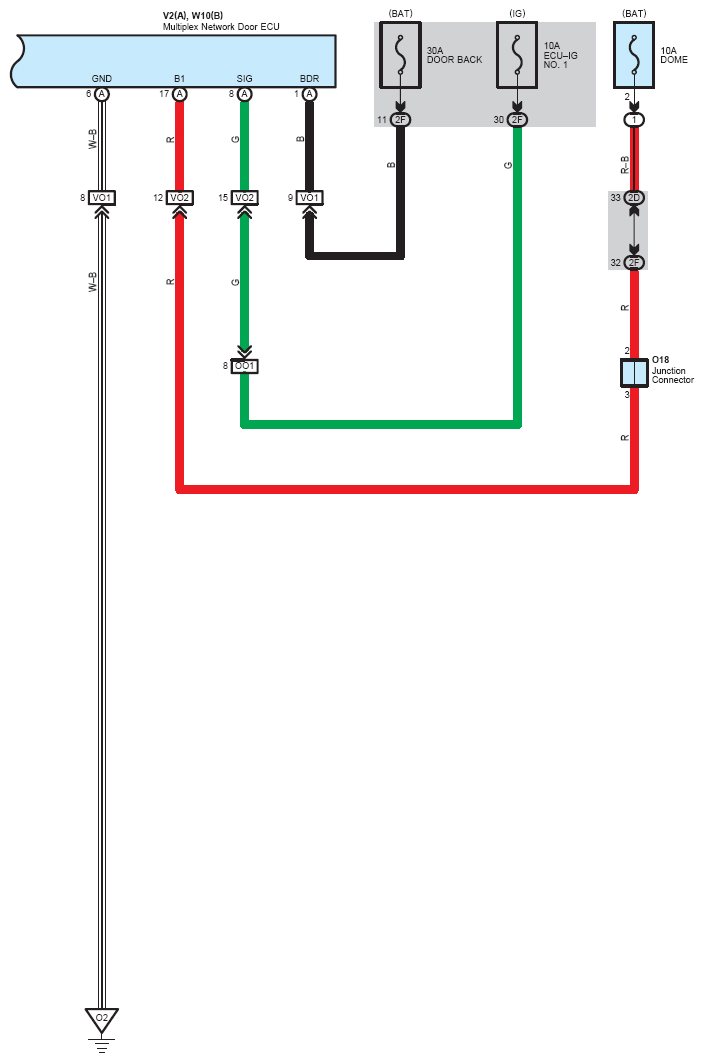

Fig 5: Back Door Opener System Wiring Diagram (5 Of 5)
G07111490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
