Engine Immobiliser System (w/o Smart Key System): Notes

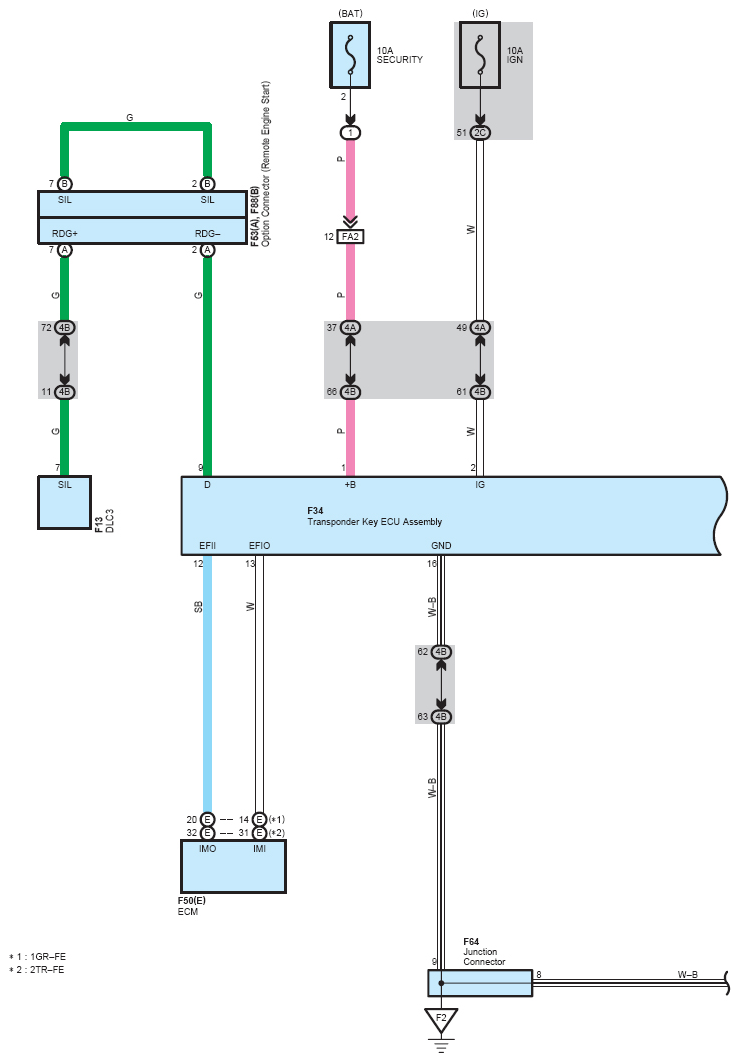

Fig 1: Engine Immobiliser System (w/o Smart Key System) Wiring Diagram (1 Of 2)
G07111414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

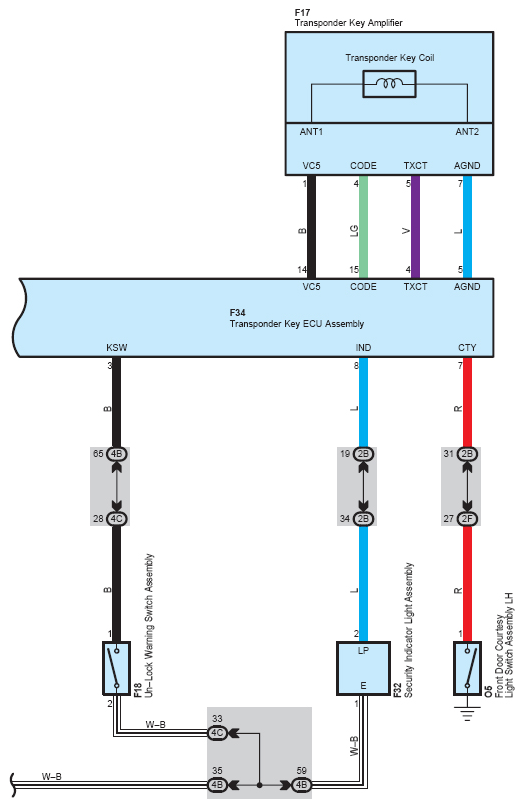

Fig 2: Engine Immobiliser System (w/o Smart Key System) Wiring Diagram (2 Of 2)
G07111415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
