Shift Lock (1GR-FE)
›
Notes
Shift Lock (1GR-FE): Notes

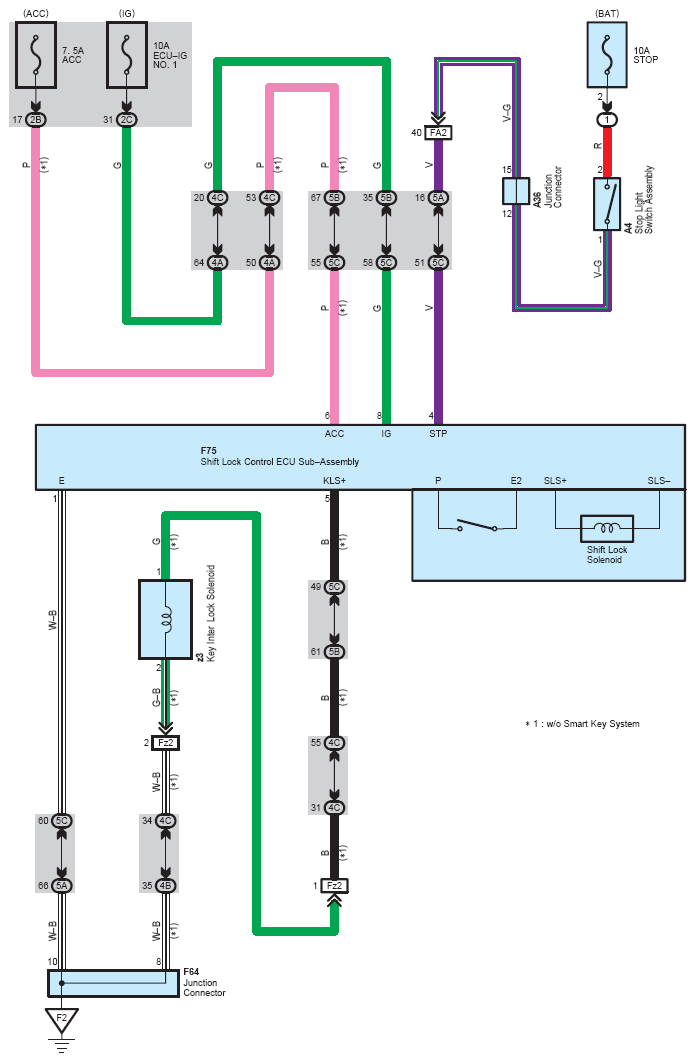

Fig 1: Shift Lock (1GR-FE) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
