OEM System Circuits: Headlight: Notes

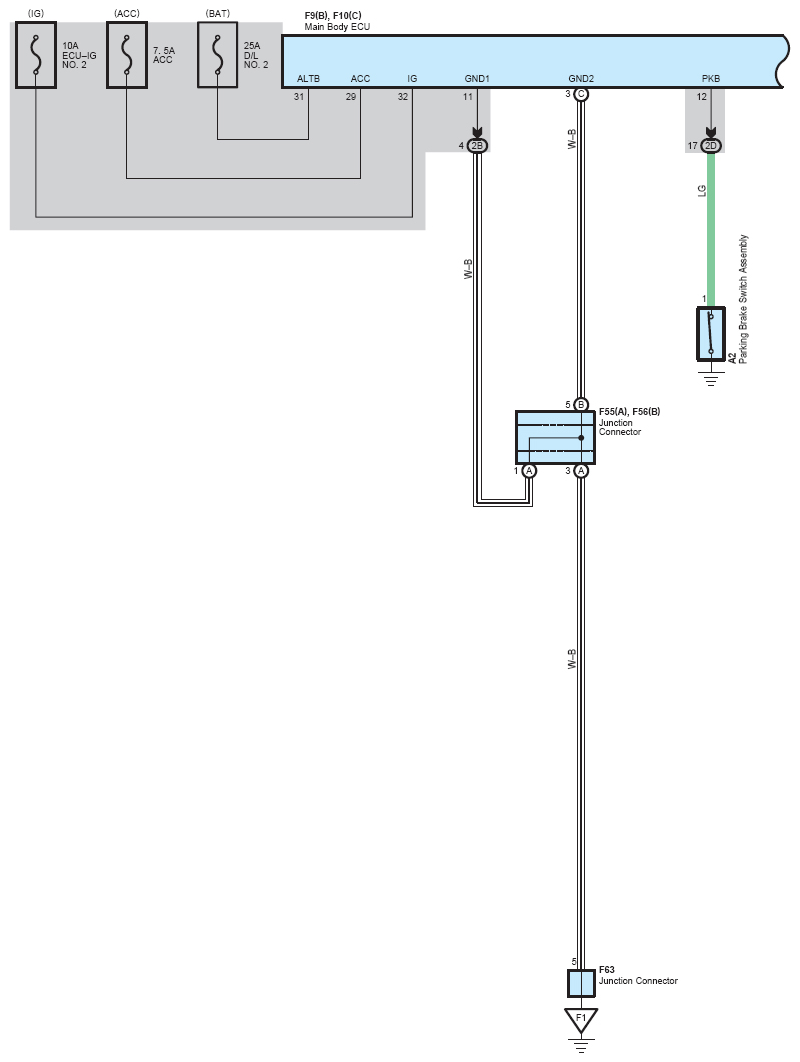

Fig 1: Headlight System Wiring Diagram (1 Of 7)

G07111422

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

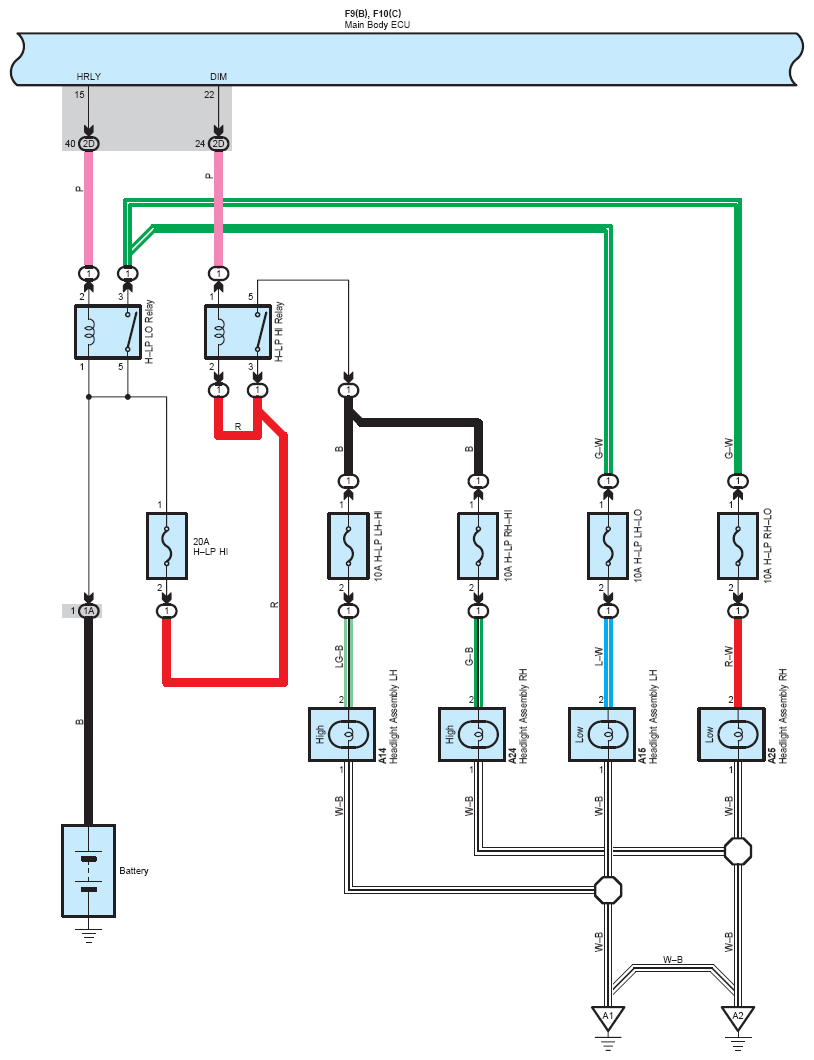

Fig 2: Headlight System Wiring Diagram (2 Of 7)

G07111423

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

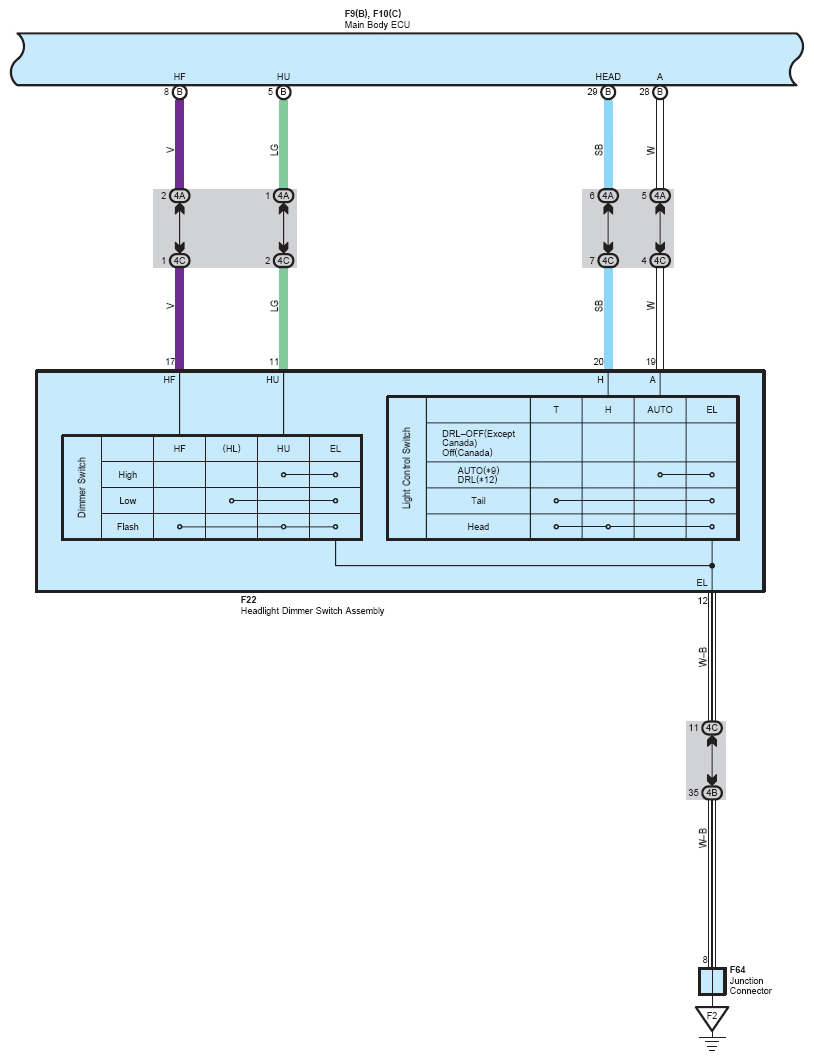

Fig 3: Headlight System Wiring Diagram (3 Of 7)

G07111424

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

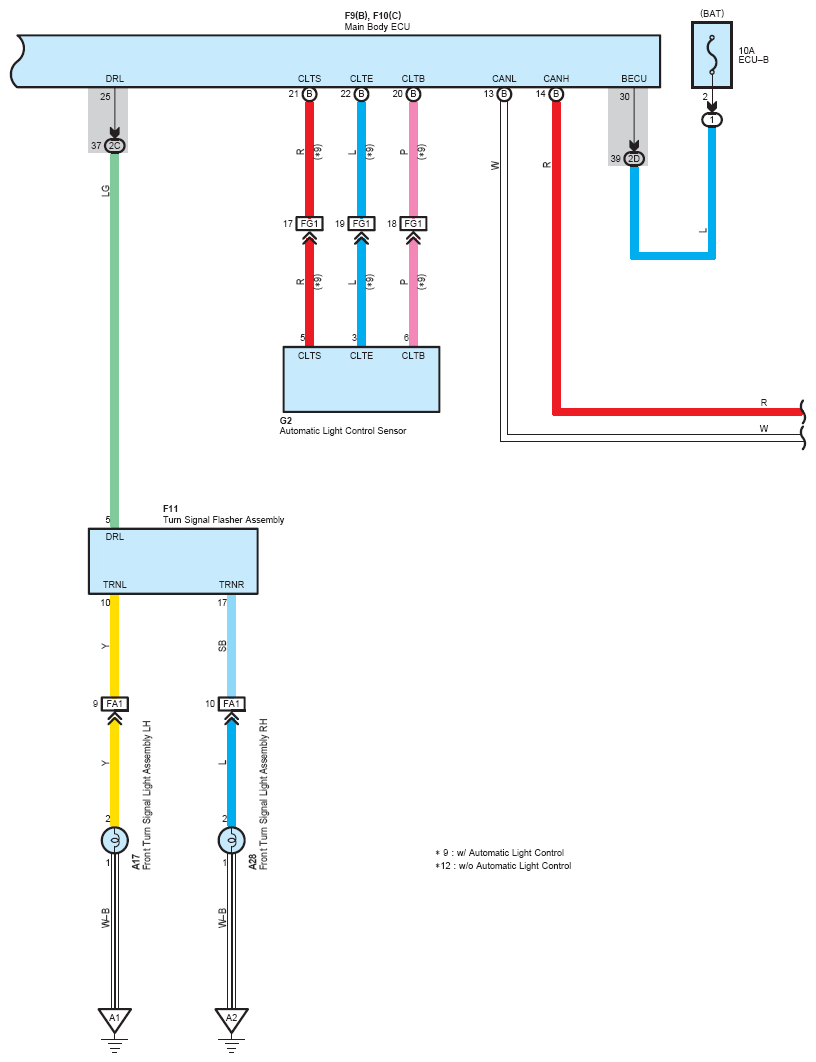

Fig 4: Headlight System Wiring Diagram (4 Of 7)

G07111425

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

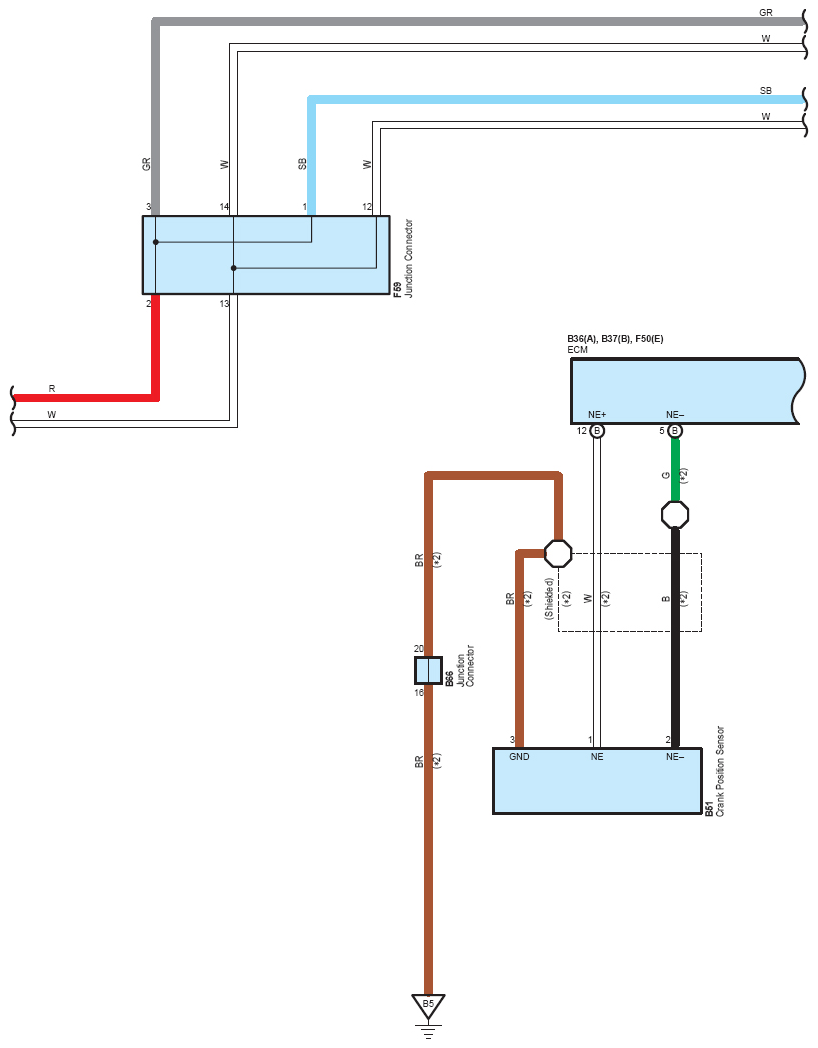

Fig 5: Headlight System Wiring Diagram (5 Of 7)

G07111426

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

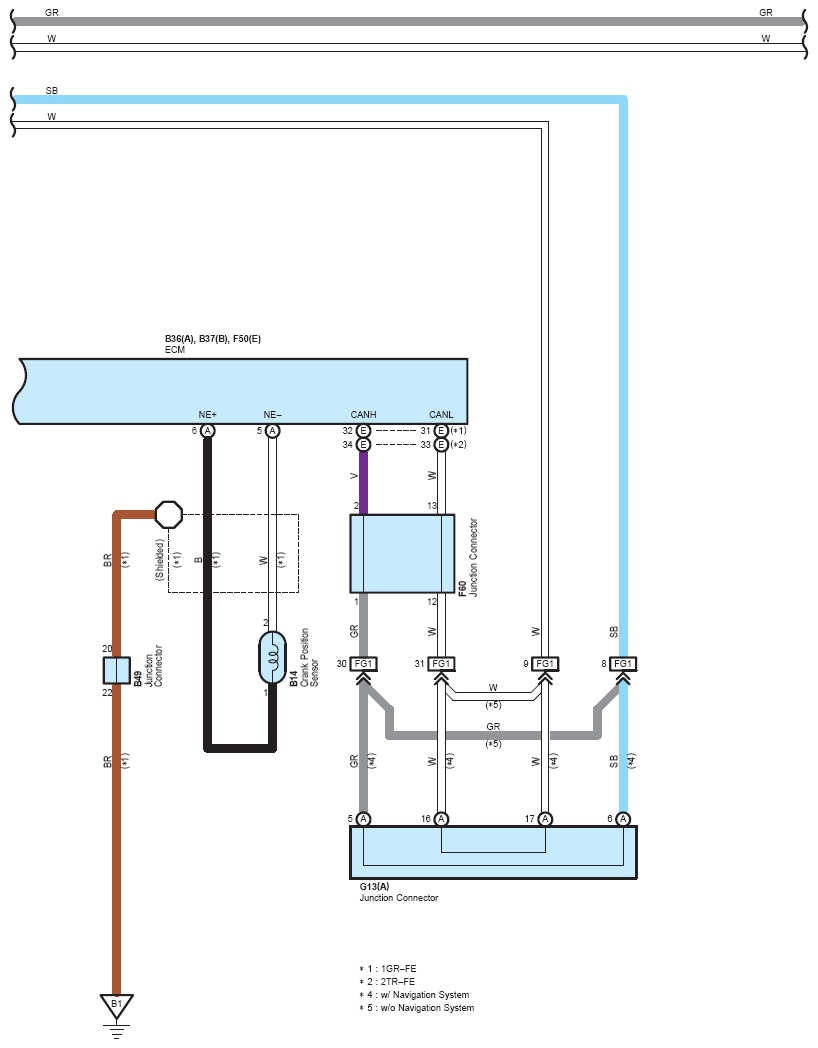

Fig 6: Headlight System Wiring Diagram (6 Of 7)

G07111427

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

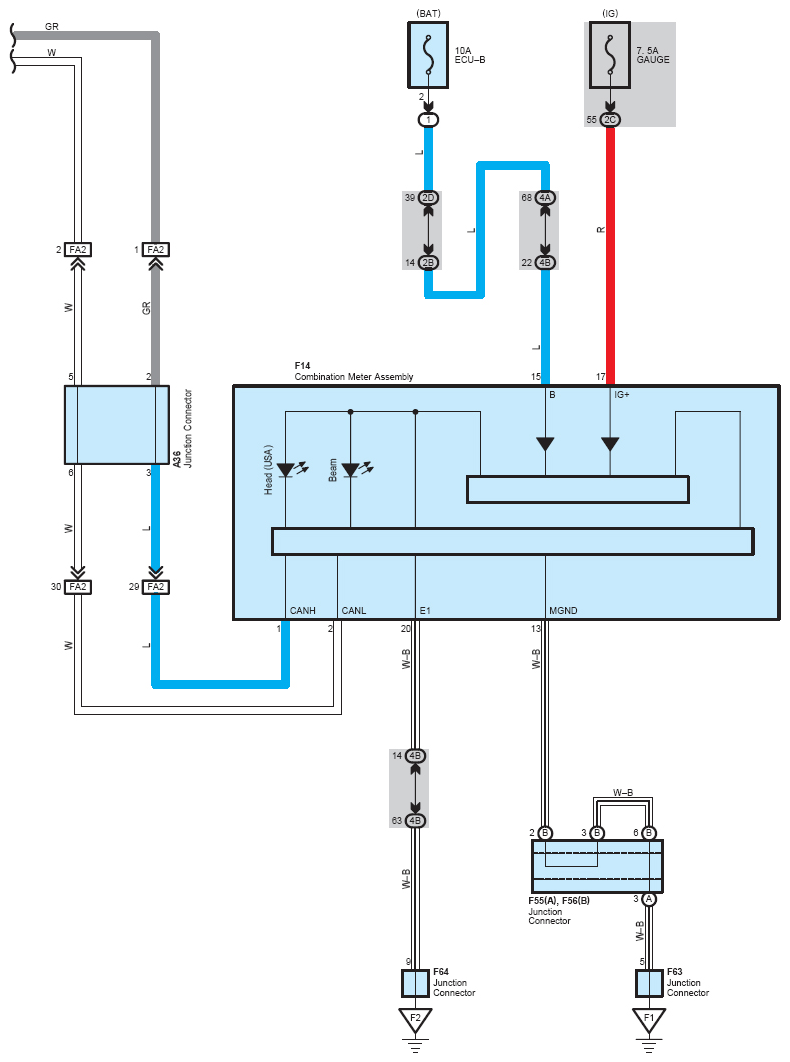

Fig 7: Headlight System Wiring Diagram (7 Of 7)

G07111428

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
