OEM System Circuits: Horn: Notes

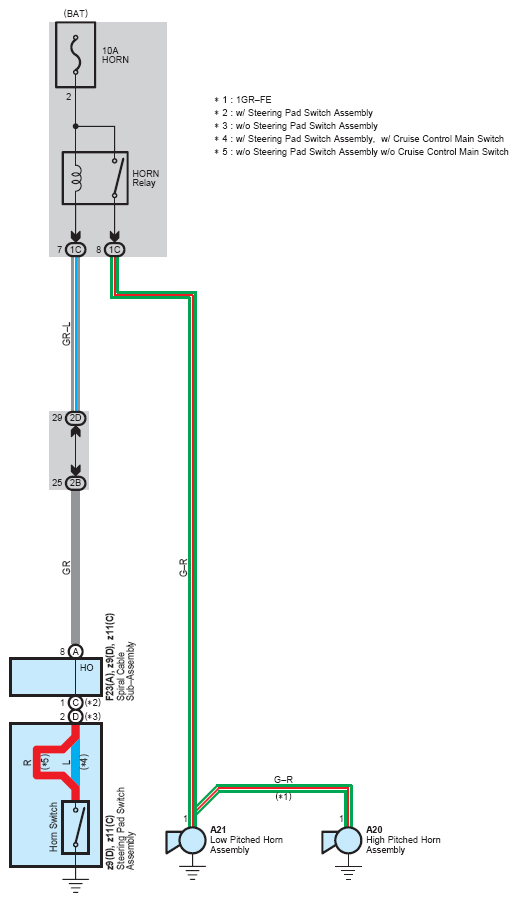

Fig 1: Horn Wiring Diagram

G07111582

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
