Parking Assist (Rear View Monitor w/o Navigation System): Notes

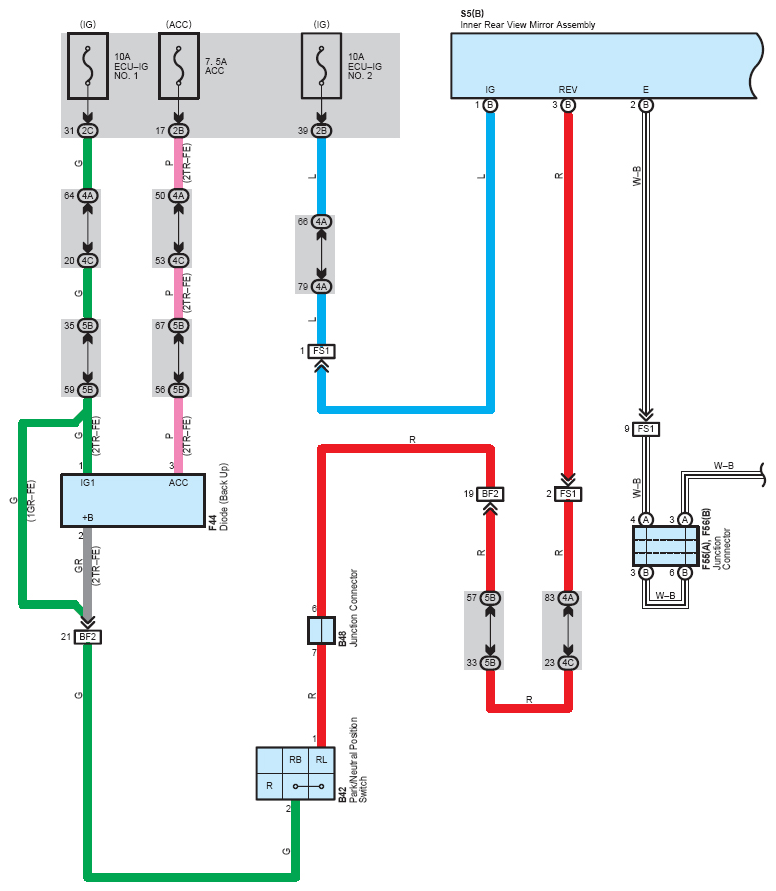

Fig 1: Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram (1 Of 2)
G07111603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

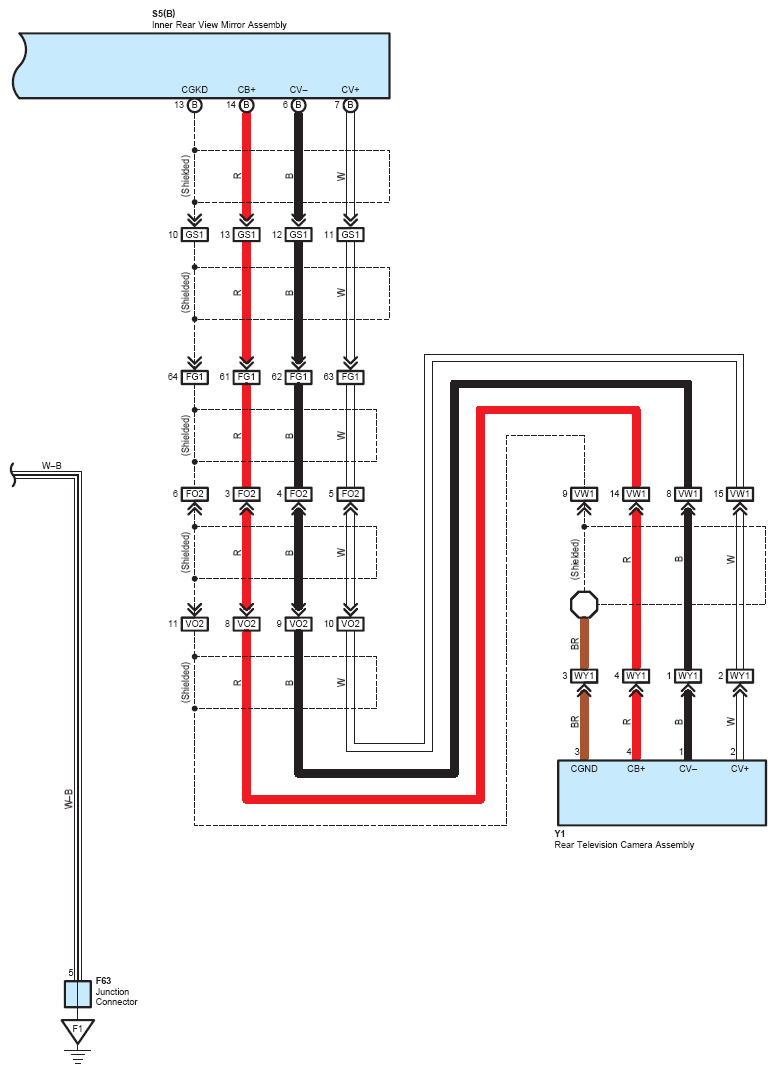

Fig 2: Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram (2 Of 2)
G07111604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
