Remote Control Mirror: Notes

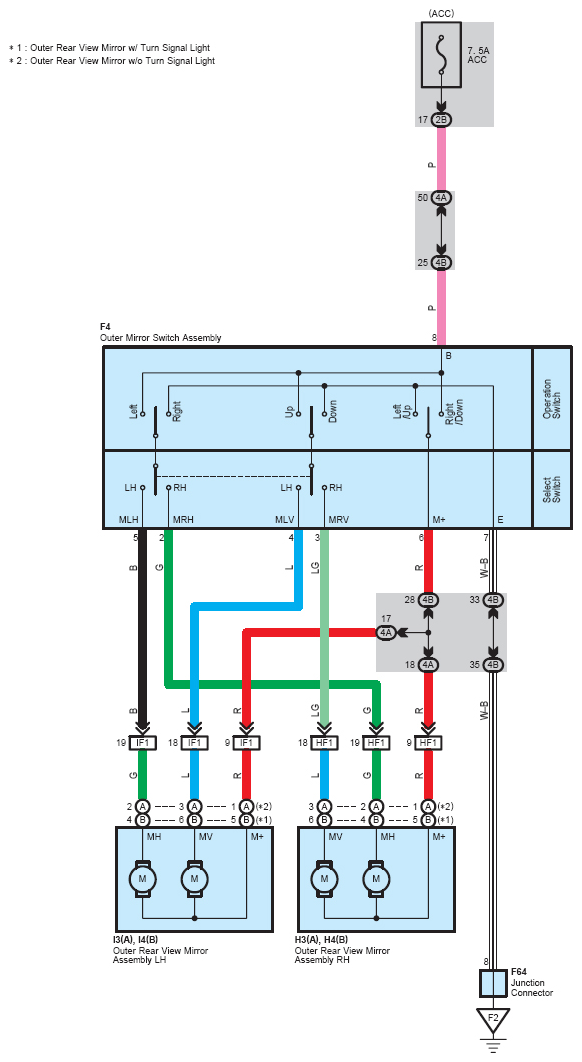

Fig 1: Remote Control Mirror Wiring Diagram

G07111587

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
