Driver Side Power Window Motor Circuit: Wiring Diagram

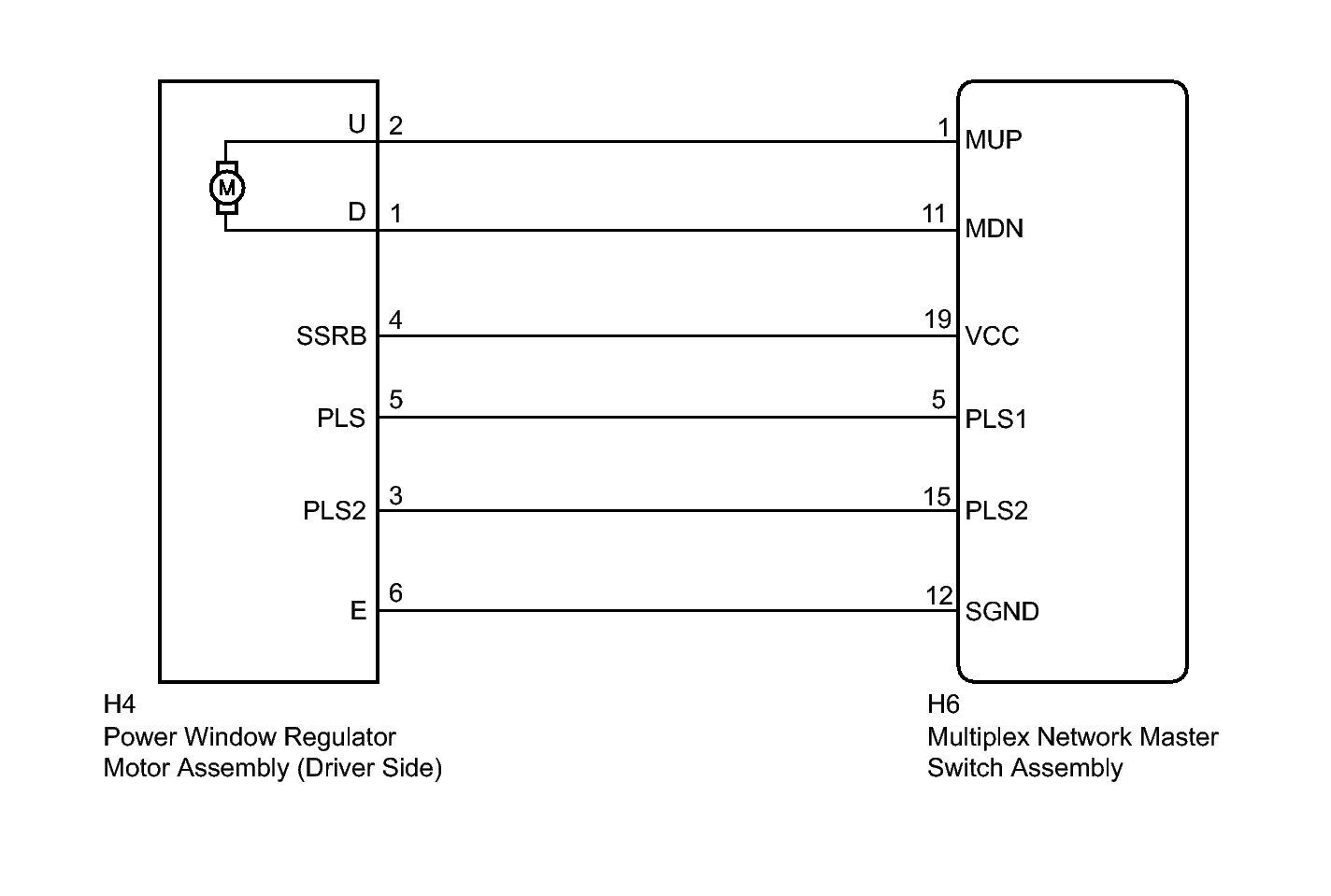

Fig 1: Driver Side Power Window Motor Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
