Installation (To 12/2010): Installation

INSTALL BRAKE ACTUATOR WITH BRACKET
1. Install the actuator with bracket with the 3 bolts.

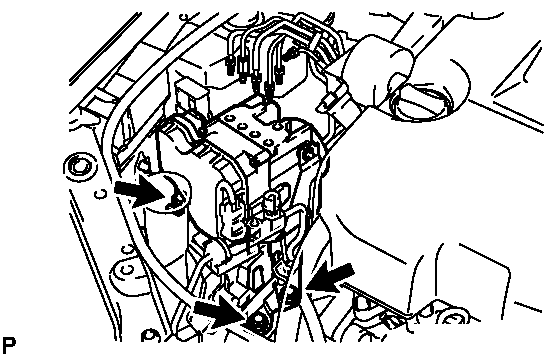

  Fig 1: Identifying Actuator With Bracket And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

  NOTE:
  Do not damage the brake tubes and wire harness.
2. Connect the actuator connector.

  Fig 2: Connecting Actuator Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, connect each brake tube to correct positions of the actuator with bracket as shown in the illustration.

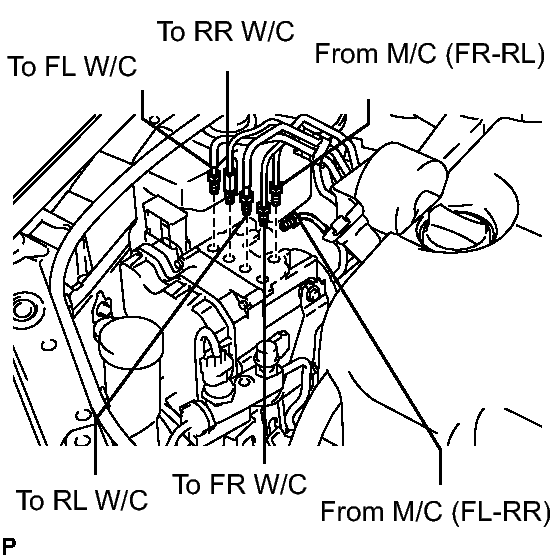

  Fig 3: Identifying Tags For Reconnection Points
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09023-00101
  Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)
FILL RESERVOIR WITH BRAKE FLUID . Refer to BLEEDING - Step 1
BLEED MASTER CYLINDER . Refer to BLEEDING - Step 2
BLEED BRAKE LINE . Refer to BLEEDING - Step 3
CHECK BRAKE FLUID LEAKAGE
CHECK FLUID LEVEL IN RESERVOIR . Refer to BLEEDING - Step 6
CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION
1. Perform the yaw rate sensor zero point calibration. Refer to CALIBRATION .
CHECK BRAKE ACTUATOR WITH TECHSTREAM
1. Check the brake actuator. Refer to ON-VEHICLE INSPECTION .
