Parking Assist (Rear View Monitor w/o Navigation System)
›
Notes
Parking Assist (Rear View Monitor w/o Navigation System): Notes

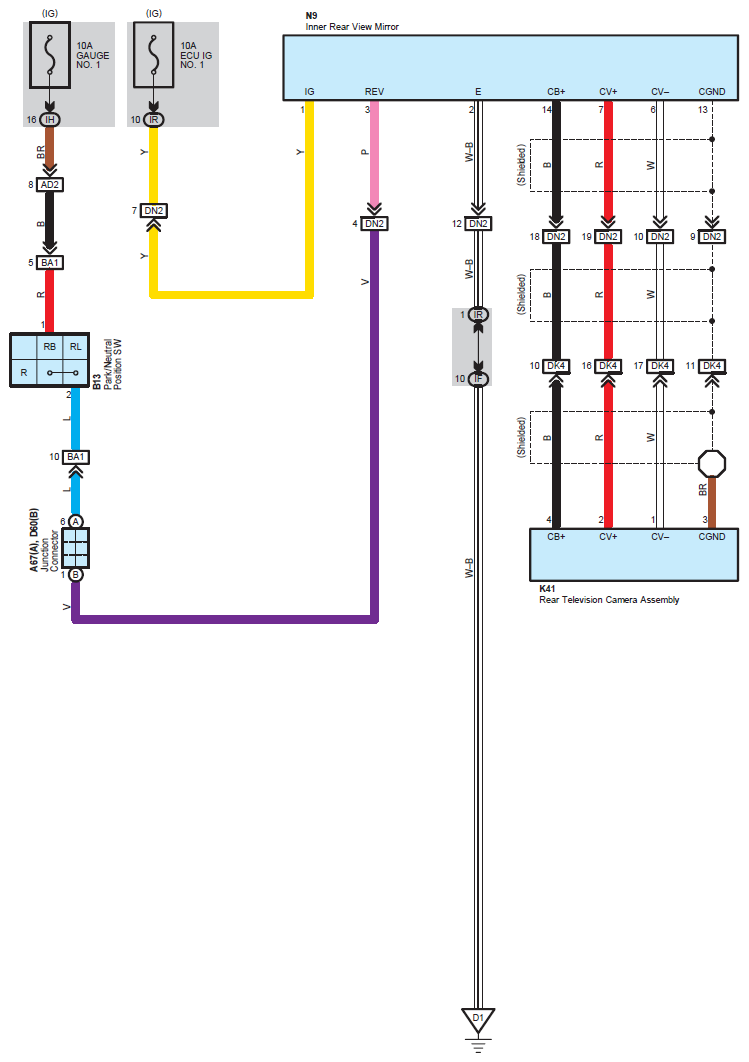

Fig 1: Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram
