Sliding Roof: Notes

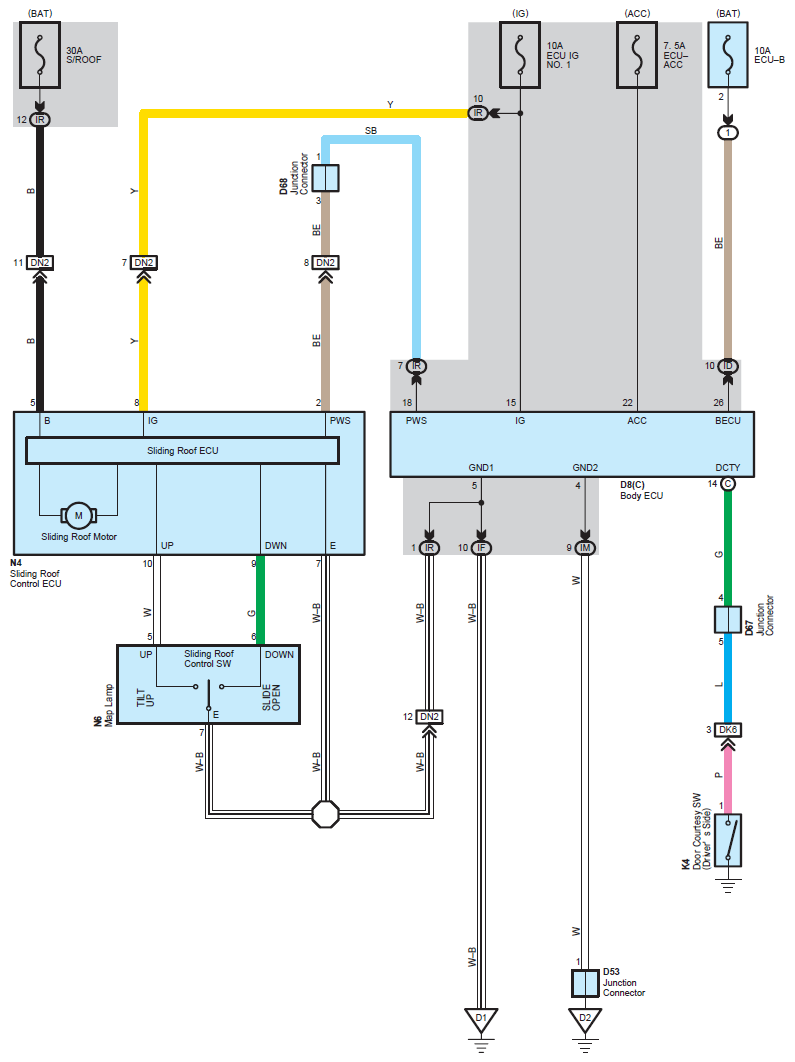

Fig 1: Sliding Roof System Wiring Diagram
G07112062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
