OEM System Circuits
›
Starting (w/o Smart Key System)
›
Notes
Starting (w/o Smart Key System): Notes

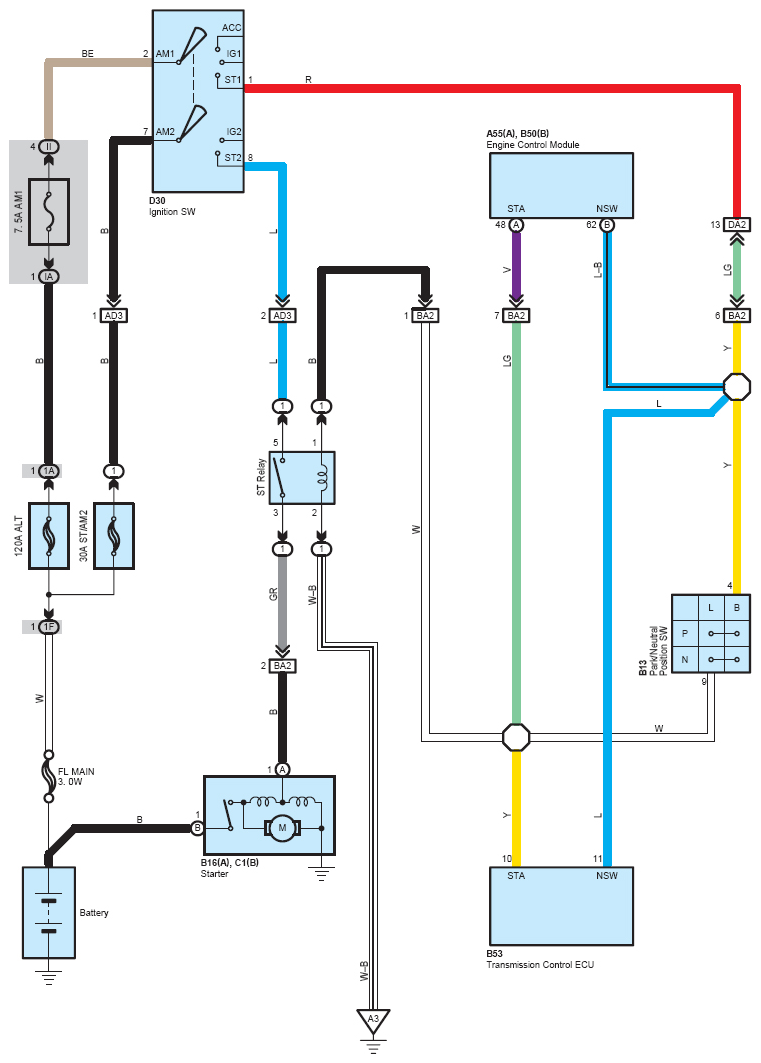

Fig 1: Starting (w/o Smart Key System) Wiring Diagram
