luggage Compartment Door Opener
›
Notes
luggage Compartment Door Opener: Notes

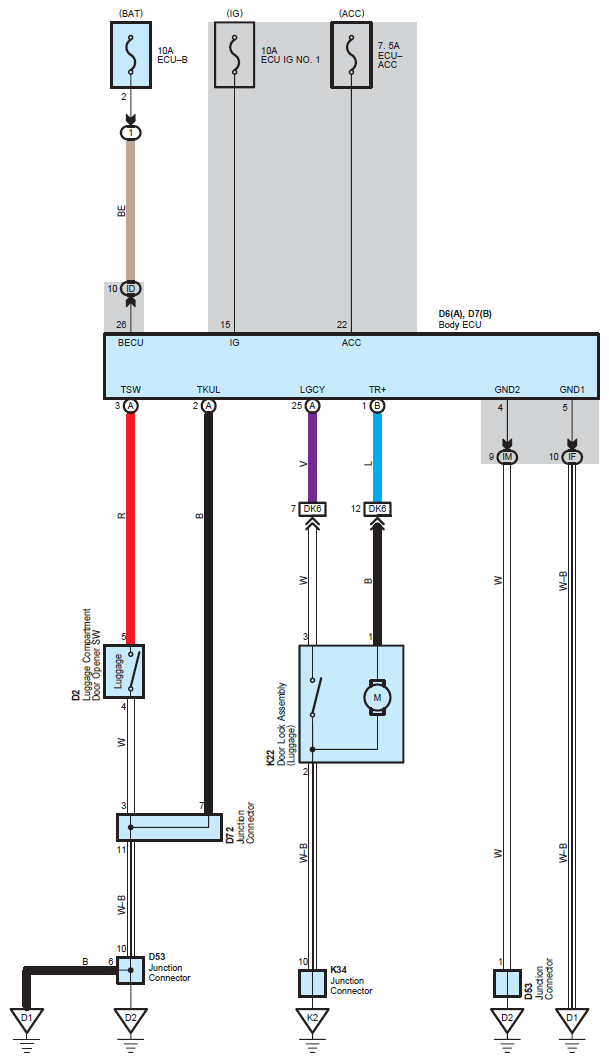

Fig 1: Luggage Compartment Door Opener System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
