Starting System (Service Information): Starter: Components: Illustration

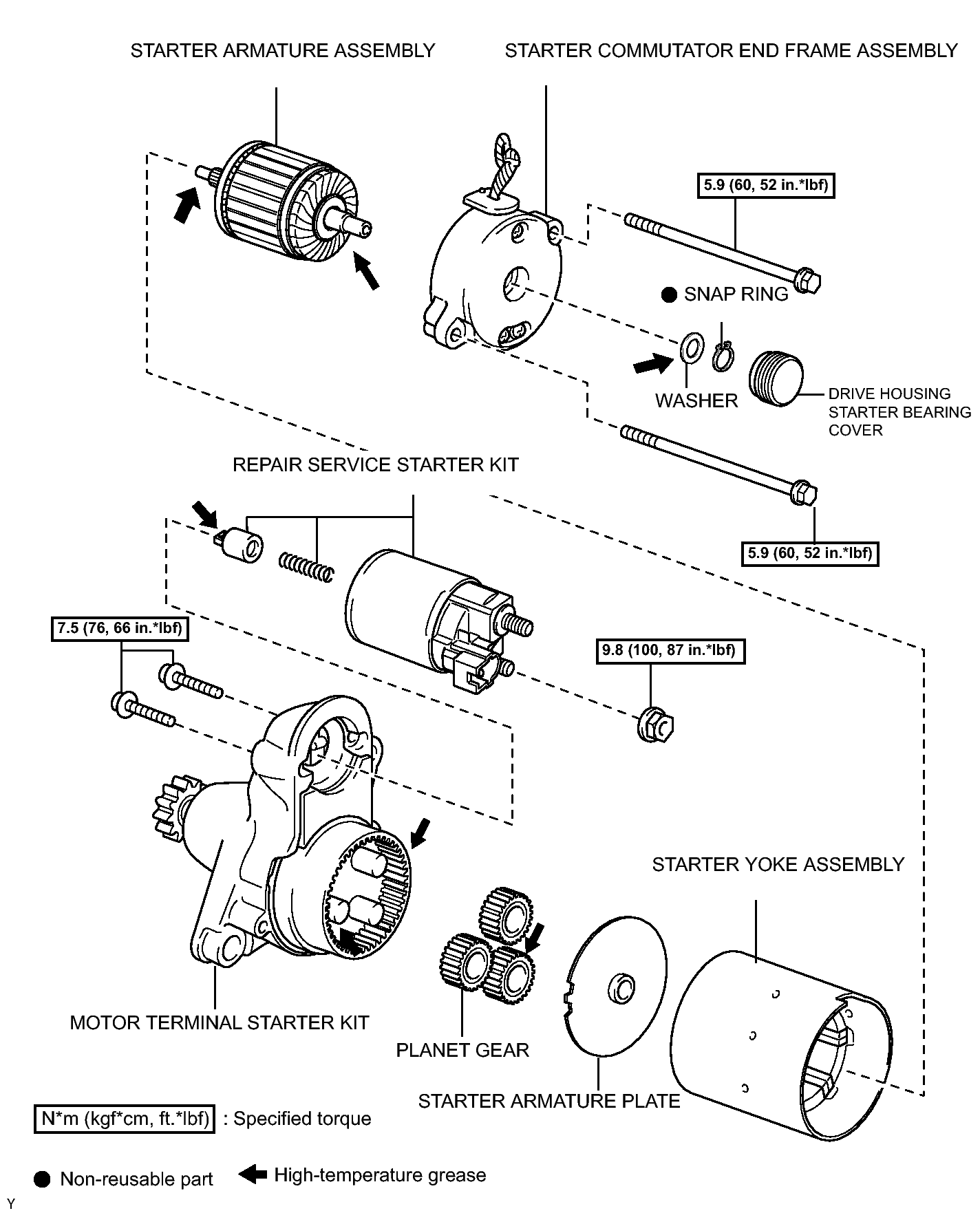

Fig 1: Exploded View Of Starter Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
