Charging System (Service Information): Generator: Components: Illustration

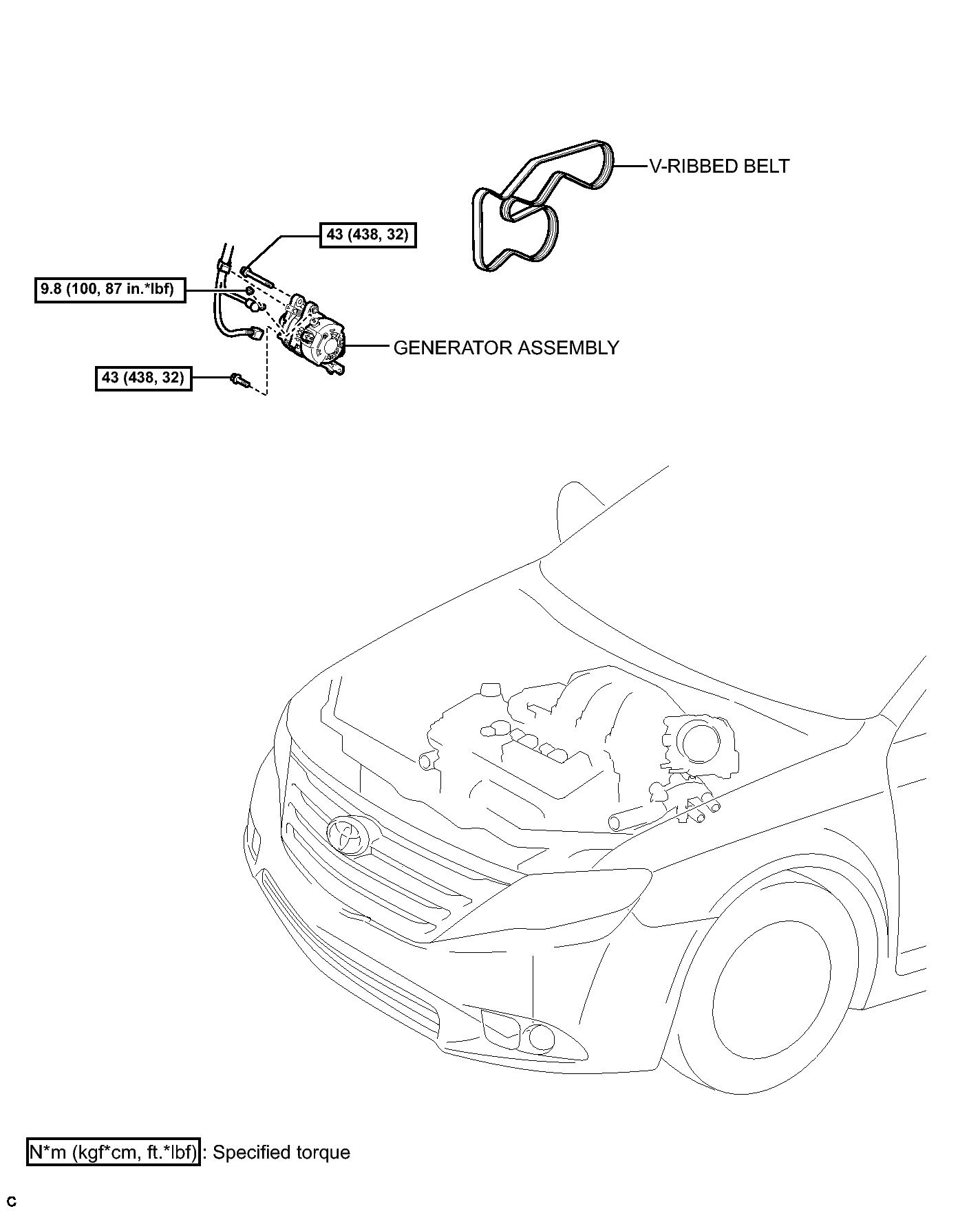

Fig 1: Identifying Generator Replacement Components With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

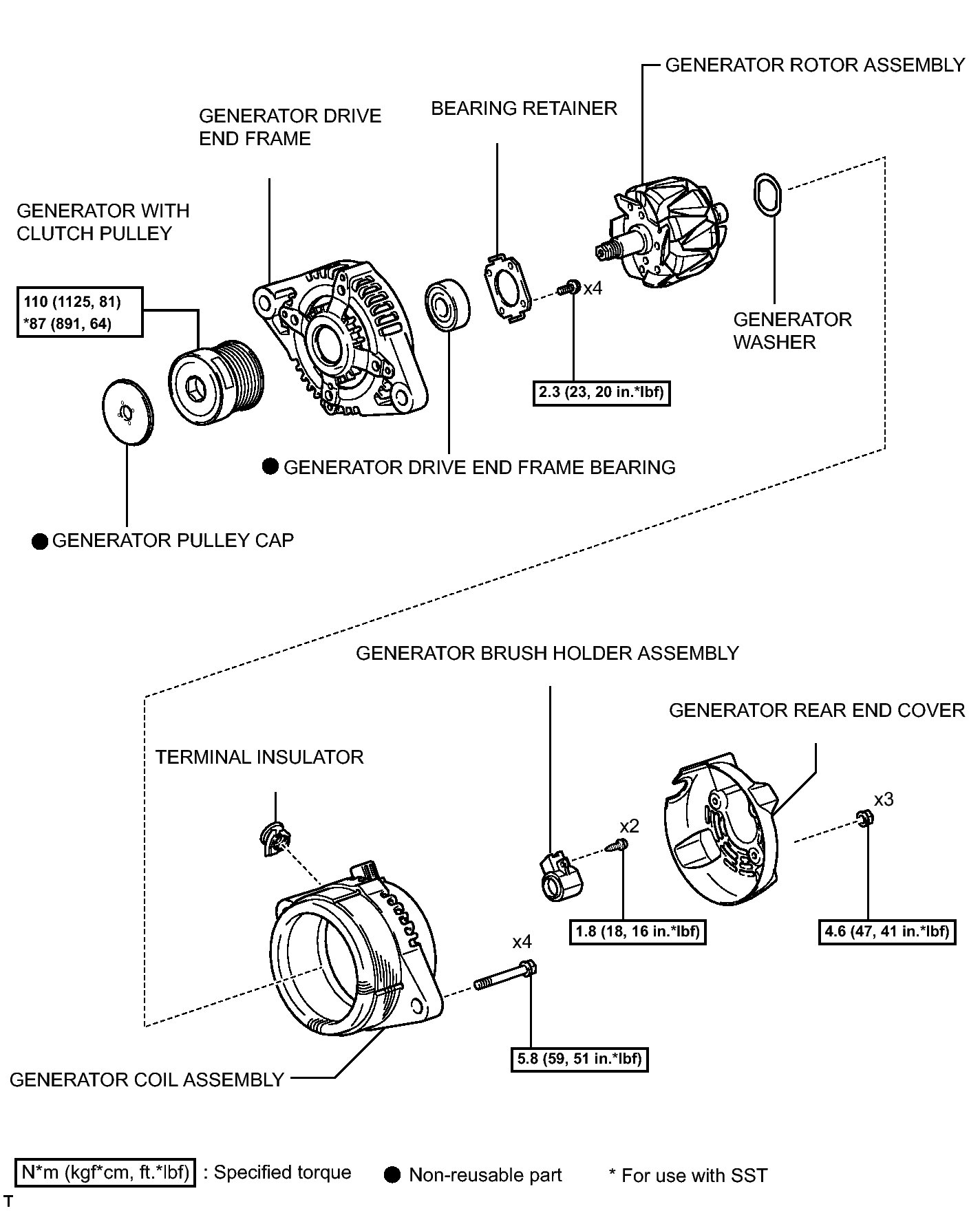

Fig 1: Exploded View Of Generator Replacement Components With Torque Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
