Shift Lever: Reassembly: Reassembly

INSTALL SHIFT LOCK CONTROL ECU SUB-ASSEMBLY
1. Install the shift lock control ECU sub-assembly.

  Fig 1: Locating Shift Lock Control ECU Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector to the shift lock control ECU sub-assembly.
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Securely connect the 2 terminals of the indicator light wire harness to the transmission control switch connector.
  1. w/o Smart Key System

    Fig 2: Identifying Locking Lug Of Terminals (w/o Smart Key System)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Smart Key System

    Fig 3: Identifying Locking Lug Of Terminals (w/ Smart Key System)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

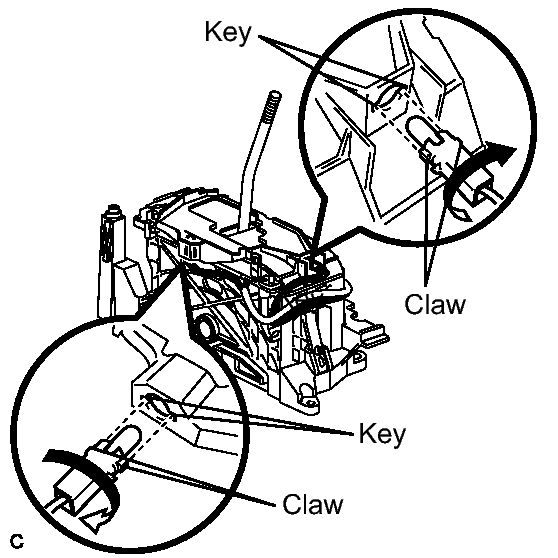

2. Install the position indicator light bulb to the indicator light wire sub-assembly.
3. Install the position indicator bulb cap to the position indicator light bulb.
4. Install the transmission control switch connector.

  Fig 4: Locating Transmission Control Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the indicator light wire sub-assembly to the transmission floor shift assembly.

  Fig 5: Installing Indicator Light Wire Sub-Assembly To Transmission Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Make sure that the indicator light wire is securely installed to the transmission floor shift assembly.
