Charging (TMC Made): Notes

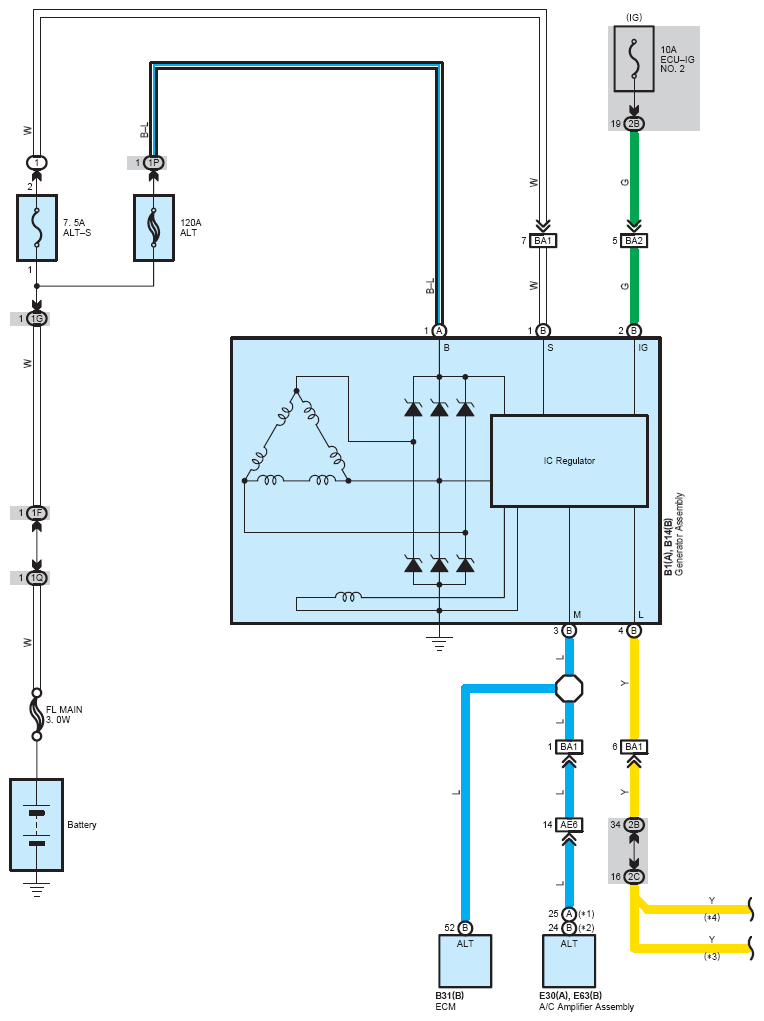

Fig 1: Charging (TMC Made) System Wiring Diagram (1 Of 2)
G07114970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

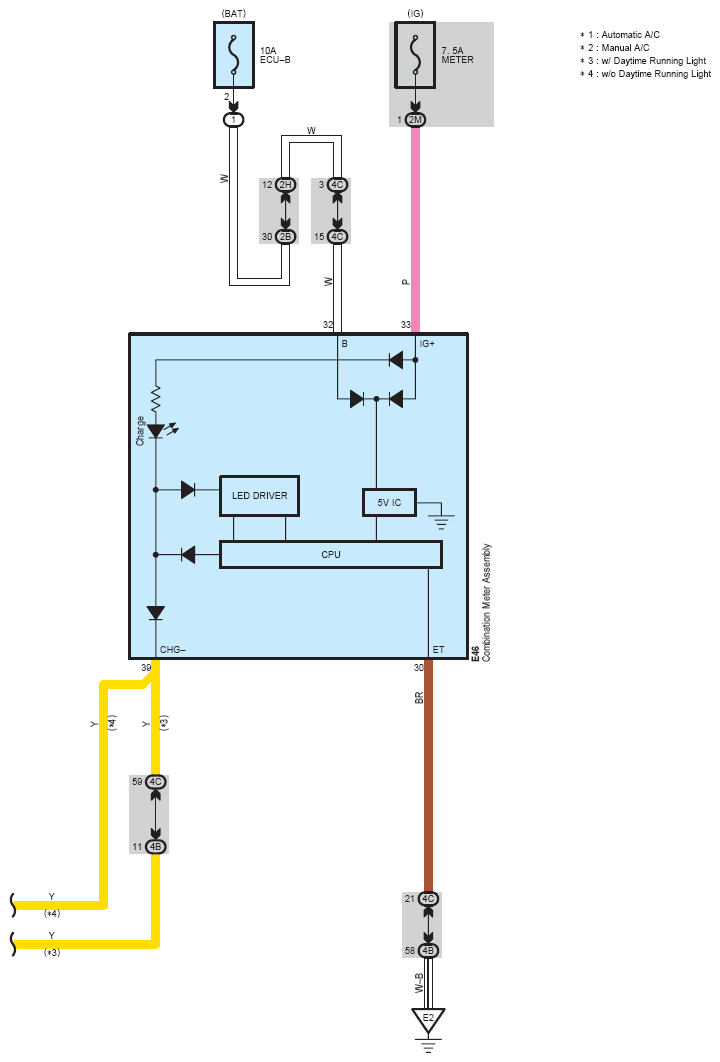

Fig 2: Charging (TMC Made) System Wiring Diagram (2 Of 2)
G07114971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
