Toyota
›
2011
›
Corolla Base, Automatic
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Cooling Fan (TMC Made)
›
Notes
Cooling Fan (TMC Made): Notes

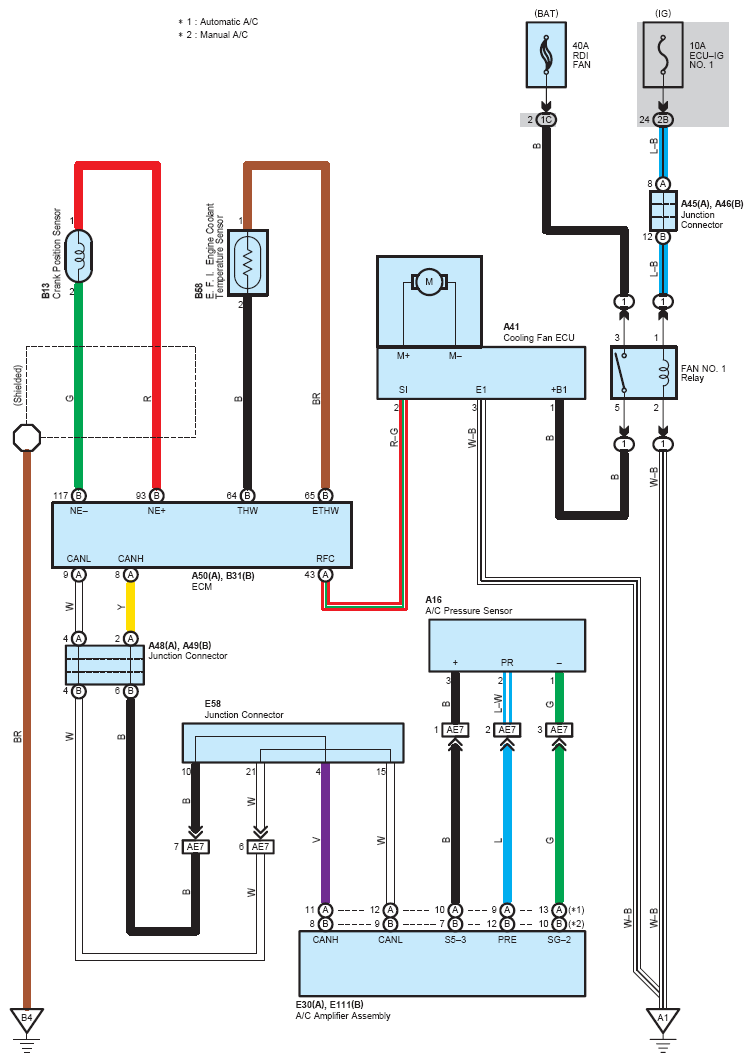

Fig 1: Cooling Fan (TMC Made) System Wiring Diagram
