Headlight (Except TMC Made): Notes

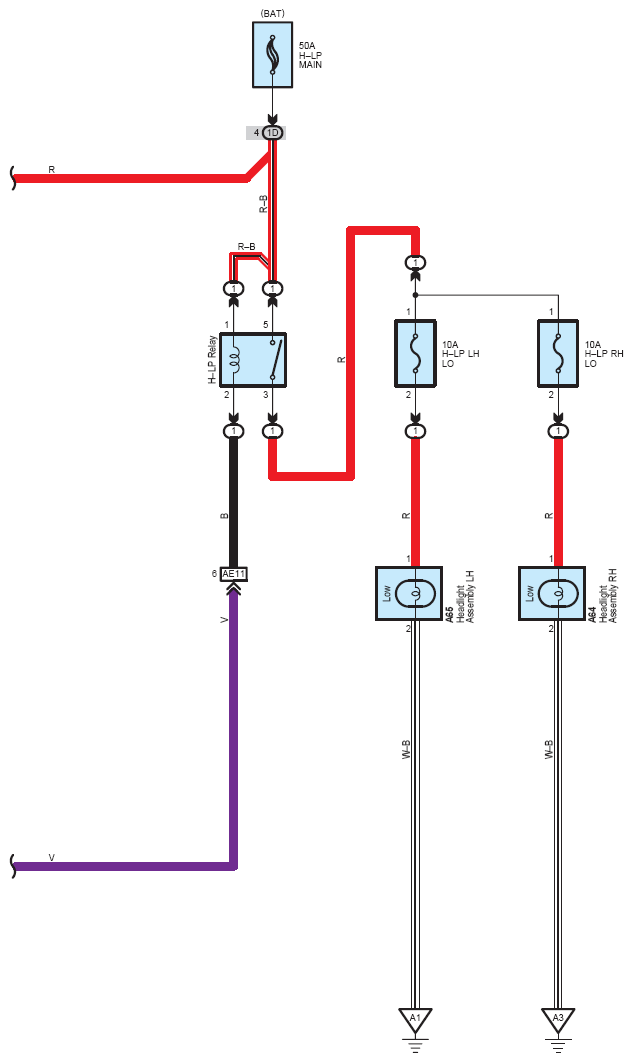

Fig 1: Headlight (Except TMC Made) System Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

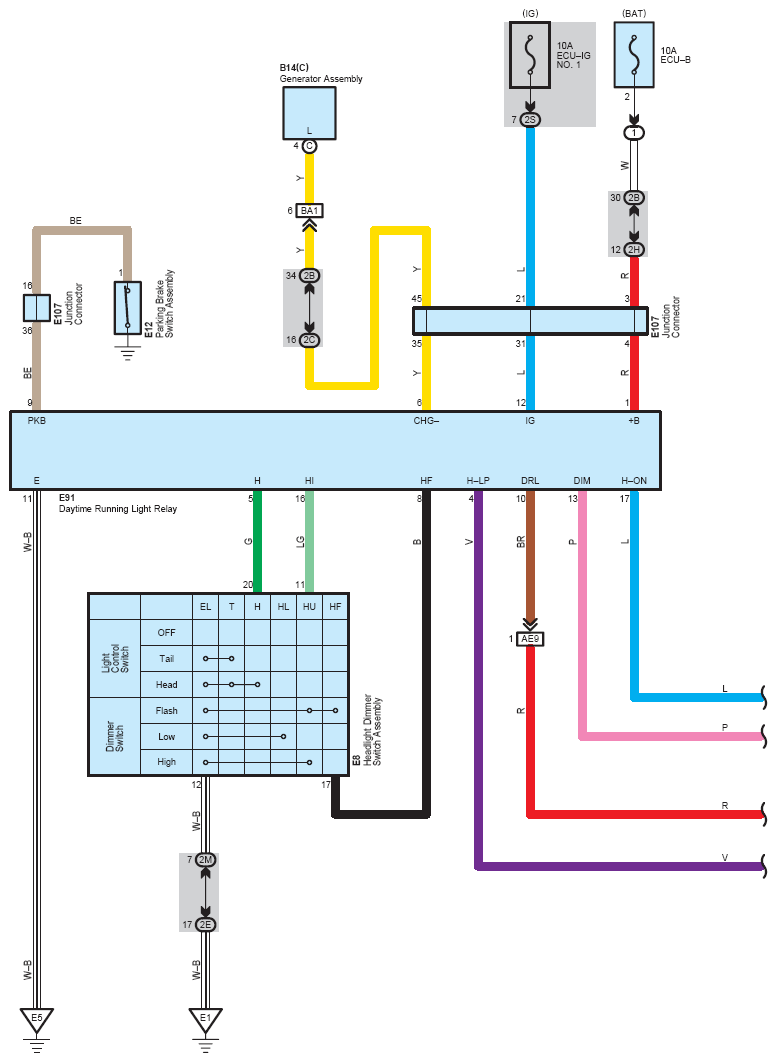

Fig 2: Headlight (Except TMC Made) System Wiring Diagram (2 Of 3)

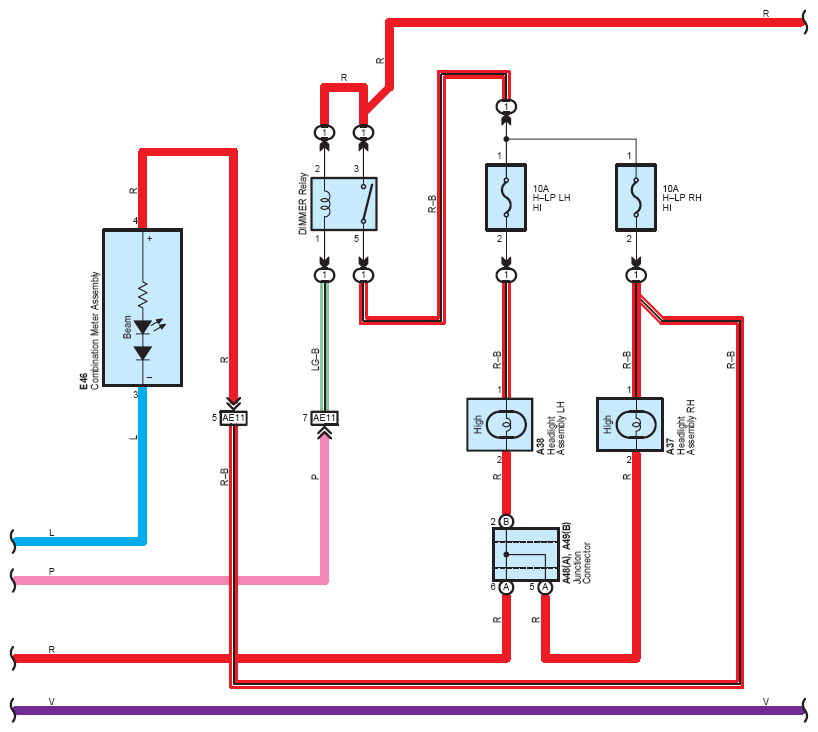

Fig 3: Headlight (Except TMC Made) System Wiring Diagram (3 Of 3)
