Key Reminder (w/o Smart Key System) (Except TMC Made): Notes

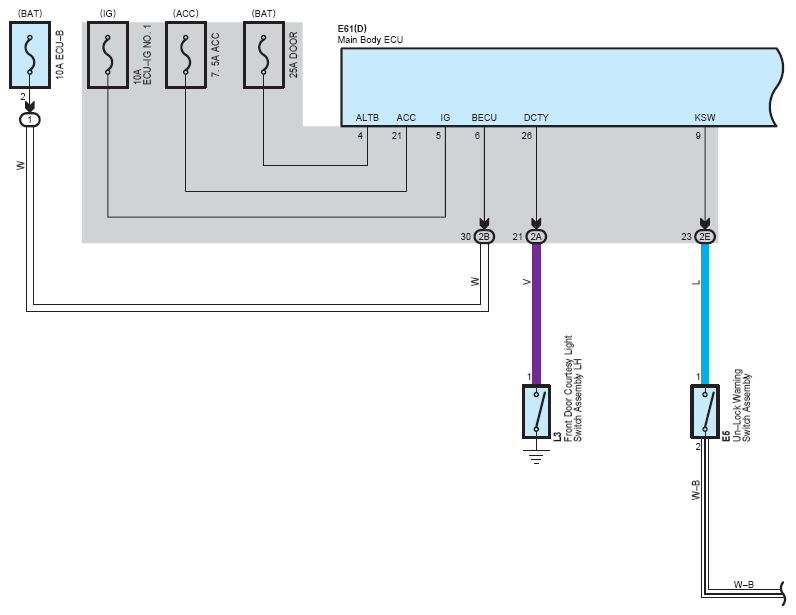

Fig 1: Key Reminder (w/o Smart Key System) (Except TMC Made) Wiring Diagram (1 Of 2)
G07115155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

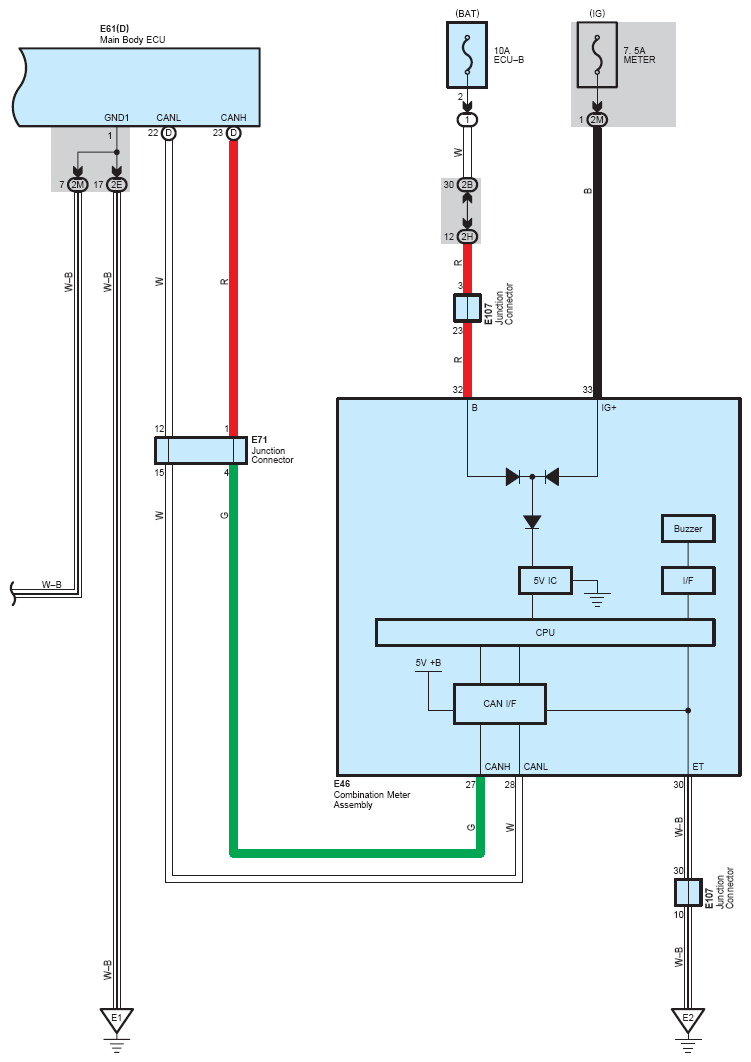

Fig 2: Key Reminder (w/o Smart Key System) (Except TMC Made) Wiring Diagram (2 Of 2)
G07115156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
