Power Source (TMC Made): Notes

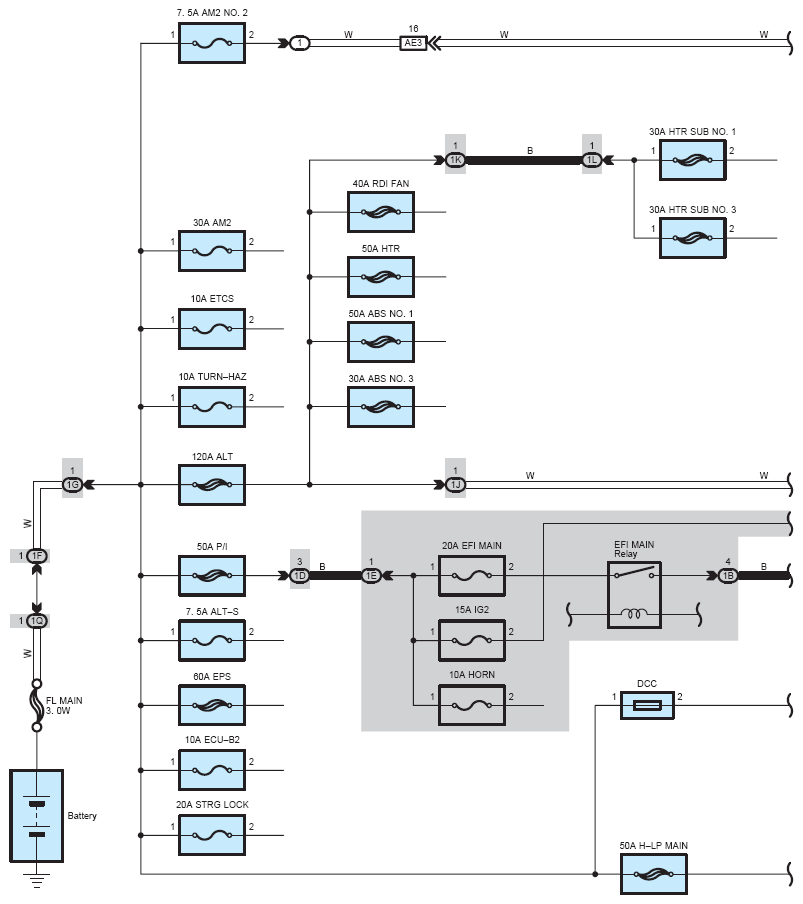

Fig 1: Power Source (TMC Made) System Wiring Diagram (1 Of 4)
G07114964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

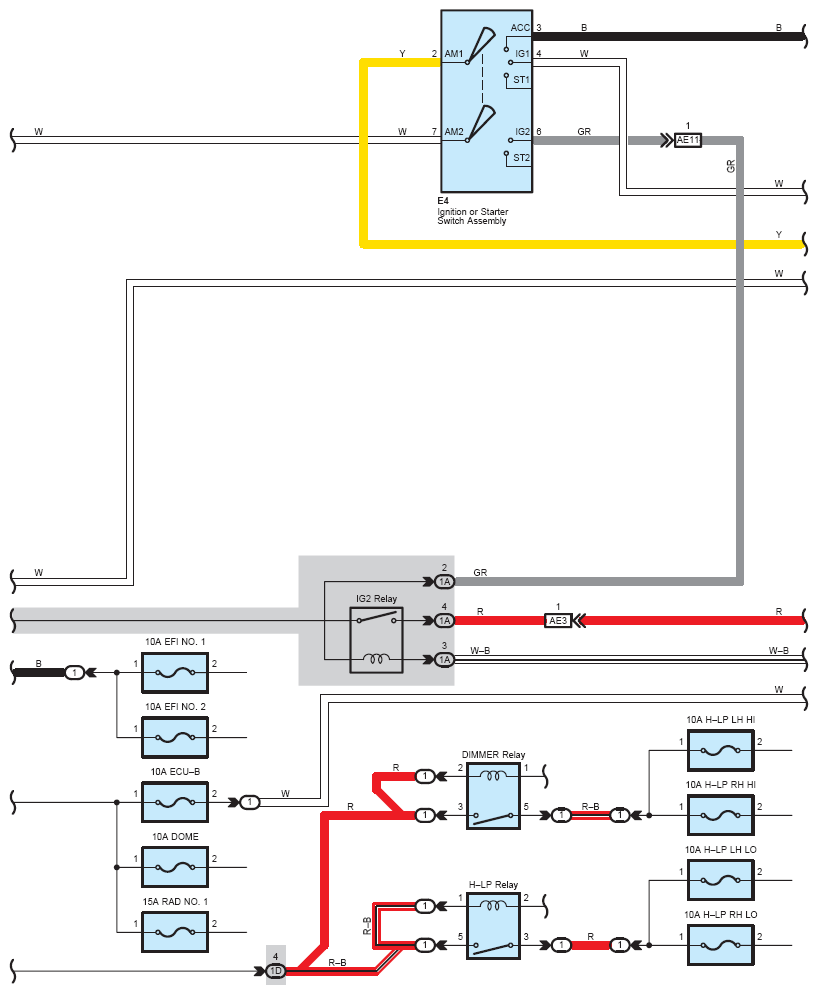

Fig 2: Power Source (TMC Made) System Wiring Diagram (2 Of 4)
G07114965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

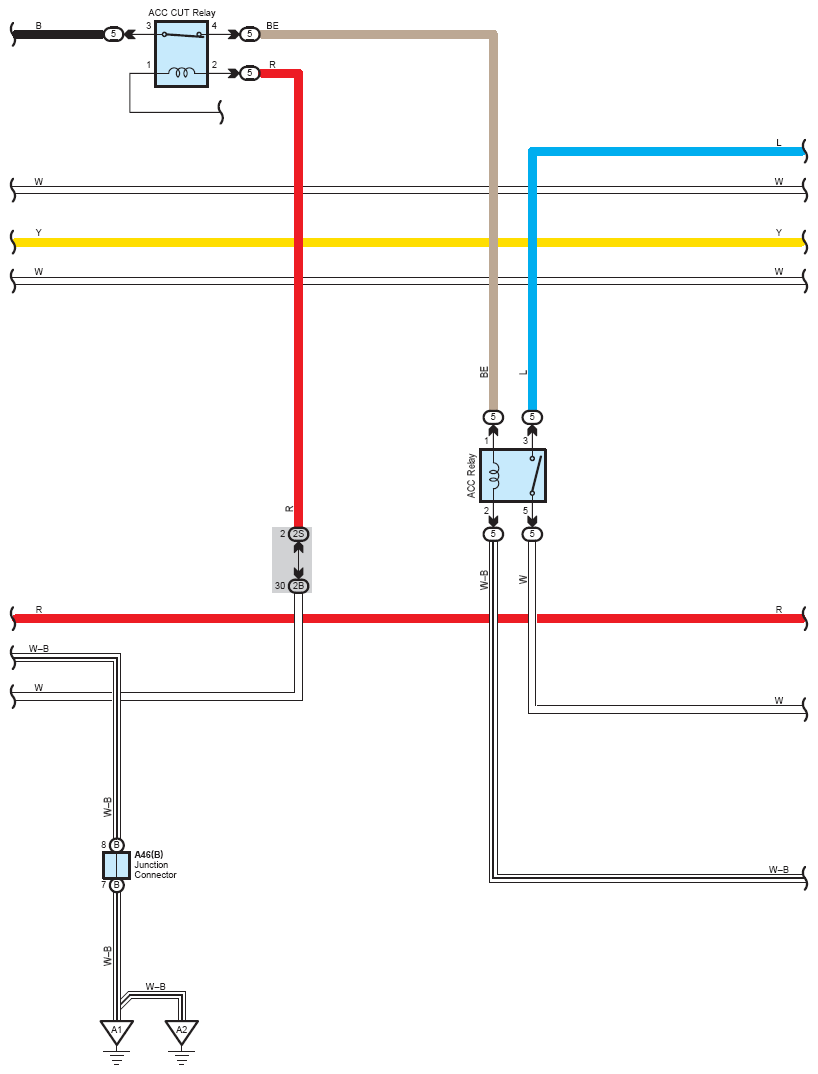

Fig 3: Power Source (TMC Made) System Wiring Diagram (3 Of 4)
G07114966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

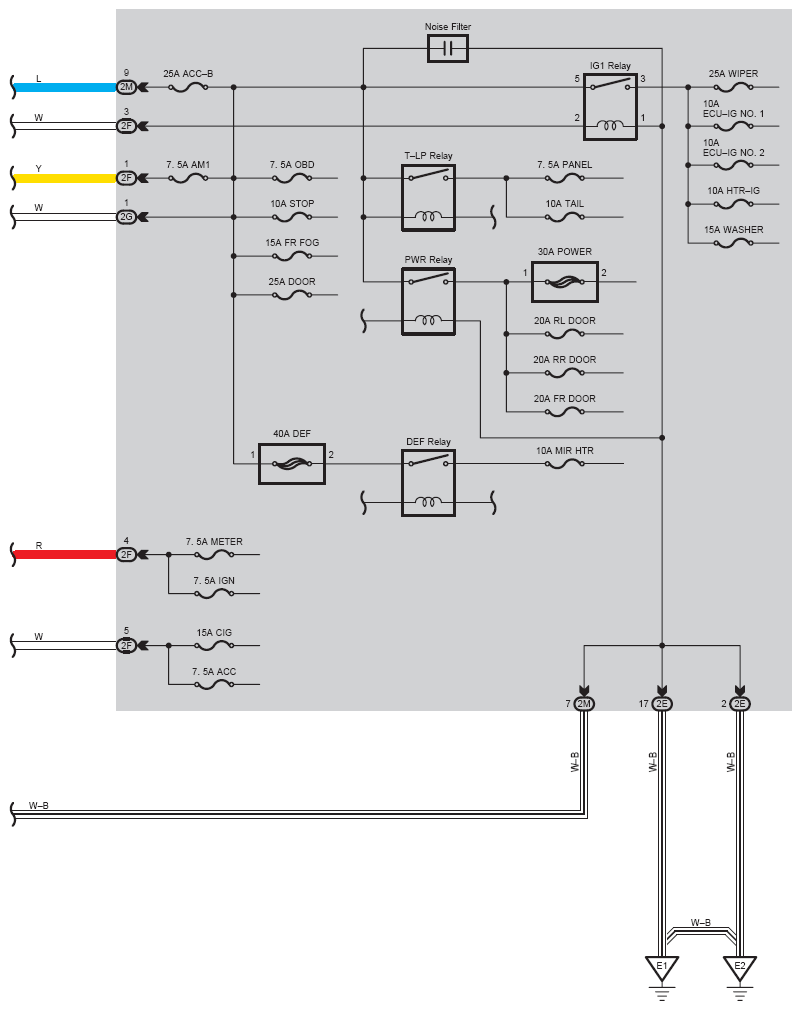

Fig 4: Power Source (TMC Made) System Wiring Diagram (4 Of 4)
G07114967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
