Power Window (TMC Made): Notes

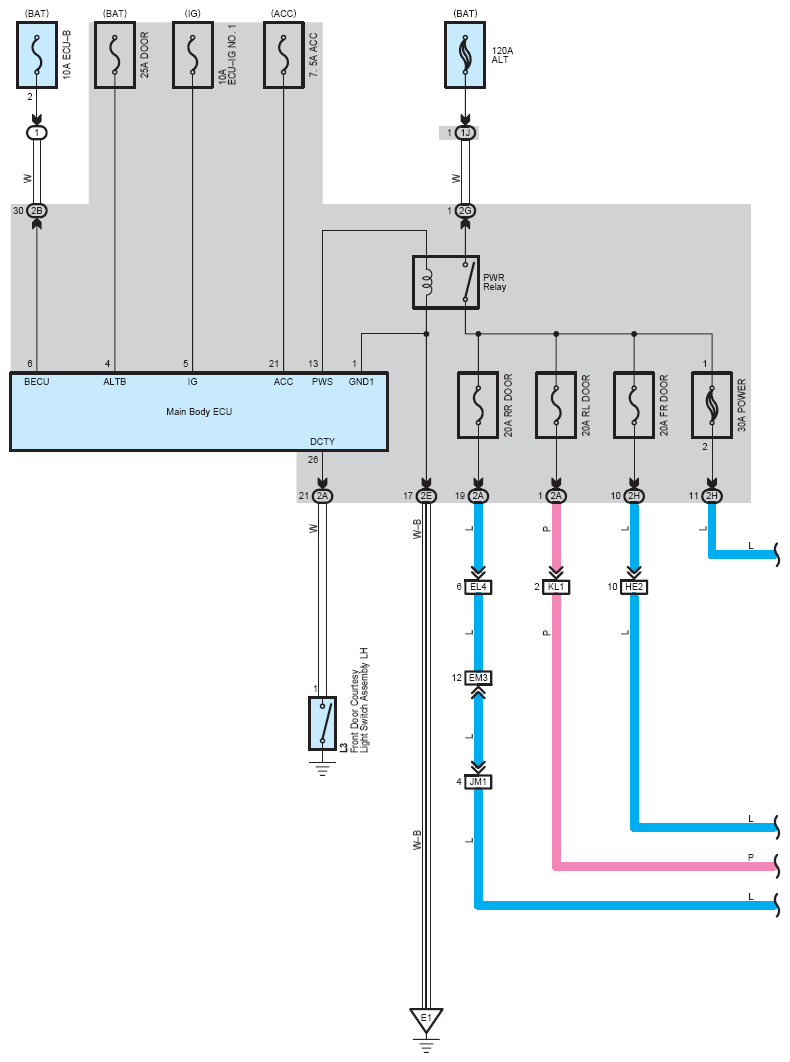

Fig 1: Power Window (TMC Made) System Wiring Diagram (1 Of 3)
G07115050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

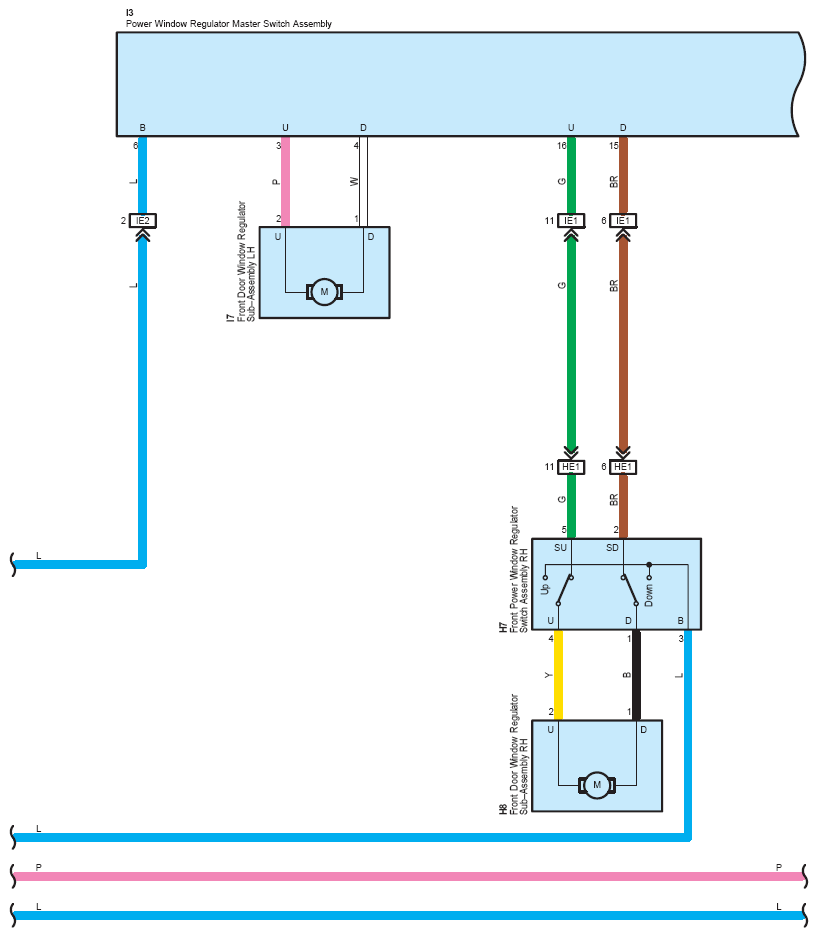

Fig 2: Power Window (TMC Made) System Wiring Diagram (2 Of 3)
G07115051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

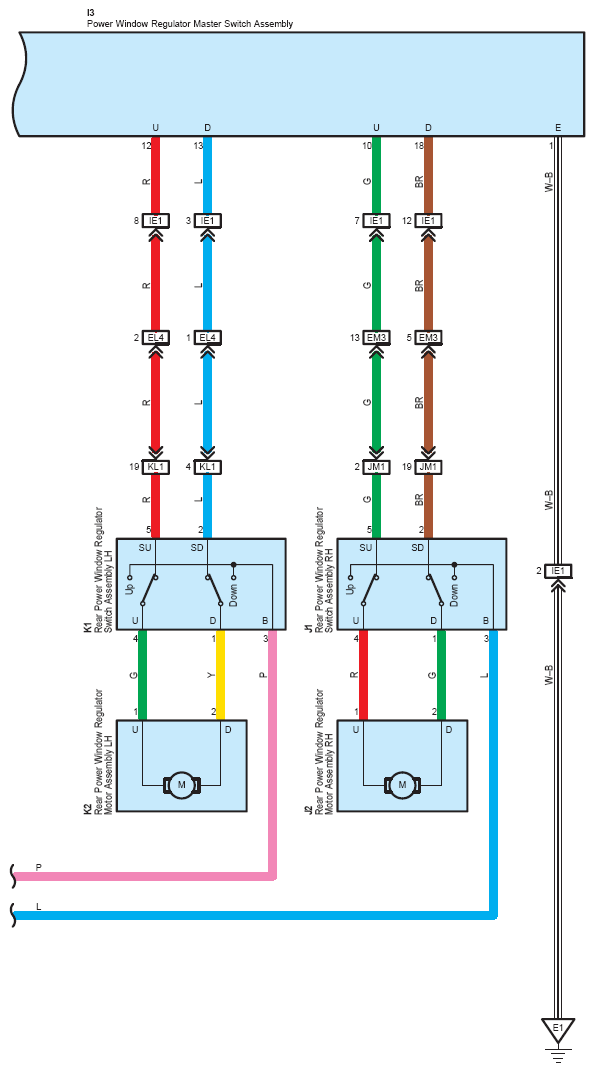

Fig 3: Power Window (TMC Made) System Wiring Diagram (3 Of 3)
G07115052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
