SRS (TMC Made): Notes — 2011 Toyota Corolla Base, Automatic Service Manual ~ FixVault

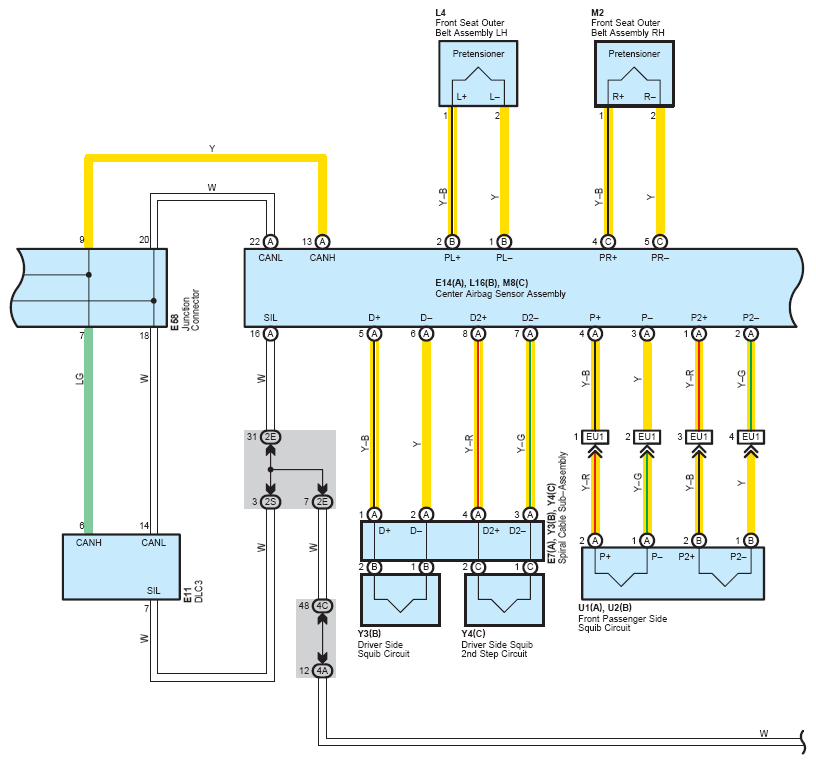

Fig 1: SRS (TMC Made) System Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

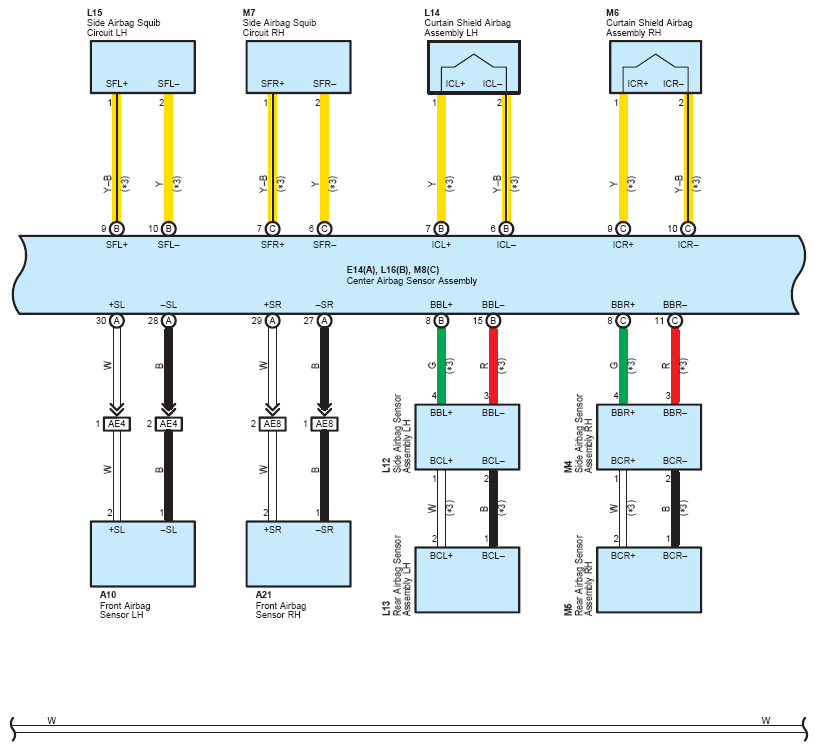

Fig 2: SRS (TMC Made) System Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

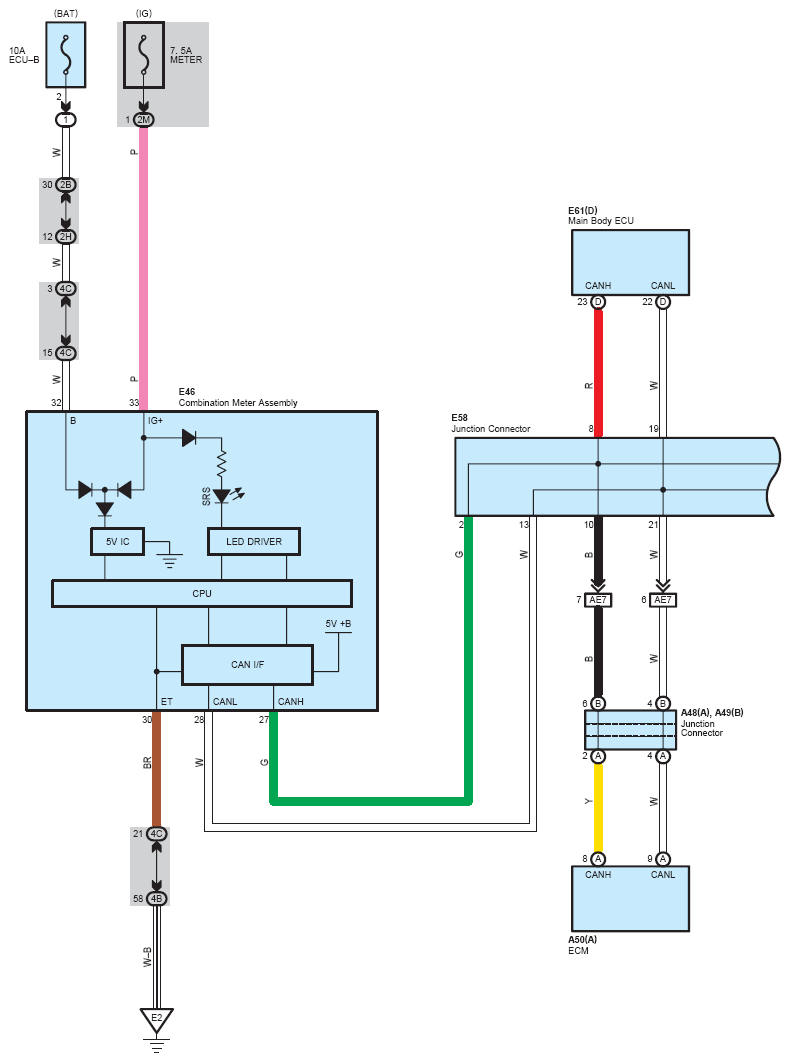

Fig 3: SRS (TMC Made) System Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

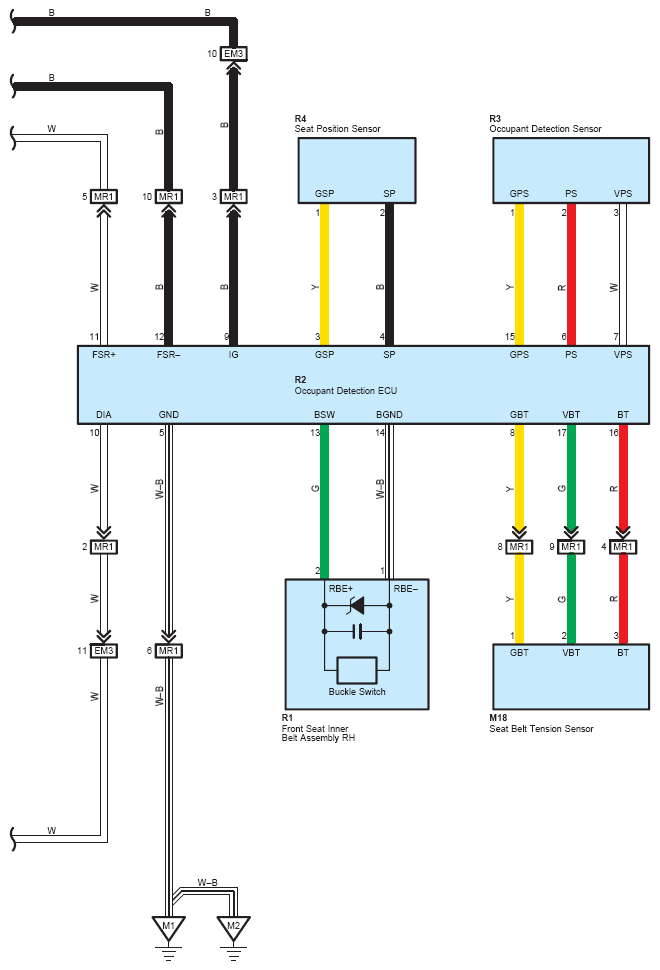

Fig 4: SRS (TMC Made) System Wiring Diagram (4 Of 5)

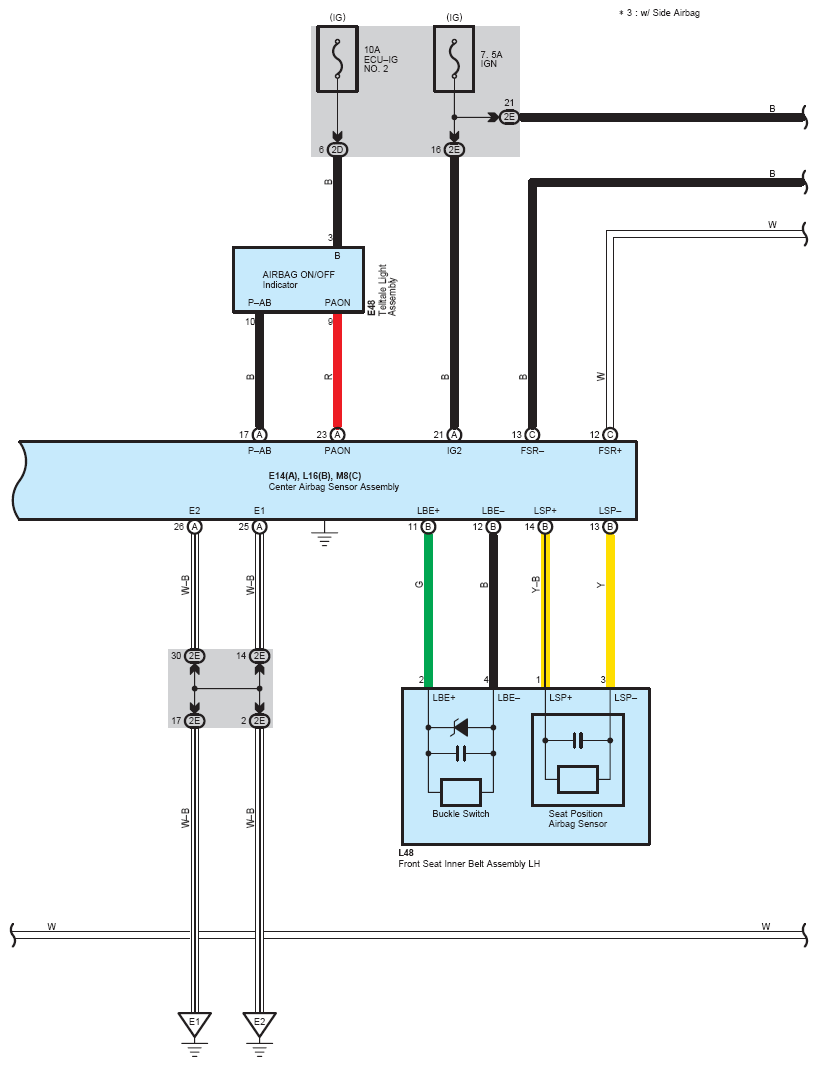

Fig 5: SRS (TMC Made) System Wiring Diagram (5 Of 5)
